- Page 2 Hi-Fi, multi-channel AV or fully integrated. Drawing directly on Monitor Audio’s 37 years at the leading edge of metal drive unit technology, the models in the Monitor Series have been designed to deliver nothing less than benchmark shattering performance, aesthetic appeal and finish.

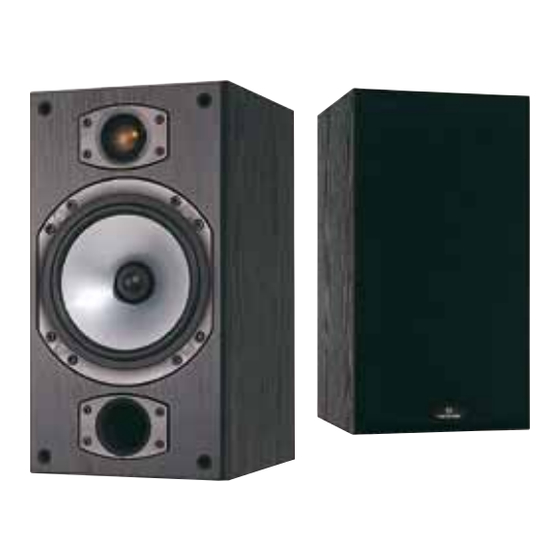

- Page 3 Monitor Audio’s 5.5-inch MMP II bass-mid driver ® and C-CAM tweeter are the keys to the M1’s exceptional ® performance and versatility in both stereo and multi-channel applications. The M2, is 2-way design intended for stand or shelf mounting. Its 6.5-inch MMP...
- Page 6 C-CAM tweeter. The lower unit handles ® deep bass, the other pair provide punchy upper bass and the signature Monitor Audio mid-band response. A beautifullly crafted rigid cabinet, 3-D contoured grilles and reflex port technology complete a worldclass...
- Page 7 Monitor series specification. Frequency Response 55Hz - 22kHz 42Hz - 22kHz Sensitivity (1W@1m) 88dB 90dB Nominal Impedance 6 ohms 6 ohms Power Handling Single 100W (RMS) Bass Alignment Rear ported bass reflex. Front ported bass reflex. 1 x 140mm (5 1/2”) 1 x 165mm (6 1/2”) II mid-bass driver II mid-bass driver...
- Page 8 Monitor Audio Ltd 24 Brook Road, Rayleigh Essex, SS6 7XJ England Tel: + 44 (0)1268 740580 Fax: + 44 (0)1268 740589 Designed in the United Kingdom...
