5.2.7 Top Margin Adjustment

By this adjustment, set the value of top margin.
1. By pressing the [Print] button, print the adjustment pattern on PPC55kg paper.

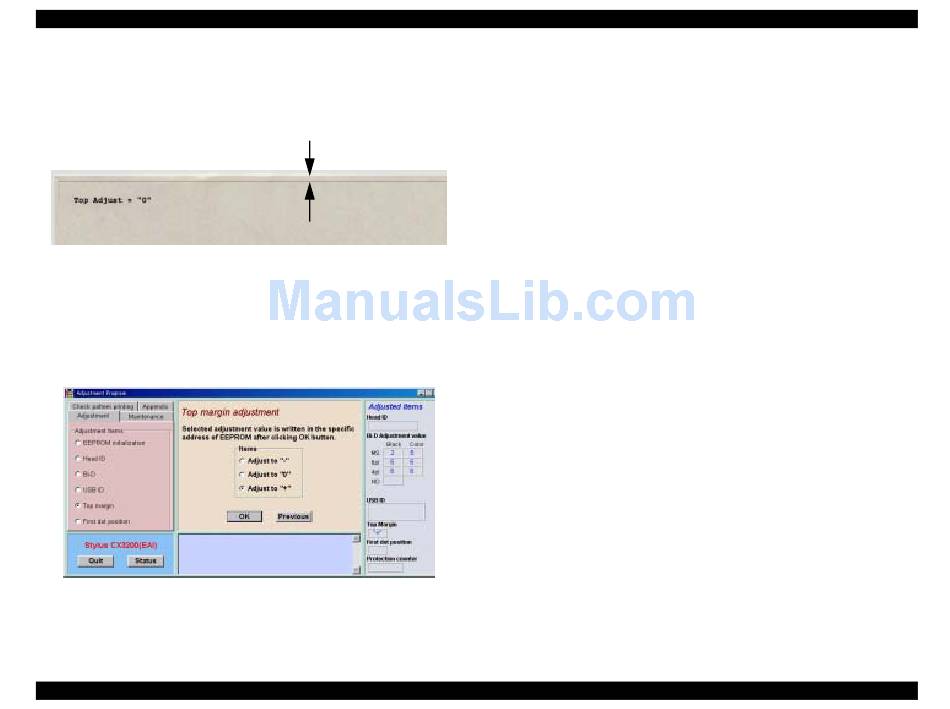

Figure 5-10. Top Margin Adjustment Pattern
2. Measure the distance (top margin: specified value 3 mm) from the front end of the
paper with the print pattern to the horizontal bar representing the printing start
position.
3. If the measured value is deviated from the specified value, select the [Adjust]
button to enter the adjustment mode.
Figure 5-11. Adjustment Mode
Adjustment
4. Select the desired one of the "+", "0" and "-" buttons and press the "OK" button for
setting. Select "+" to enlarge the margin or "-" to lessen it. Three levels are
available for selection.
5. Print the pattern again and check the top margin.
6. Determine the setting value so that the top margin as close to the specified value as
possible.
Adjustment by Adjustment Program
Revision A
