EPSON Stylus CX3100/3200
Installing the FFC Holder
C H E C K
P O I N T
Make certain that the Head FFC has been installed properly.

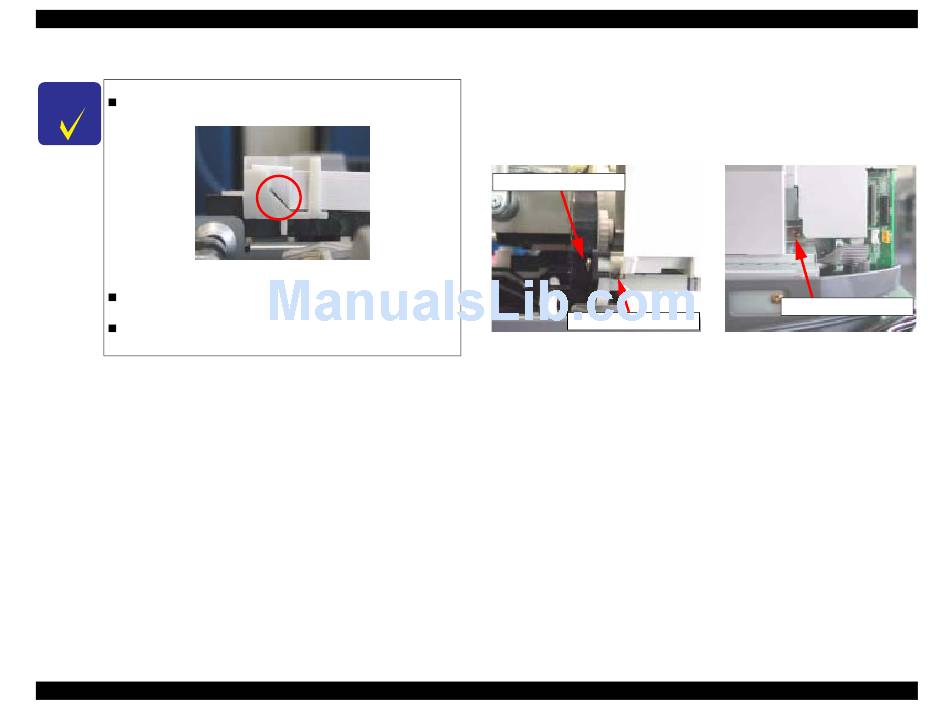

Figure 4-23. Installing the Head FFC
Make sure that the Head FFC is connected to the Print Head
properly.
Make sure that the FFC Holder is installed on the Carriage
Unit properly.
Disassembly and Assembly

4.4.3 ASF Unit Removal

1. Remove the Middle Housing. (See
2. Remove the three screws, namely, one C.B.P-Tite 3x6 F/Zn, one C.B.S-Tite(P4) 3x6
F/Zn and one C.B.P-Tite 3x8 F/Zn, which secure the ASF Unit to the printer
mechanism.
C.B.P-Tite 3x8 F/Zn
C.B.S-Tite 3x6 F/Zn
Figure 4-24. Removing the ASF Unit Securing Screws
3. Remove the ASF Unit.
NOTE: Screw tightening torque
C.B.P-Tite 3x8 F/Zn:0.5-0.7 Nm
C.B.S-Tite(P4) 3x6 F/Zn: 0.7-0.9 Nm
C.B.P-Tite 3x8 F/Zn: 0.7-0.9 Nm
Disassembly of Printer
Revision A
"Middle Housing Removal" on page 44.)
C.B.S-Tite 3x6 F/Zn
48
