Converter Box with Analog Pass Through
Digital sub channels
The increase data capacity of a digital signal lets
broadcasters fit several channels into the same
bandwidth as an analog signal. Broadcasters
may use these sub channels to transmit a variety
of information, such as weather forecasts,
foreign languages, or commercials.
A digital sub channel is indicated by the main
channel number followed by a dash and the sub
channel number. For example, 5-1 indicates sub
channel 1 of the main channel 5.

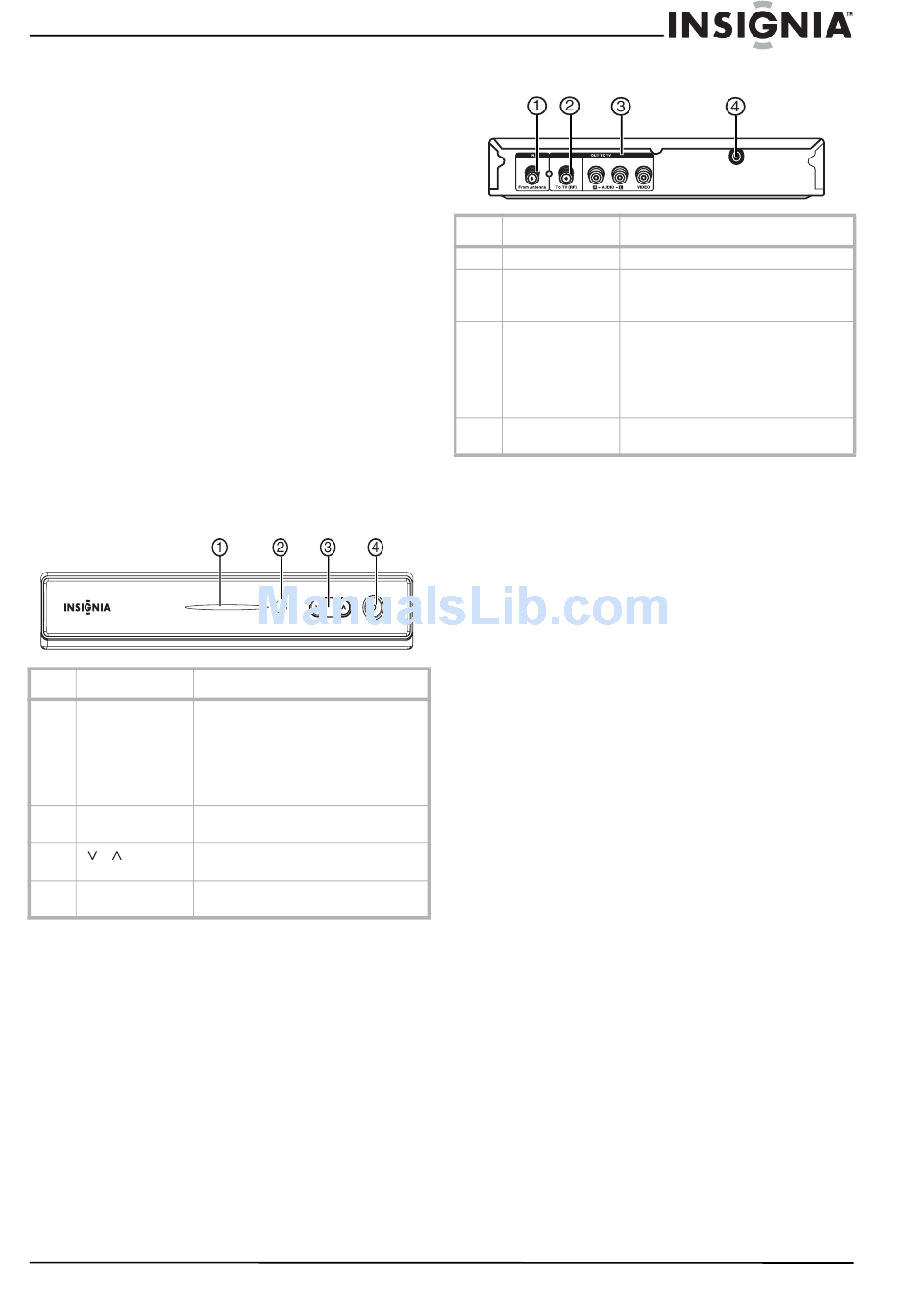

Features

Package contents

RF cable (1)
Video cable (1)
Audio (L/R) cable (1)
Remote control (1)
Battery (size AAA) (1)
Quick Start Guide (1)
User Guide (1)

Front

No.
Component
Description
1
Power indicator
Lights when your converter box is
turned on.
Red—Standby mode
Blue—On mode
Blinking—Receiving remote control
signal
2
Remote control
Receives signals from the remote
sensor
control. Do not block.
3
Press to scan through memorized
/
channels.
4
Power
Press to turn your converter box on or
off.

Back

No.
Component
1
From Antenna
2
To TV (RF)
3
R AUDIO
L AUDIO
VIDEO
4
Power cord
www.insignia-products.com
Description
Connect this jack to your antenna.
If your TV does not have A/V jacks,
connect this jack to the antenna IN jack
on your TV.
If your TV has A/V jacks, connect these
jacks to the corresponding jacks on
your TV. These jacks provide the best
audio and video. If your TV does not
have A/V jacks, connect your TV to the
To TV (RF) jack.
Plug this cord into a power outlet or
surge protector.
3
