Huffy Pro Image Rim Owner's Manual page 9

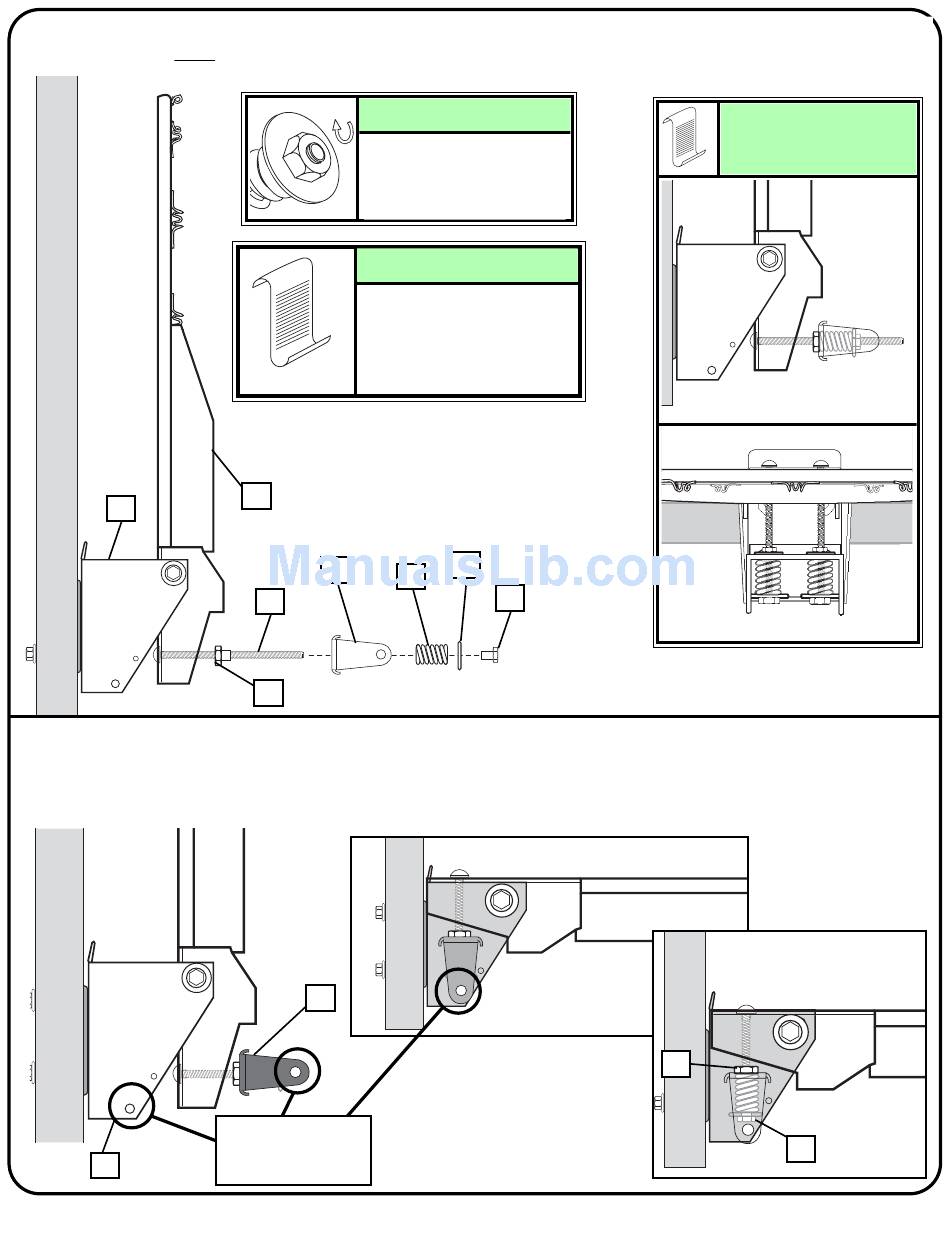

Position rim assembly (1) 90 degrees to back bracket (13) as shown. Place inner-bracket
6.
(14) over both carriage bolts (2) followed by springs (7), washers (8) and special nuts (21).
13
Lower lower rim down. Holes in inner bracket (14) should line up with holes in
7.
backboard bracket (13). If not, adjust special locknuts (20 & 22) until holes are aligned.
13
NOTE:
Tighten special nuts (21)
until flush with end of
carriage bolts (2)
NOTE:
Do not over tighten as rim
will not flex properly. See
leveling instructions (Step
11) to determine how much
to tighten nuts (20) and (21).
1
14
7
2
20
13
Align these
holes.
as shown.
8
21
9
NOTE:
COMPLETED
ASSEMBLY:
20
22
11/03 P/N 211644
