10 Sunnen Drive
St. Louis, MO 63143
telephone: 314-678-6336
fax: 314-781-2714
www.bloomfieldworldwide.com
E. B. C.™ Electronic Brew Control ™
E.B.C.™ brewers are protected under
U. S. Patent # 5, 704,275
Other U. S. and Canadian patents.
p/n 2M-
Rev. -
Z17088

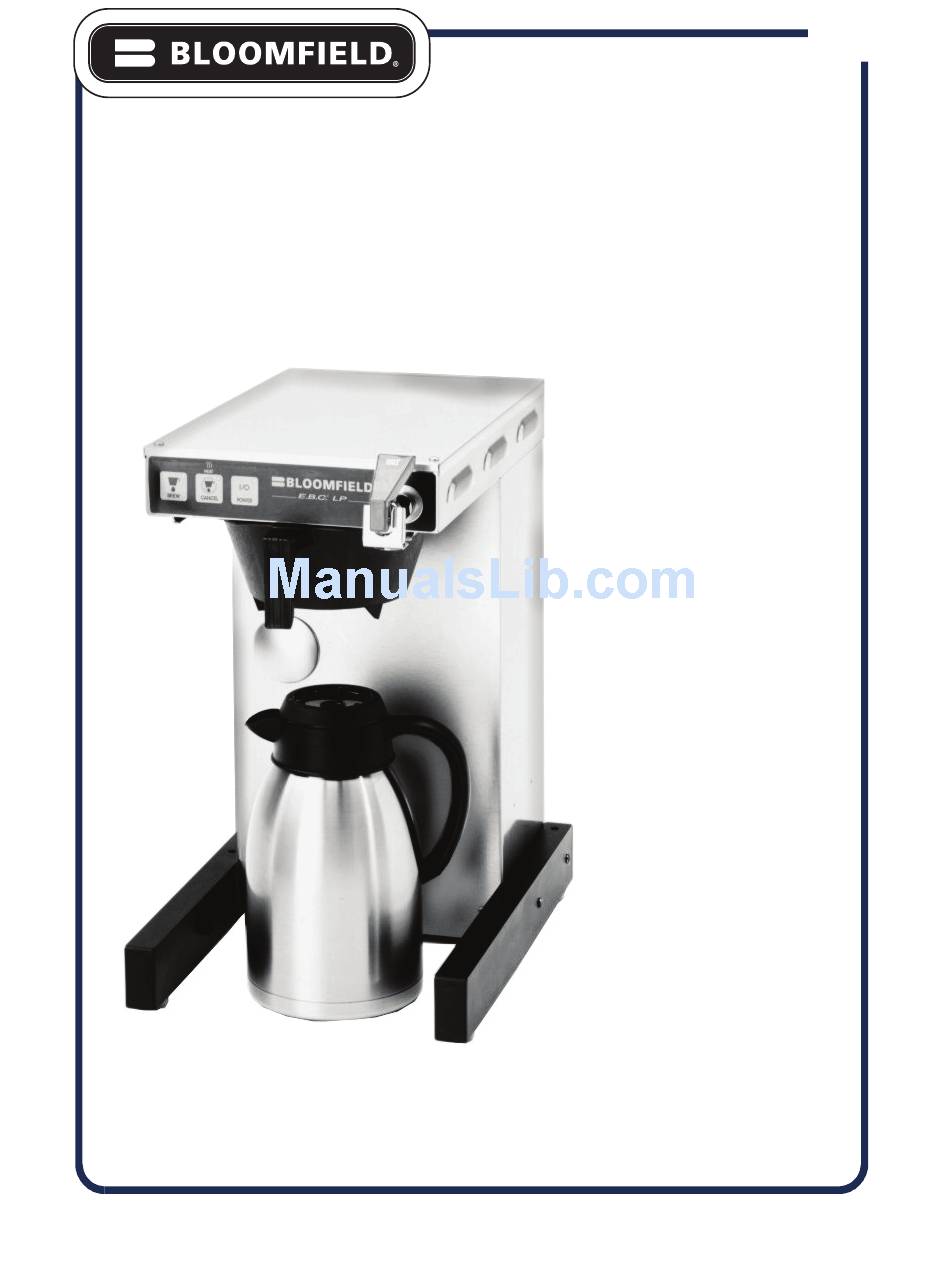

OWNERS MANUAL
for
LO-PROFILE
E.B.C.™ AIRPOT
BREWERS
MODELS
Instructions

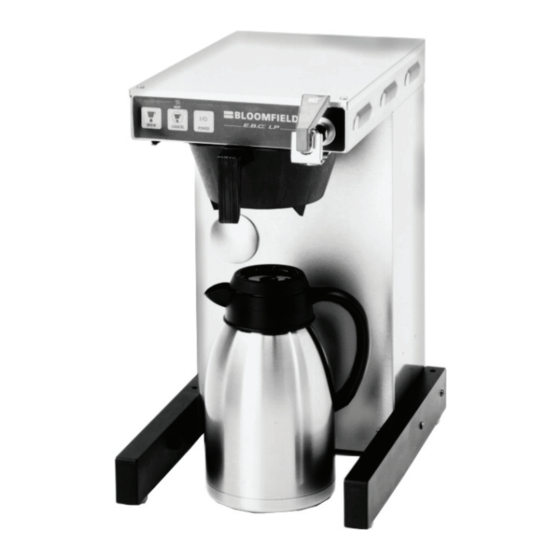

Model 1883
with optional
7874 Airpot
643
1883
and
1883CA
Includes:
Installation
Use & Care
Servicing
M643
1210
13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bloomfield 1883
Summary of Contents for Bloomfield 1883
- Page 1 BREWERS MODELS 1883 1883CA Includes: Installation Use & Care Servicing Instructions Model 1883 with optional 7874 Airpot E.B.C.™ brewers are protected under U. S. Patent # 5, 704,275 Other U. S. and Canadian patents. p/n 2M- Rev. - M643 1210...
-
Page 2: Warranty Statement
Bloomfield for its products are based upon the limitations in this warranty. Seller’s obligation under this warranty is limited to the repair of defects without charge by a Bloomfield Authorized Service Agency or one of its sub-agencies. This service will be provided on customer’s premises for non-portable models. -
Page 3: Table Of Contents
SPECIFICATIONS Model Style Volts Watts Amps Power Supply Cord 1883 1800 15.0 Airpot 120V NEMA 5-15P 1883CA 1500 12.0 CA = Canadian Standards APPLICABILITY This manual applies to the following Bloomfield Industries E. B. C. products: ® 1883 1883CA... -
Page 4: Features & Operating Controls
FEATURES AND OPERATING CONTROLS AIRPOT BREWER CONTROL PANEL HOT WATER FAUCET POWER BREW CORD CHAMBER AIRPOT (BREWING POSITION) BREW HEAD (BREW CHAMBER REMOVED) BREW / BREW WAIT INDICATOR BREW HEAT INDICATOR NOZZLE POWER INDICATOR SPRAY HEAD GASKET SPRAY DISK TIMER ACCESS “BREW”... -
Page 5: Precautions & General Information
PRECAUTIONS AND GENERAL INFORMATION ELECTRIC SHOCk HAzARD WARNING: All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. INjURY HAzARD WARNING: All installation procedures must be performed by qualified personnel with full knowledge of all... -
Page 6: Installation Instructions
The provided water line strainer must be installed in the supply Bloomfield recommends 1/4” line, between the shutoff valve and inlet fitting. Note FLOW copper tubing for installation of arrow marking on strainer body. - Page 7 Models 1883 and 1883CA are equipped with a cord and plug. you are ready to fill the tank. They require a 115 - 125 volt 20 amp circuit (50/60 Hz, 2 wire See instructions at left.
-
Page 8: Operation
OPERATION FAUCET OUTLET FAUCET COPPER TUBE SHUT-OFF VALVE FAUCET SUPPLY BRAIDED HOSE FILL TUBE SILICONE IL2684 INLET FITTING Fig. 3 Brewer Operation Diagram IMPORTANT: START-UP For initial start-up, or if the brewer has not been used for an Tank must be full of water extended period of time: before pressing POWER key “on”. -
Page 9: Water Heater
OPERATION (continued) WATER HEATER Water temperature is sensed by an electronic water temperature probe inserted into the water tank. This temperature signal is fed to the controller. The setpoint temperature is adjustable. The controller sends a command signal to the power board based upon a comparison between the setpoint temperature and actual temperature. -
Page 10: Brewing Coffee
BREWING COFFEE A. PREPARATION CAUTION: BURN HAzARD PAPER Place one (1) genuine Bloomfield FILTER Exposed surfaces paper filter in the brew chamber. of the brewer, brew Add a pre-measured amount of chamber and airpot may be fresh coffee grounds. Gently shake... -
Page 11: Cleaning Instructions
CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer CAUTION: BURN HAzARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Brewing and serving temperatures of coffee are Daily extremely hot. FREqUENCY: Hot coffee will cause Mild Detergent, Clean Soft Cloth or Sponge serious skin burns. -
Page 12: Troubleshooting Suggestions
Repair/replace as needed Coffee level too high or low Timer out of adjustment Adjust controller Too many filter papers or wrong Use one (1) genuine Bloomfield filter filter paper per brew Brew chamber dispense hole Brew chamber overflows Thoroughly clean brew chamber... -
Page 13: Servicing Instructions
SERVICING INSTRUCTIONS ACCESS PANELS CAUTION: ELECTRIC SHOCK TOP PANEL: HAzARD Remove top panel to access hot water tank, thermo probe, heating elements, brew circuit tubing, faucet valve and piping. Opening access panels or Top panel is held by two screws at the front and a retaining lip at removing warmer plates on this the rear. - Page 14 SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT CAUTION: Unplug power cord or turn circuit breaker OFF. Remove top ELECTRIC SHOCK panel. Remove button plug from front panel. HAzARD These procedures involve exposed electrical circuits. REMOVE PLUG, These procedures are to INSERT DIAL-TYPE THERMOMETER be performed by qualified IN HOLE...
- Page 15 SERVICING INSTRUCTIONS (continued) IMPORTANT: Water pressure SOLENOID TIME ADJUSTMENT The amount of water dispensed automatically during a brew cycle must be between 20 p.s.i and is controlled by the SOLENOID TIME section of the controller. 90 p.s.i. flowing pressure. If water pressure exceeds this Place empty airpot under brew chamber.
- Page 16 SERVICING INSTRUCTIONS (continued) SOLENOID REPLACE SOLENOID STRAINER Unplug power cord. Turn OFF and disconnect water supply from (note orientation DO NOT REVERSE) brewer inlet fitting. WASHER INLET Remove front panel. Remove two screws holding access door in FITTING place. Remove access door and solenoid. Unscrew inlet fitting cap to release solenoid from door.
- Page 17 SERVICING INSTRUCTIONS (continued) KEYPAD REPLACE CONTROLLER RIBBON Unplug power cord OFF. CABLE Remove front panel. Remove timer faceplate. Disconnect keypad ribbon cable (note position “1”), temperature probe and TEMP power board cable. PROBE POWER Reassemble in reverse order. Be sure all jumpers are remove BOARD from the replacement controller.
-
Page 18: Deliming Instructions
SERVICING INSTRUCTIONS (continued) PROCEDURE: Delime the Water Tank CAUTION: CHEMICAL BURN PRECAUTIONS: Disconnect brewer from electric power. HAzARD Allow brewer to cool. Deliming chemicals may be caustic. FREQUENCY: As required (Brewer slow to heat) Wear appropriate protective TOOLS: Deliming Solution gloves and goggles during this Protective Gloves, Goggles &... - Page 19 Make sure the gasket is properly in place, hoses do not need to be then reinstall lid clamps. delimed. Should deliming hoses become necessary, Bloomfield 8. Reinstall wiring to heating element and thermostat. recommends replacing the Reassemble piping for the faucet. Verify that all internal hoses.
-
Page 20: Exploded View & Parts List
MODEL 1883: EXPLODED VIEW & PARTS LIST Model: 1883 Airpot Brewer SK2700, Rev. B 12/09/2013... - Page 21 MODEL 1883: EXPLODED VIEW & PARTS LIST Model: 1883 Lo-Profile E.B.C. Airpot Brewer Model: 1883 Lo-Profile E.B.C. Airpot Brewer 2A-43201 SPACER, 3/8” DIA x 5/16 Fig No. Part No. Description App. 2J-73644 PROBE, TEMP 5-1/2” WITH NUT Fig No. Part No.
- Page 22 EXPLODED VIEW & PARTS LIST (continued) IL2689 SERVICE KITS; FAUCET REPAIR KITS WS-82573 Handle (item 12a) WS-82575 Seat Cup (item 12c) Faucet Repair kit (Includes 12a Handle, 12c Seat Cup, 12d Spring, 12h Stem, 12j WS-82576 Pin & 12k Bonnet WS-82682 Retainer Clip (item 12b) WS-84804...
-
Page 23: Wiring Diagrams
WIRING DIAGRAM E.B.C. LO-PROFILE BREWER Model Volts Watts Amps 1883 1800 15.0 1883CA 1500 12.5... - Page 24 10 Sunnen Drive, St. Louis, MO 63143 telephone: 314-678-6336 fax: 314-781-2714 www.bloomfieldworldwide.com...
