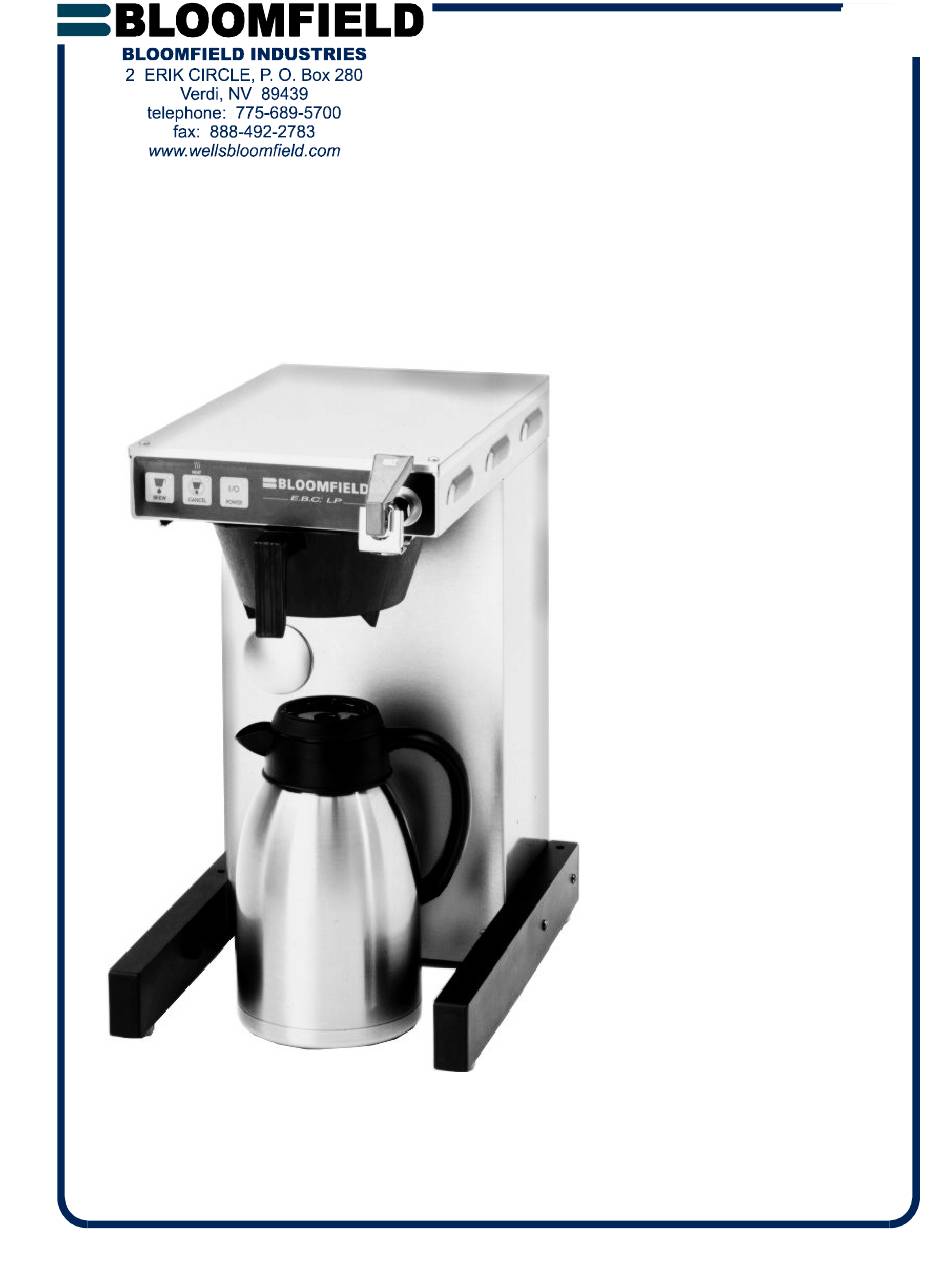

E. B. C.™ Electronic Brew Control ™
E.B.C.™ brewers are protected under
U. S. Patent # 5, 704,275
Other U. S. and Canadian patents pending.
75786
p/n
Rev. C ECN-12681
OWNERS MANUAL
for

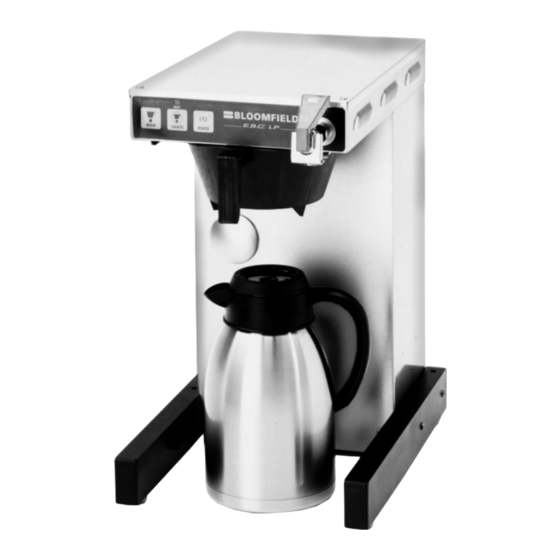

Model 1882
with optional
7874 Airpot
LO-PROFILE
E.B.C.™ AIRPOT
BREWERS
MODELS
1882
1882CA
Includes:
Installation
Use & Care
Servicing
Instructions
04
M643
0503 cps
643
and
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bloomfield 1882CA
Summary of Contents for Bloomfield 1882CA
- Page 1 OWNERS MANUAL E. B. C.™ Electronic Brew Control ™ LO-PROFILE E.B.C.™ AIRPOT BREWERS MODELS 1882 1882CA Includes: Installation Use & Care Servicing Instructions Model 1882 with optional 7874 Airpot E.B.C.™ brewers are protected under U. S. Patent # 5, 704,275 Other U.
-
Page 2: Warranty Statement
The prices charged by Bloomfield Industries for its products installation or eighteen (18) months from the date of shipment are based upon the limitations in this warranty. -
Page 3: Table Of Contents
WIRING DIAGRAMS SPECIFICATIONS POWER SUPPLY MODEL STYLE VOLTS 1ø WATTS AMPS 1ø CORD 1882 1800 15.0 AIRPOT NEMA 5-15P 1882CA 1500 12.0 Meets Canadian standards APPLICABILITY ® This manual applies to the following Bloomfield Industries E. B. C. products: 1882 1882CA... -
Page 4: Features & Operating Controls
FEATURES AND OPERATING CONTROLS Fig. 1 Features & Operating Controls... -
Page 5: Precautions & General Information
PRECAUTIONS AND GENERAL INFORMATION WARNING: ELECTRIC SHOCK HAZARD All servicing requiring access to non-insulated components must be performed by qualified service personnel. Do not open any access panels which require the use of tools. Failure to heed this warning can result in electrical shock. WARNING: INJURY HAZARD All installation procedures must be performed by qualified personnel with full knowledge of all... -
Page 6: Installation Instructions
1/4-turn ball valve, to avoid loss of water flow thru the operation of the brewer. valve. Bloomfield recommends 1/4" The provided water line strainer must be installed in the supply copper tubing for installation of line, between the shutoff valve and inlet fitting. Note FLOW less than 12 feet and 3/8"... - Page 7 Models 1882 and 1882CA are equipped with a cord and plug. See instructions at left. They require a 115 - 125 volt 20 amp circuit (50/60 Hz, 2 wire plus ground, with NEMA 5-15R or 5-20R Receptacle).
-
Page 8: Operation
OPERATION Fig. 3 Brewer Operation Diagram IMPORTANT: A. START-UP Tank must be full of water For initial start-up, or if the brewer has not been used for an before pressing POWER extended period of time: key " ". Heating elements will be damaged ♦... - Page 9 OPERATION (continued) WATER HEATER Water temperature is sensed by an electronic water temperature probe inserted into the water tank. This temperature signal is fed to the controller. The setpoint temperature is adjustable. The controller sends a command signal to the power board based upon a comparison between the setpoint temperature and actual temperature.
-
Page 10: Brewing Coffee
BREWING COFFEE CAUTION: A. PREPARATION BURN HAZARD Place one (1) genuine Bloomfield paper filter in the brew chamber. Exposed surfaces of the Add a pre-measured amount of brewer, brew chamber and fresh coffee grounds. airpot may be HOT to the... -
Page 11: Cleaning Instructions
CLEANING INSTRUCTIONS PROCEDURE: Clean Coffee Brewer CAUTION: BURN HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Brewing and serving temperatures of coffee are FREQUENCY: Daily extremely hot. Hot coffee will cause TOOLS: Mild Detergent, Clean Soft Cloth or Sponge serious skin burns. -
Page 12: Troubleshooting Suggestions
Repair/replace as needed Coffee level too high or low Timer out of adjustment Adjust controller Brew chamber overflows Too many filter papers or wrong Use one (1) genuine Bloomfield filter paper filter per brew Brew chamber dispense hole Thoroughly clean brew plugged... -
Page 13: Servicing Instructions
SERVICING INSTRUCTIONS ACCESS PANELS CAUTION: ELECTRIC SHOCK TOP PANEL: HAZARD Remove top panel to access hot water tank, thermo probe, Opening access panels or heating elements, brew circuit tubing, faucet valve and piping. removing warmer plates on this Top panel is held by two screws at the front and a retaining lip at brew may expose uninsulated the rear. - Page 14 SERVICING INSTRUCTIONS (continued) TEMPERATURE ADJUSTMENT CAUTION: ELECTRIC SHOCK Unplug power cord or turn circuit breaker OFF. Remove top HAZARD panel. Remove button plug from front panel. These procedures involve exposed electrical circuits. These procedures are to be performed by qualified technical personnel only.
- Page 15 SERVICING INSTRUCTIONS (continued) IMPORTANT: Water pressure SOLENOID TIME ADJUSTMENT must be between 20 p.s.i and The amount of water dispensed automatically during a brew cycle 90 p.s.i. flowing pressure. is controlled by the SOLENOID TIME section of the controller. If water pressure exceeds this value, or if water pressure Place empty airpot under brew chamber.
- Page 16 SERVICING INSTRUCTIONS (continued) REPLACE SOLENOID Unplug power cord. Turn OFF and disconnect water supply from brewer inlet fitting. Remove front panel. Remove two screws holding access door in place. Remove access door and solenoid. Unscrew inlet fitting cap to release solenoid from door. Remove wiring from solenoid.
- Page 17 SERVICING INSTRUCTIONS (continued) REPLACE CONTROLLER Unplug power cord OFF. Remove front panel. Remove timer faceplate. Disconnect keypad ribbon cable (note position “1”), temperature probe and power board cable. Reassemble in reverse order. Be sure all jumpers are remove from the replacement controller. Adjust controller as described on page 12 &...
-
Page 18: Deliming Instructions
SERVICING INSTRUCTIONS (continued) CAUTION: PROCEDURE: Delime the Water Tank CHEMICAL BURN HAZARD PRECAUTIONS: Disconnect brewer from electric power. Allow brewer to cool. Deliming chemicals may be caustic. FREQUENCY: As required (Brewer slow to heat) Wear appropriate protective gloves and goggles during this TOOLS: Deliming Solution procedure. - Page 19 Should deliming hoses become necessary, 8. Reinstall wiring to heating element and thermostat. Bloomfield recommends Reassemble piping for the faucet. Verify that all internal replacing the hoses. components are dry, then reinstall the top panel.
-
Page 20: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST... - Page 21 PART NO. DESCRIPTION ITEM PART NO. DESCRIPTION 8706-75 PLUG, BUTTON 2” 8043-8 ELBOW, INLET 8551-100B WASHER, FAUCET, SEMS 7/16EXT 8043-14 ELEMENT, 120V, 1500W 1882CA 8780-18 ELEMENT, 120V, 1800W 1882 8540-3 TUBE, WATER INLET 8043-12 GASKET TANK COVER 82556 FAUCET ASSEMBLY...
- Page 22 EXPLODED VIEW & PARTS LIST (continued) SERVICE KITS FAUCET REPAIR KITS 82573 Handle (item 12a) 82575 Seat Cup (item 12c) 82576 Faucet Repair Kit (Includes 12a Handle, 12c Seat Cup, 12d Spring, 12h Stem, 12j Pin & 12k Bonnet 82682 Retainer Clip (item 12b) 84804 Aerator Replacement Kit (Includes 12e O-Ring, 12f Aerator Disk &...
-
Page 23: Wiring Diagrams
WIRING DIAGRAM MODEL VOLTS WATTS AMPS 1882 1800 15.0 1882CA 1500 12.5... - Page 24 Bloomfield Industries proudly supports CFESA Commercial Food Equipment Service Association Bloomfield Industries, Inc. Division of Carrier Commercial Refrigeration In US and Canada Telephone: 775-689-5700 Fax: 888-492-2783 Fax: 800-356-5142 ( for orders only website: www.wellsbloomfield.com...
