Page 1: User Manual

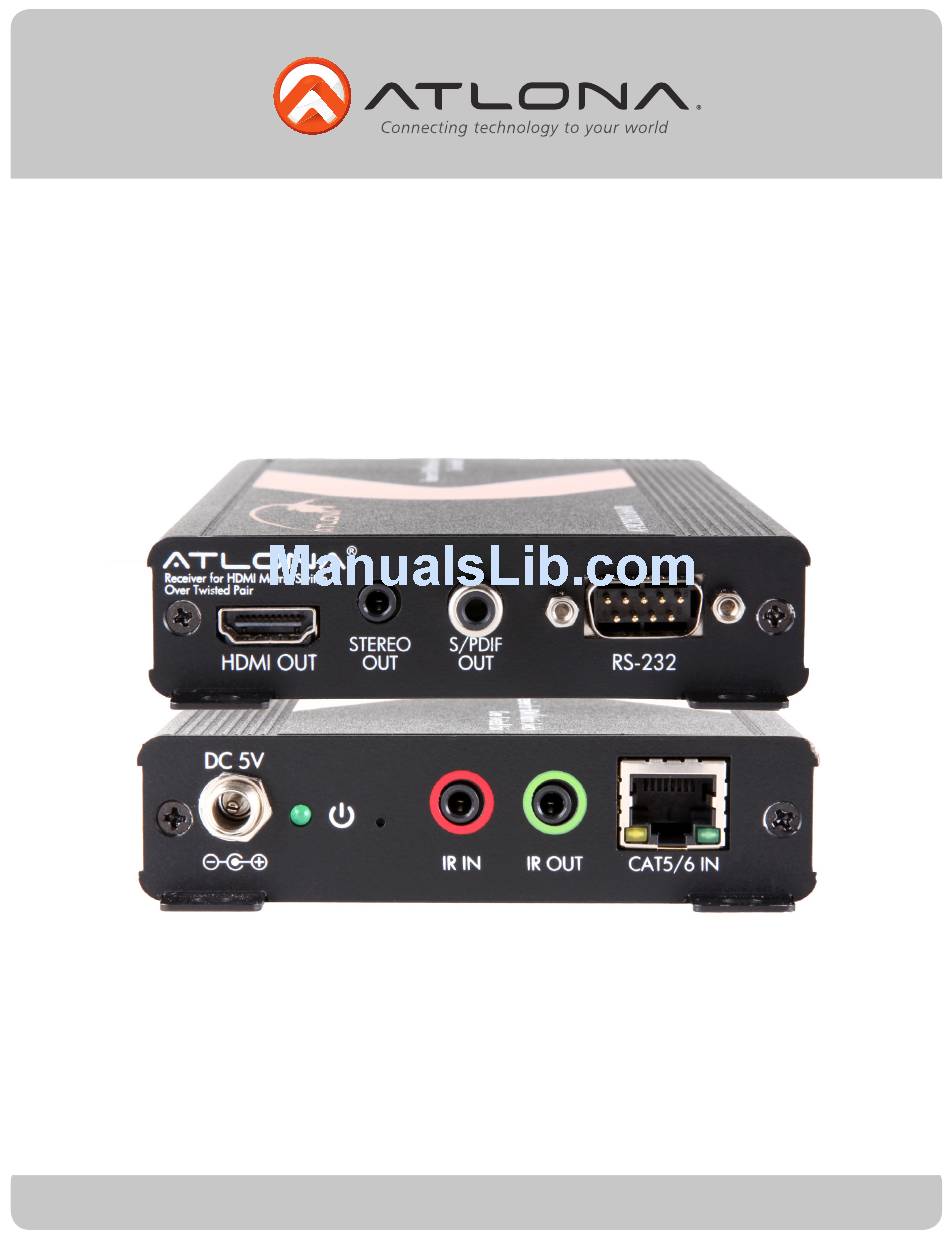

HDMI Extender over Single CAT5e/6/7 W/Audio De-embedding AT-PRO2HD1616M-RX User Manual Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 2: Table Of Contents
5. Panel Descriptions a. Front Panel ................... 4 b. Rear Panel ................... 4 6. Connection and Installation ................... 5 7. Safety Information ................... 6 8. Warranty ................... 7 9. Atlona Product Registration ................... 8 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
PRO2HD matrix switchers. With pass through support of up to 1080p or 1920x1200, 3D, 2Channel and Multi-channel audio, bidirectional RS-232 and IR signals. The AT-PRO2HD1616M-RX allows almost any audio/visual system set up to be used. -
Page 4: Panel Description
4. IR Out - Connect IR Emitter to send a signal to the display for 3rd party control 5. CAT5e/6/7 In - Connect cable from Matrix switcher for bidirectional signal. Signal indicating lights will remain solid unless there is a connection issue, at which point they will start blinking. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 5: Connection And Installation
Note: When using an IR remote control all sources can be controlled as well as the local display. Note: 3.5mm 3 conductor (stereo) cables are not compatible. Please use 2 conductor (mono) IR cables with IR input ports. IR Emitter Blu-ray Player 3rd Party Control AT-PRO2HD1616M-RX Optional AT-PRO2HD1616M-RX USB power Optional... -
Page 6: Safety Information
It may also cause damage to your AT-PRO2HD1616M-RX. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 7: Warranty
Atlona Technologies’ decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. -
Page 8: Atlona Product Registration
Atlona Product Registration Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase. Registration creates an ownership record if your product is lost or stolen and helps ensure you’ll receive notification of performance issues and firmware updates.
