PCAN-MicroMod Mix 3
Motherboard for the PCAN-MicroMod

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCAN-MicroMod Mix 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Peak PCAN-MicroMod Mix 3

Summary of Contents for Peak PCAN-MicroMod Mix 3

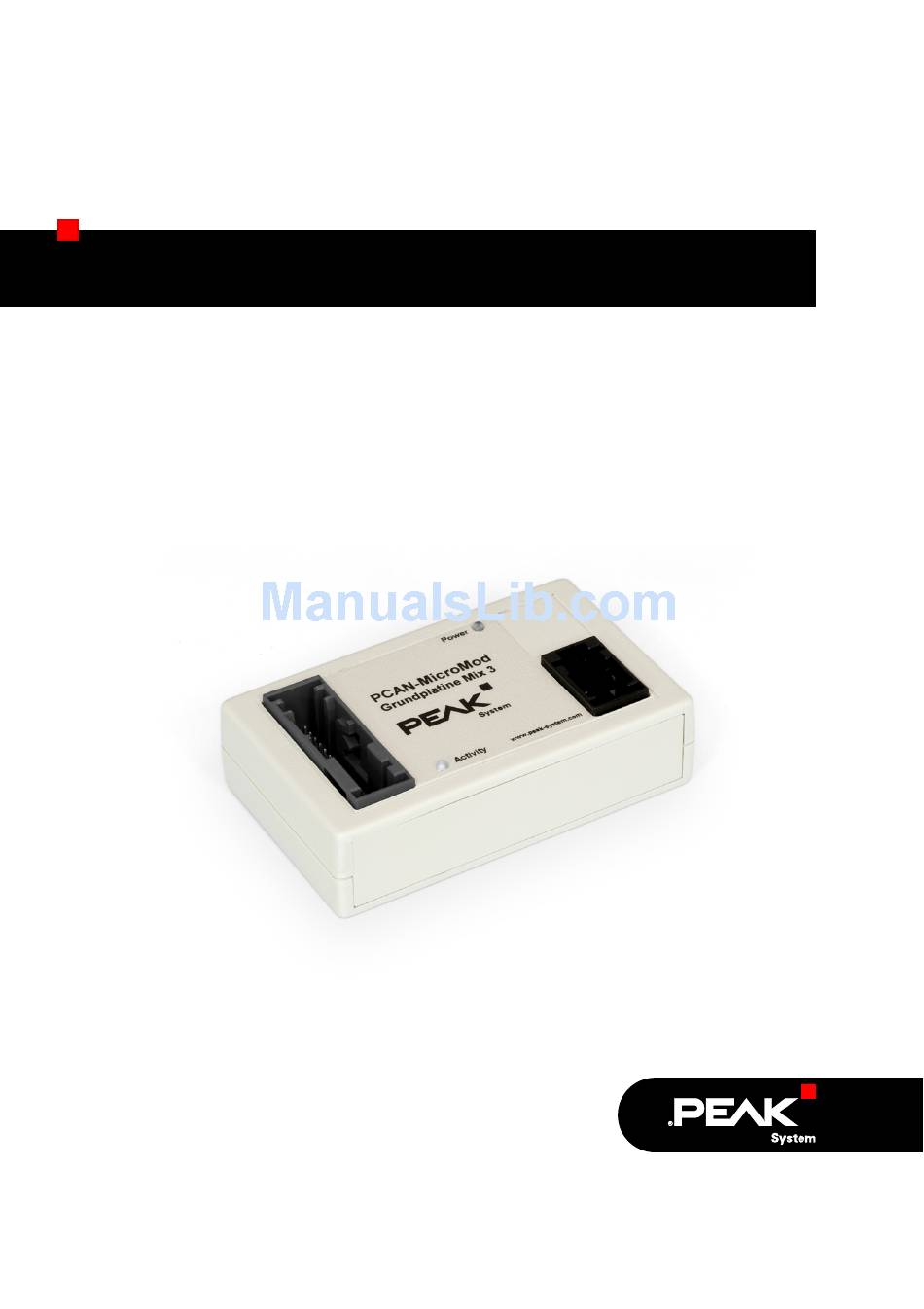

  • Page 1: User Manual

    PCAN-MicroMod Mix 3 Motherboard for the PCAN-MicroMod User Manual...
  • Page 2 PCAN-MicroMod Mix 3 – User Manual Products taken into account Product Name Model Item Number PCAN-MicroMod Mix 3 Including casing and IPEH-002206 PCAN-MicroMod Product names mentioned in this manual may be the trademarks or registered trademarks of their respective companies. They are not explicitly marked by “™” and “®”.

  • Page 3: Table Of Contents

    PCAN-MicroMod Mix 3 – User Manual Contents Introduction Properties at a Glance Prerequisites for Operation Scope of Supply Configuring the Module Pull-up/Pull-down Circuits for Digital Inputs High-side/Low-side Switches at Digital Outputs Range Extension for Analog Inputs Operation Pin Assignment / Applicable MicroMod Services 12 Configuration Program 3.2.1...

  • Page 4: Introduction

    PCAN-MicroMod Mix 3 – User Manual Introduction The motherboards by PEAK-System provide an application-specific environment for the I/O module PCAN-MicroMod (short: MicroMod). This includes input and output circuits, a casing, and connectors. This way you can use the MicroMod e.g. at instrument manufacture, plant construction, or in the automotive industry.

  • Page 5: Prerequisites For Operation

    PCAN-MicroMod Mix 3 – User Manual 8 analog inputs: • Measuring range unipolar, 0 to 4.1 V • 10 bit resolution • Measuring range extension possible with voltage divider • Low-pass behavior • Protection against undervoltage and overvoltage 8 digital outputs: •...

  • Page 6: Scope Of Supply

    PCAN-MicroMod Mix 3 – User Manual Scope of Supply The scope of supply consists of the following parts: Module with following components: motherboard Mix 3, PCAN- MicroMod, casing 2 automotive plugs (Tyco, 12-pin and 32-pin) Crimp contacts for allocating the automotive plugs...

  • Page 7: Configuring The Module

    PCAN-MicroMod Mix 3 – User Manual Configuring the Module You can customize the motherboard by modifying the hardware. The following subsections contain descriptions about possible modifications. Accessing the Motherboard In order to carry out the modifications described in the following you must unscrew the top of the casing and remove the MicroMod from the motherboard.

  • Page 8: Pull-Up/Pull-Down Circuits For Digital Inputs

    PCAN-MicroMod Mix 3 – User Manual Pull-up/Pull-down Circuits for Digital Inputs At delivery the digital inputs and the frequency inputs are open. You can set them independently to pull-up or pull-down circuit. This is done with the DIP switch row S2 for the digital inputs and the row S1 for the frequency inputs.

  • Page 9: High-Side/Low-Side Switches At Digital Outputs

    PCAN-MicroMod Mix 3 – User Manual High-side/Low-side Switches at Digital Outputs At delivery the digital outputs are configured as high-side switches and the frequency outputs as low-side switches. You can change the output behavior of four digital and two frequency outputs independently.
  • Page 10 PCAN-MicroMod Mix 3 – User Manual Important note: When you use a digital or a frequency output as high-side switch, the connected load must be linked to ground (GND). Otherwise, the overvoltage protection is not effective.

  • Page 11: Range Extension For Analog Inputs

    PCAN-MicroMod Mix 3 – User Manual Range Extension for Analog Inputs At delivery the analog inputs have a unipolar measuring range from 0 to 4.1 Volts. You can extend the measuring range of an analog input with a voltage divider by soldering in a resistor at the respectively marked position.

  • Page 12: Operation

    PCAN-MicroMod Mix 3 – User Manual Operation Pin Assignment / Applicable MicroMod Services The motherboard has a 32-pin and a 12-pin connector. For each connector on the motherboard a mating connector is delivered which you can allocate as needed. For this use the delivered crimp contacts.
  • Page 13 PCAN-MicroMod Mix 3 – User Manual Port Access with Pin J1 Function on motherboard name MicroMod service(s) Din 0 Din 1 Digital input Din 2 High state at 5 to 18 V input voltage Digital Input Din 3 Schmitt trigger behavior, inverting...
  • Page 14 PCAN-MicroMod Mix 3 – User Manual Port Access with Pin J3 Function on motherboard name MicroMod service(s) Fout 3 High-side switch by Frequency output jumper Low-side switch 1.5 A constant PWM and Fout 2 350 mA constant current Frequency current...

  • Page 15: Configuration Program

    PCAN-MicroMod Mix 3 – User Manual Configuration Program In order to create and transfer MicroMod configurations the Windows software PCAN-MicroMod Configuration is used. This section covers basic points about installation and use of the program with the motherboard Mix 3.
  • Page 16 PCAN-MicroMod Mix 3 – User Manual Figure 6: PCAN-MicroMod Configuration: selection of the motherboard Mix 3 Board Type: PCAN-MicroMod Mix 3 Module No: 0 The module number of the MicroMod on the motherboard Mix 3 is set to 0 at delivery and is relevant, if you want to configure more than one MicroMod on the same CAN bus.

  • Page 17: Status Leds

    PCAN-MicroMod Mix 3 – User Manual Status LEDs The motherboard including MicroMod has two LEDs with the following status indications: Indication Power (green) Power is applied. Activity (red) Status of the MicroMod. During normal operation it blinks at a frequency of 1 Hz.
  • Page 18 PCAN-MicroMod Mix 3 – User Manual Remounting the MicroMod When you remount the MicroMod, take notice of the white triangular marks on each the motherboard and the MicroMod (upper left corner). These marks must align. Figure 7: Positioning of the MicroMod...

  • Page 19: Technical Specifications

    PCAN-MicroMod Mix 3 – User Manual Technical Specifications Power supply Voltage supply V Nominal + 12 V DC, 11 - 26 V possible motherboard Voltage supply V high-side Nominal + 12 V DC, 8 - 33 V possible HSout drivers...
  • Page 20 PCAN-MicroMod Mix 3 – User Manual Analog inputs Count Measuring range 100 kΩ (4.1 V, unipolar, extensible through voltage divider with resistors) Resolution 10 bit Impedance < 5 kΩ Sample rate 1000 samples/s Low-pass τ = 15 ms Further properties...
  • Page 21 PCAN-MicroMod Mix 3 – User Manual Transmission standard High-speed CAN ISO 11898-2 10 kbit/s - 1 Mbit/s, setup by PCAN-MicroMod Configuration (Windows software) Termination none CAN ID reserved for 0x7E7 configuration transfer Module number at delivery (for configuration transfer) Measures...

  • Page 22: Appendix Ace Certificates

    PCAN-MicroMod Mix 3 – User Manual Appendix A CE Certificates Up to Serial Number 00199...

  • Page 23: From Serial Number 00200

    PCAN-MicroMod Mix 3 – User Manual From Serial Number 00200...

  • Page 24: Appendix B Dimension Drawing

    PCAN-MicroMod Mix 3 – User Manual Appendix B Dimension Drawing Figure 8: Top view and view of front side The figure doesn't show the actual size of the product.
