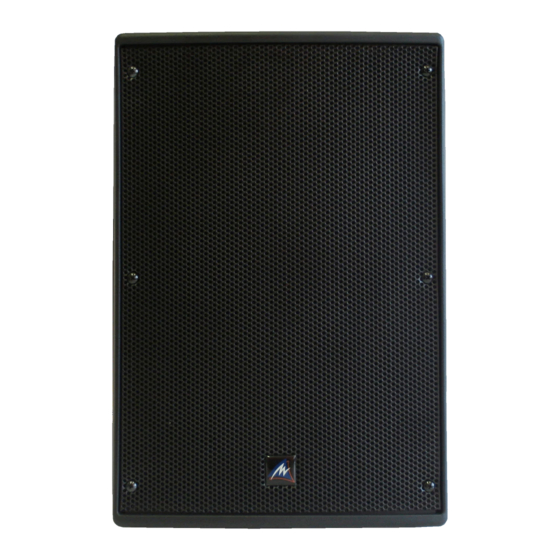

- Page 1 INSTALLATION AND OPERATION MANUAL XRS SERIES POWERED AND PASSIVE LOUDSPEAKERS...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION PRÉCAUTIONS DURANT UTILISATION Read these instructions. LISEZ ces instructions. Keep these instructions. Tenez ces instructions. Heed all warnings. Notez tous les avertissements. Follow all instructions. Suivez toutes les avertissements. Do not use this apparatus near water. N’utilisez pas ce produit près de l’eau (la piscine, la plage, le lac, etc.). Clean only with dry cloth. -
Page 3: Introduction And Contents
Building on the reliability and sonic quality of the very popular XRS FRONT PANEL XR speaker series, Australian Monitor brings you the XRS two way injection moulded speaker enclosures with more features XRS REAR PANEL – PASSIVE & CONSTANT VOLTAGE 5 and new aesthetic to suit both live sound reinforcement and permanent installation. - Page 4 XRS FRONT PANEL – ALL VERSIONS High Frequecy Driver Horn loaded compression driver. Dispersion 90 H x 90 V. Passive crossover in the passive and constant voltage XRS varients. XRS8 1.5” XRS10 1.5” XRS12 2” Active crossover and power amp in XRS powered varients. XRS8P 50 W XRS10P 50 W XRS12P 100 W...
- Page 5 XRS REAR PANEL – PASSIVE AND CONSTANT VOLTAGE XRS8 B shown here XRS8 ODV XRS8 ODV 2 Way Full Range Speaker XRS8B Weather Proof 100V/70V Frequency Response (-3dB) 65Hz-18kHz 2 Way Full Range Speaker Sensitivity (dB 1W 1m) 92 dB...
-
Page 6: Power Switch
XRS REAR PANEL POWERED VERSION Mic In Line Level This is a balanced XLR microphone input. This controls the level of the LINE input. (3) Mic Signal Line Bass This is a green LED signal present indicator This is the bass control for the LINE input for the Mic input. -
Page 7: Mounting & Accessories
MOUNTING & ACCESSORIES MOUNTING When mounting via a bracket or eyebolts the following must be considered. The mounting of a permanently installed speaker may be dangerous unless undertaken by a qualified professional with the required experience. Walls and mounting surfaces must be capable of safely and securely supporting the load of the speaker and bracketry. -
Page 8: Specifications
SPECIFICATIONS XRS8 B/W XRS10 B/W XRS12 B/W Impedance 8 Ohms 8 Ohms 8 Ohms Power (Continuous, Program) 100 watts, 200 watts 250 watts, 500 watts 300 watts, 600 watts Sensitivty (1 W / 1 M) 92 dB 95 dB 97 dB... -
Page 9: Power Requirements
SPECIFICATIONS XRS8 P XRS10 P XRS12 P Sensitivty (1 W / 1 M) Calculated max SPL 118 dB 121 dB 125 dB Dispersion ( -6 dB Points) 90 H x 90 V 90 H x 90 V 90 H x 90 V Frequency Response (-3dB) 65 Hz - 18 kHz 55 Hz - 18 kHz... - Page 10 SPECIFICATIONS XRS8 ODV XRS10 ODV XRS12 ODV Impedance 8 Ohms (Bypass) 8 Ohms (Bypass) 8 Ohms (Bypass) Power (Max Tap) 100 watts 250 watts 300 watt Sensitivty (1 W / 1 M) 92 dB (8 Ohm Bypass) 95 dB (8 Ohm Bypass) 97 dB (8 Ohm Bypass) Calculated max SPL 118 dB (8 Ohm Bypass)
- Page 11 NOTES XRS SERIES INSTALLATION AND OPERATION MANUAL PAGE 11...
- Page 12 ENGINEERED BY AUSTRALIAN MONITOR Address: 1 Clyde Street, Silverwater, Sydney NSW 2128 Australia. Private Bag 149, Silverwater NSW 1811 ABN 78 001 345 482 Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au DISTRIBUTED IN AUSTRALIA AND NEW ZEALAND BY HILLS SVL www.hillssvl.com.au...
