- Page 1 INSTALL ATION AND OPERATION MANUAL FLEX SERIES INDOOR & OUTDOOR FLEX15 IP65 RATED WALL MOUNT SPEAKERS FLEX30 FLEX50...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION PRÉCAUTIONS DURANT UTILISATION Read these instructions. Lisez ces instructions. Keep these instructions. Tenez ces instructions. Notez tous les avertissements. Heed all warnings. Suivez toutes les avertissements. Follow all instructions. N’utilisez pas ce produit près de l’eau (la piscine, la plage, le lac, etc.). Do not use this apparatus near water. -
Page 3: Introduction And Contents

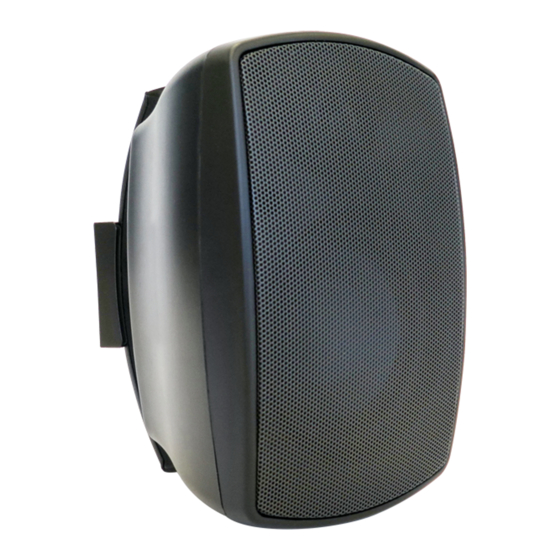

Available in 15, 30 and 50 Watt variants, the FLEX range is available in black or white and are supplied with pan and tilt wall brackets. The FLEX series from Australian Monitor offer exceptional versatility, performance and value for money. Revision 1.0: Jul 2017... -
Page 4: Front Panel
FRONT PANEL Hi Frequency Driver Grille FLEX15 1 inch Tweeter Aluminium powder-coated grille feature on all FLEX30 1 inch Tweeter FLEX models FLEX50 1 inch Tweeter Low Frequency Driver FLEX15 4 inch Woofer FLEX30 5¼ inch Woofer FLEX50 6½ inch Woofer PAGE 4 FLEX SERIES INDOOR &... -
Page 5: Rear Panel
REAR PANEL Voltage Tap Select Switch This switch provides screw driver selection of the desired 100 V transformer tap or the 8 Ohm low impedance transformer bypass option. Speaker Input Speaker input is via a pair of colour coded spring post terminals. The red terminal is positive (+), the black terminal is negative (-). - Page 6 Wall Mount Brackets The FLEX speakers are supplied with wall mount brackets, the FLEX15, FLEX30 and FLEX50 models feature a U bracket speaker mount which mounts to a seperate wall mounting plate. Wall mounting plate Using sutiable fasteners fix the wall •...
-
Page 7: Specifications
SPECIFICATIONS FLEX 15 FLEX 30 FLEX 50 Rated IP65 Impedance 100v Bypass 8 Ω 8 Ω 8 Ω 100V Tappings Watts 15, 7.5, 3.75, 1.87 30, 15, 7.5, 3.75 50, 25, 12.5, 6.25 70V Tappings Watts 7.5, 3.75, 1.87, 0.93 15, 7.5, 3.75, 1.87 25, 12.5, 6.25, 3.12 Max Power @ 8 Ω... - Page 8 ENGINEERED BY AUSTRALIAN MONITOR Address: 1 Clyde St, Silverwater NSW 2128 Australia. Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au ABN 35 007 573 417...
