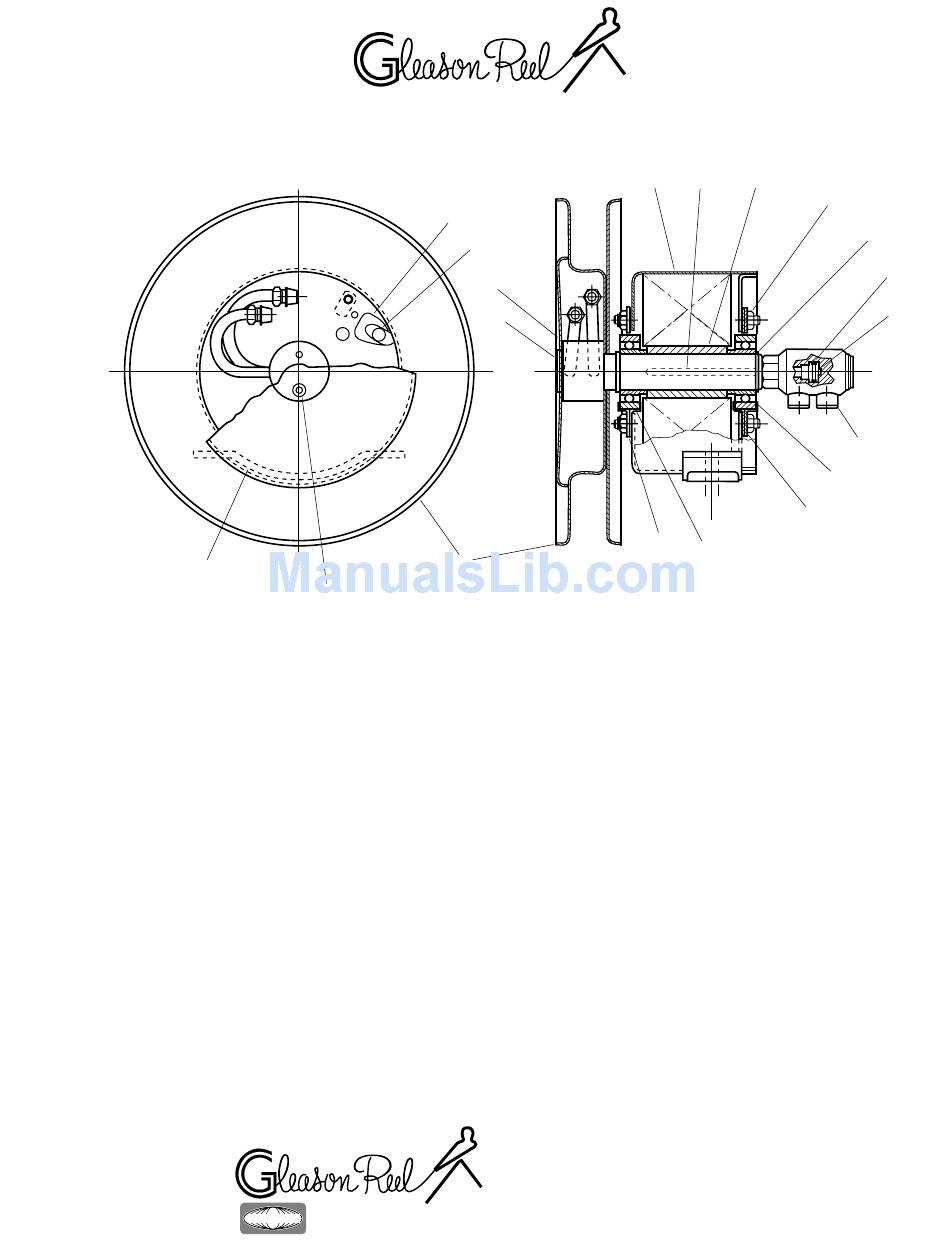

Hubbell Dual Hose Reel R-35 Parts List

9
ITEM PART NUMBER
1..................016365 ...........Manifold and Spool Assembly – 12.00 RH...............................................1
1..................016366 ...........Manifold and Spool Assembly – 12.00 LH ...............................................1
1..................016367 ...........Manifold and Spool Assembly – 15.00 RH...............................................1
1..................016368 ...........Manifold and Spool Assembly – 15.00 LH ...............................................1
2..................112207 ...........Swivel Joint Assembly ..............................................................................1
3..................016369 ...........Center Tube Assembly .............................................................................1
4..................015570 ...........Seal Kit .....................................................................................................1
5..................016370 ...........Bearing Kit ................................................................................................1
6..................016432 ...........Spring Assembly – RH .............................................................................1
6..................016433 ...........Spring Assembly – LH ..............................................................................1
7..................011277 ...........Spring Hub Assembly ...............................................................................1
8..................016371 ...........Hardware Kit.............................................................................................1
9..................016434 ...........Cover ........................................................................................................1
®
A Hubbell Company
HUBBELL
®

PARTS LIST

R-35 Dual Hose Reel
8
8
9
8
1
8
DESCRIPTION
Includes manifold and spool assembly, cover,
hose saddle and fastening hardware
Includes center tube and two (2) O-ring seals
Includes O-ring seals, back-up rings, retaining rings,
quad seals, and dust seals
Includes bearing and bearing housing
Includes key, retaining ring, hose saddle, (6) .31-18 ESNA lock nuts,
(2) .25-20 x .38 button hd. cap screws, (1) .25-20 x 1.75 hex hd. cap screw,
(1) lockwasher
®
6
8
5
5
GLEASON REEL CORP.
P.O. Box 26 • 600 S. Clark St.
Mayville, WI 53050
Phone: 920-387-4120
Fax: 920-387-4189
7
8
8
3
3
2
5
5
QTY.
PN 049741.a
