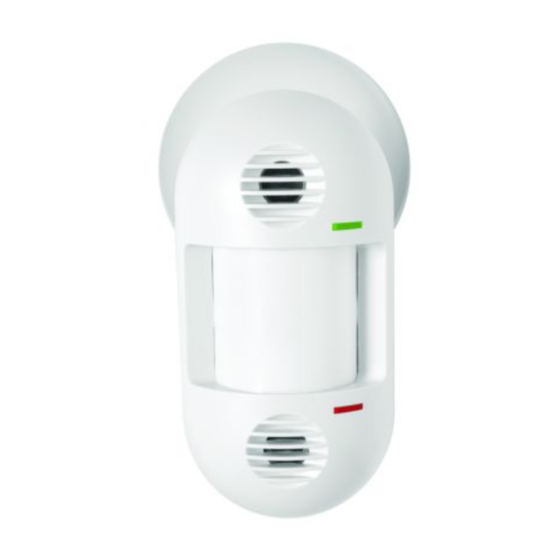

LightOWL Dual Technology Passive Infrared and Accoustic Sensors
LODT and LOIR
Installation and Setup Procedure
INSTALLATION

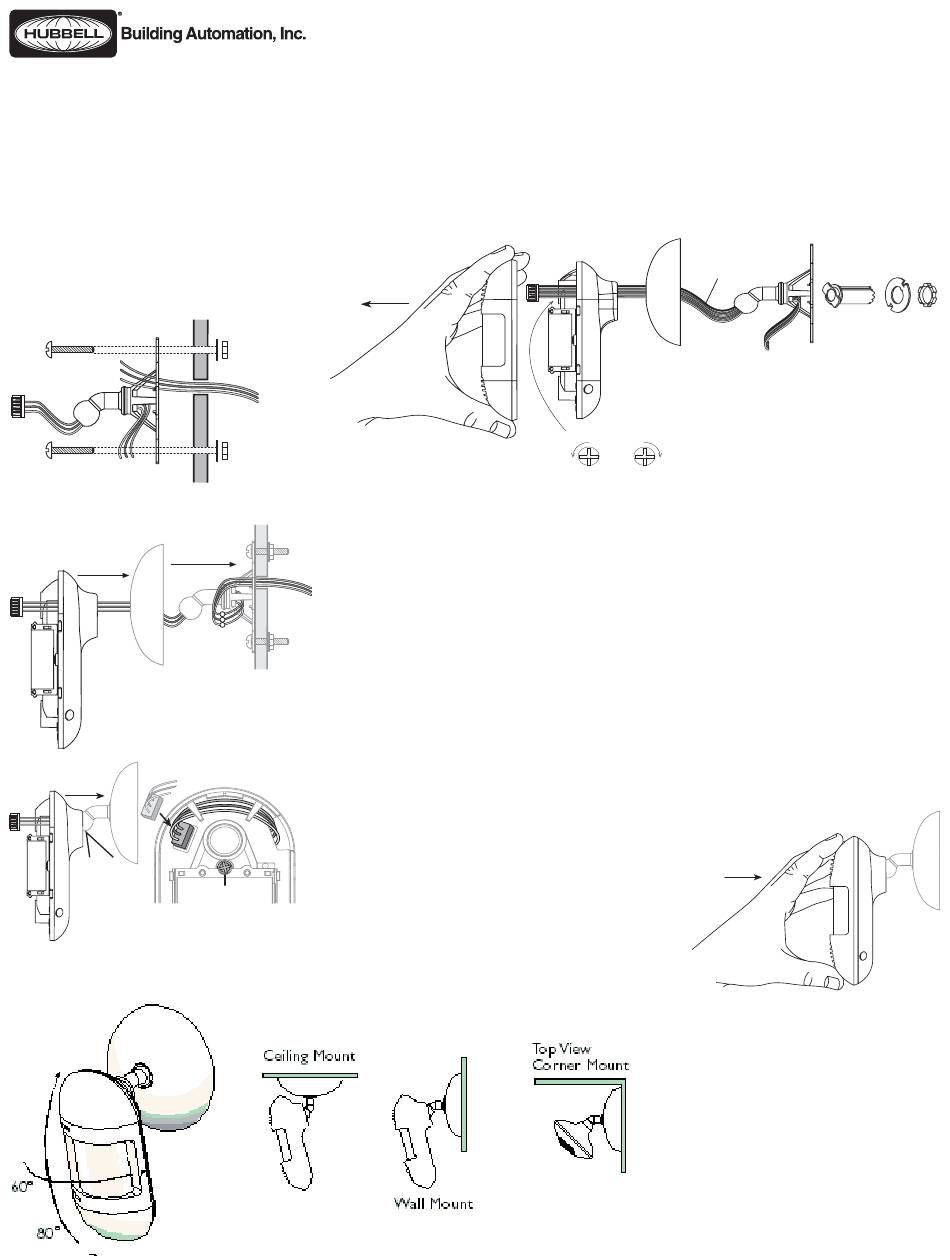

1. Insert wiring through bracket legs. Secure bracket to wall or ceiling. For ACAK Installation see page 2.
2. Connect building wiring to wiring harness with wire nuts. Snap bracket cover in place to conceal wiring and bracket. Feed wiring har-
ness through the back of the sensor body and out exit slot.
“POP”
INSTALLATION OPTIONS
PULL
3. Snap sensor onto mounting post. Plug wiring harness into connector located on the left side oppo-
site exit slot and place wiring under wire tabs. Align sensor and tighten position locking screw.
Position
Locking
Screw
Cover
Body
Bracket
Cover
Locking screw
loosen
tighten
4. Replace sensor cover.
Mounting
ACAK
Bracket
Acoustic Ceiling
Adaptor Kit
Wiring
(optional)
Harness
“SNAP”
PUSH
