DESCRIPTION

The H-MOSS® sensor is an intelligent self-adapting occupancy
sensor that is designed to replace existing wall switches.

SPECIFICATIONS

• 1000 sq. ft coverage area (Models: AP1277 and AD1277)
• 400 sq. ft. coverage area (Models: AU1277)
• Single or Dual circuit 120/277VAC, 50/60Hz operation
• Electrical Ratings: (Each Output Separately) 120VAC – 800W
Incandescent, 1000W Ballast, 1/6 HP 277VAC – 1800W Ballast,
1/6 HP
• Adjustable Time Delay: 4-30 minutes, self-adapts based on
occupancy
• Light Level Adjustment (Circuit B output on Dual Circuit versions):
10-500+FC
• UL Listed

PRECAUTIONS

CAUTION: RISK OF ELECTRICAL SHOCK. Turn power off at
service panel before beginning installation. Never wire energized
electrical components.
Read and understand all instructions before beginning installation.
NOTICE: For installation by a licensed electrician in accordance with
National and/or local Electrical Codes and the following instructions.
NOTICE: For indoor use only.
CAUTION: USE COPPER CONDUCTOR ONLY.
Confi rm that device ratings are suitable for the application prior to

installation.

NOTICE: Do not install if any damage to product is noticed.
INSTALLATION
1. Turn power off at the service panel.
2. Remove the old switch(es) if applicable.
3. Wire as shown in the Wiring Diagram section. A secure connection
to ground is necessary for the sensor to function properly.
4. Install sensor in wall box using mounting screws provided.
5. Restore power to the sensor and allow it to self adjust (up to 2min.).
Lights may be off during this time.
6. Remove the sensor's cover – see Adjustments section.
7. If desired, calibrate the photocell sensor and adjust the sensor's
confi guration switch settings as described below.
8. Reinstall the sensor's cover.
9. Install a Style Line® wall plate (not included).
Test Mode – to enter test mode:
1. Make sure lights are on.
2. Press and hold the ON/OFF button until the lights cycle off then
back on. For dual circuit sensors, press and hold the ON/OFF
button for Circuit A. For No-button sensors, press and hold the
Test Button. See Sensor Operation Diagram.
3. Sensor is now in test mode. Vacate room, lights should turn off
after 5 seconds. Wait 5 seconds and step back into room (sensing
zone), lights will turn back on. Repeat as necessary to confi rm
sensor is operating and detecting in the lighting zone as desired.
Sensor will fl ash red or green LED to indicate Passive Infrared or
Ultrasonic occupancy detection as applicable.
4. To exit Test Mode, press any button once, and then once again
after 1 second. Note: Sensor will automatically exit Test Mode after
1 hour.
Manual Override – Press button(s) to toggle lights ON and OFF.
Lights will remain in the last state determined by the buttons while
occupancy is detected. Sensor will return to automatic mode when
Wiring Device-Kellems
Hubbell Incorporated (Delaware)
Shelton, CT 06484
1-800-288-6000
www.hubbell-wiring.com
PD2218
Page 1
H-MOSS ® Motion Switching System
Passive Infrared / Ultrasonic Occupancy Sensors
Installation and Operating Instructions
05/12

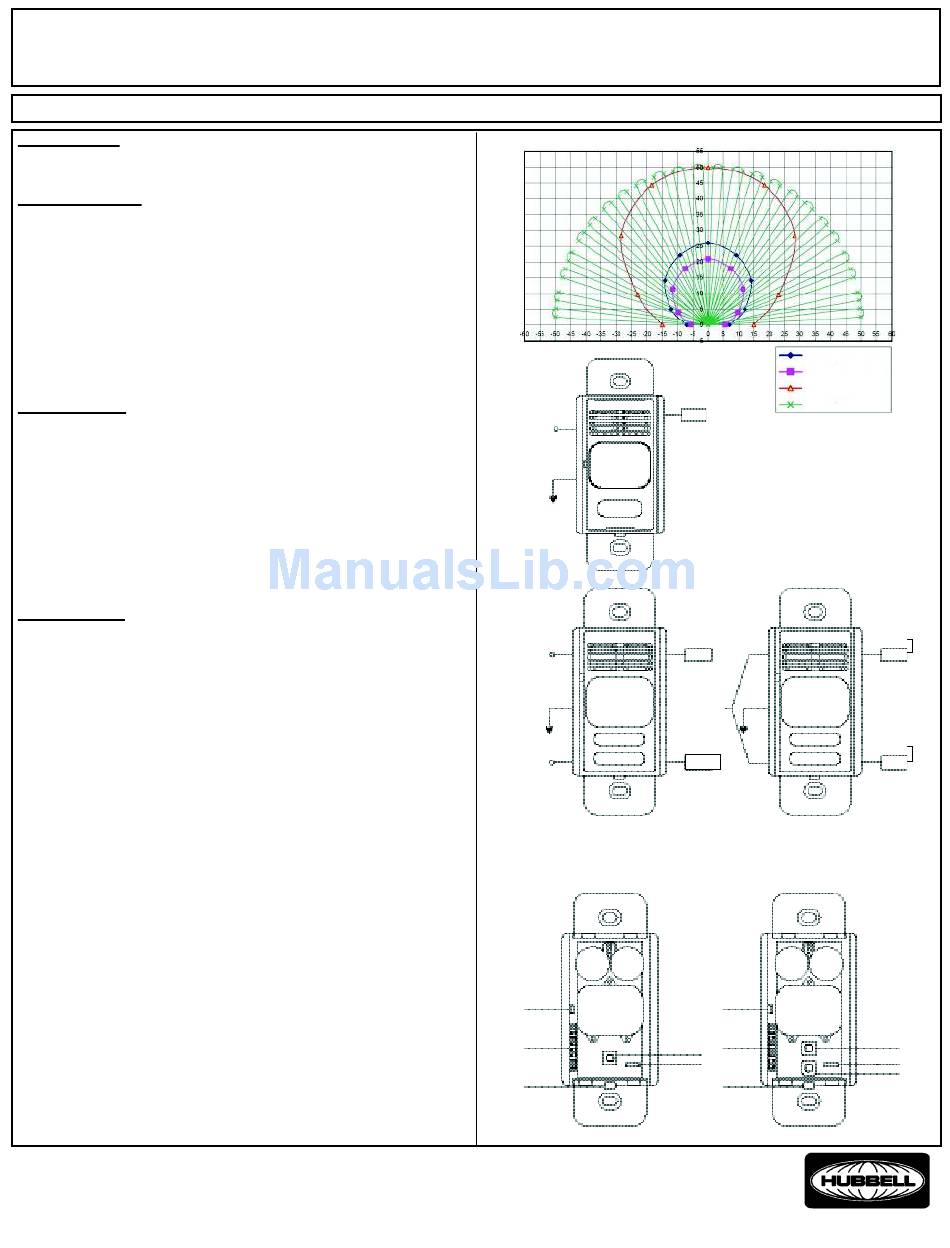

Range Diagram
Red
120/277VAC
Black
Green
Ground
Line circuit 1
120/277 VAC
Black
Green
Ground
Blue
Line circuit 2
120/277 VAC
Dual Circuit Sensor
(Wired for Dual Circuits)
Sensor Operation Diagram
Photocell
Push-Button
Confi guration
Button A
Switches
(Test Button)
Air Gap Switch
Cover Release
Catch
One/No Button Sensor
US Major Motion
US Minor Motion
IR Minor Motion
IR Major Motion
Load 1
Wiring Diagram
Single Circuit
Red
Black
Load 1
Load1
Green
Ground
Line circuit
120/277 VAC
Violet
Blue
Load 2
Load 2
Dual Circuit Sensor
(Wired for Single Circuit)
Photocell
Push-Button
Confi g-
uration
Switches
Cover Release
Catch
Two Button Sensor
Red
Load 1
Load1
Violet
Load 2
Load 2
Button A
(Test Button)
Air Gap Switch
Button B
®
