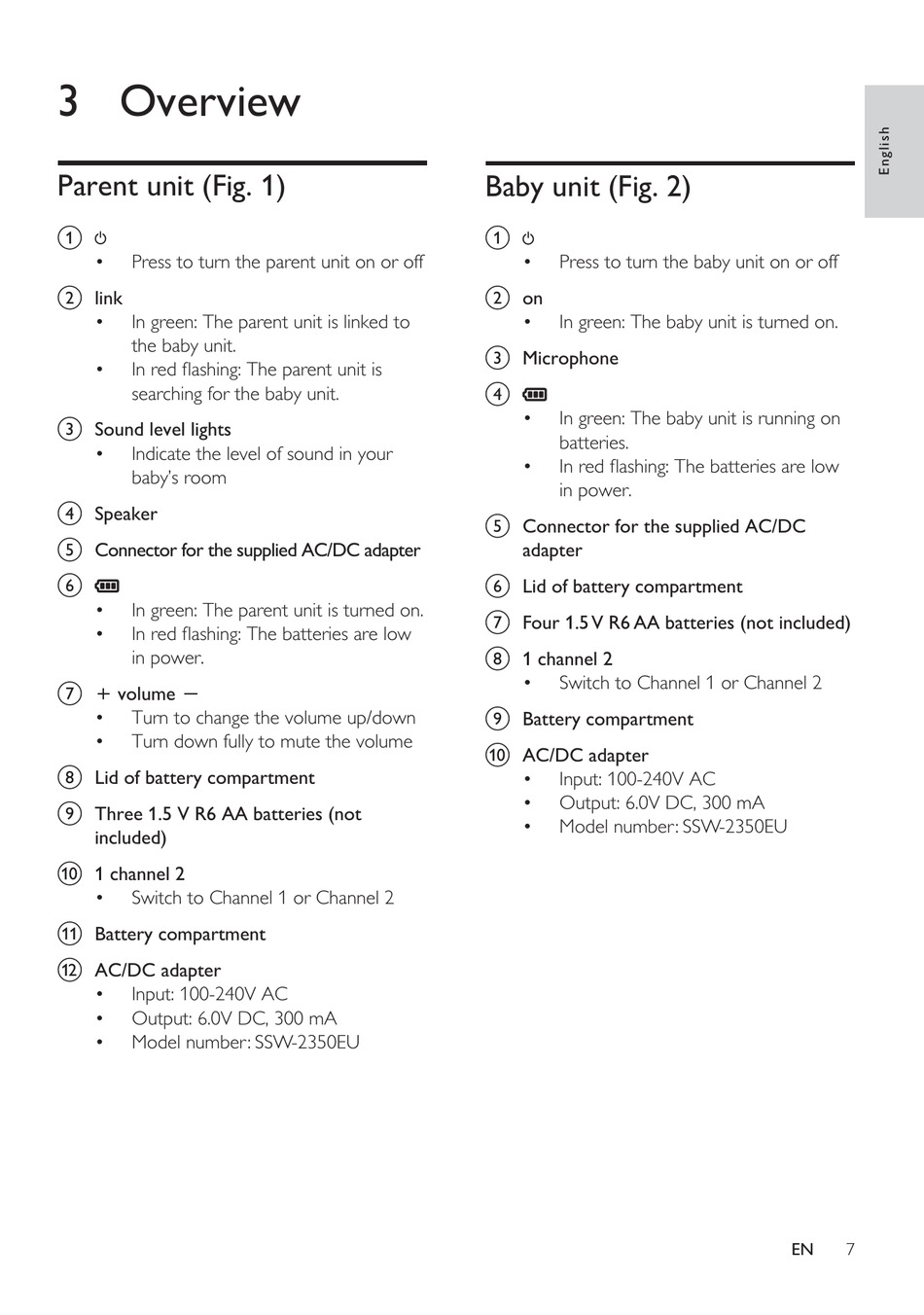

3 Overview
3DUHQW XQLW )LJ
a
‡ Press to turn the parent unit on or off
b link
‡ In green: The parent unit is linked to
the baby unit.
‡ ,Q UHG ÁDVKLQJ 7KH SDUHQW XQLW LV
searching for the baby unit.
c Sound level lights
‡ Indicate the level of sound in your
baby's room
d Speaker
e Connector for the supplied AC/DC adapter
f
‡ In green: The parent unit is turned on.
‡ ,Q UHG ÁDVKLQJ 7KH EDWWHULHV DUH ORZ
in power.
g
volume
‡ Turn to change the volume up/down
‡ Turn down fully to mute the volume
h Lid of battery compartment
i 7KUHH  9 5 $$ EDWWHULHV QRW
LQFOXGHG
j 1 channel 2
‡ Switch to Channel 1 or Channel 2
k Battery compartment
l AC/DC adapter
‡ Input: 100-240V AC
‡ Output: 6.0V DC, 300 mA
‡ Model number: SSW-2350EU
%DE\ XQLW )LJ
a
‡ Press to turn the baby unit on or off
b on
‡ In green: The baby unit is turned on.
c Microphone
d
‡ In green: The baby unit is running on
batteries.
‡ ,Q UHG ÁDVKLQJ 7KH EDWWHULHV DUH ORZ
in power.
e Connector for the supplied AC/DC
adapter
f Lid of battery compartment
g )RXU  9 5 $$ EDWWHULHV QRW LQFOXGHG
h 1 channel 2
‡ Switch to Channel 1 or Channel 2
i Battery compartment
j AC/DC adapter
‡ Input: 100-240V AC
‡ Output: 6.0V DC, 300 mA
‡ Model number: SSW-2350EU
EN 7
