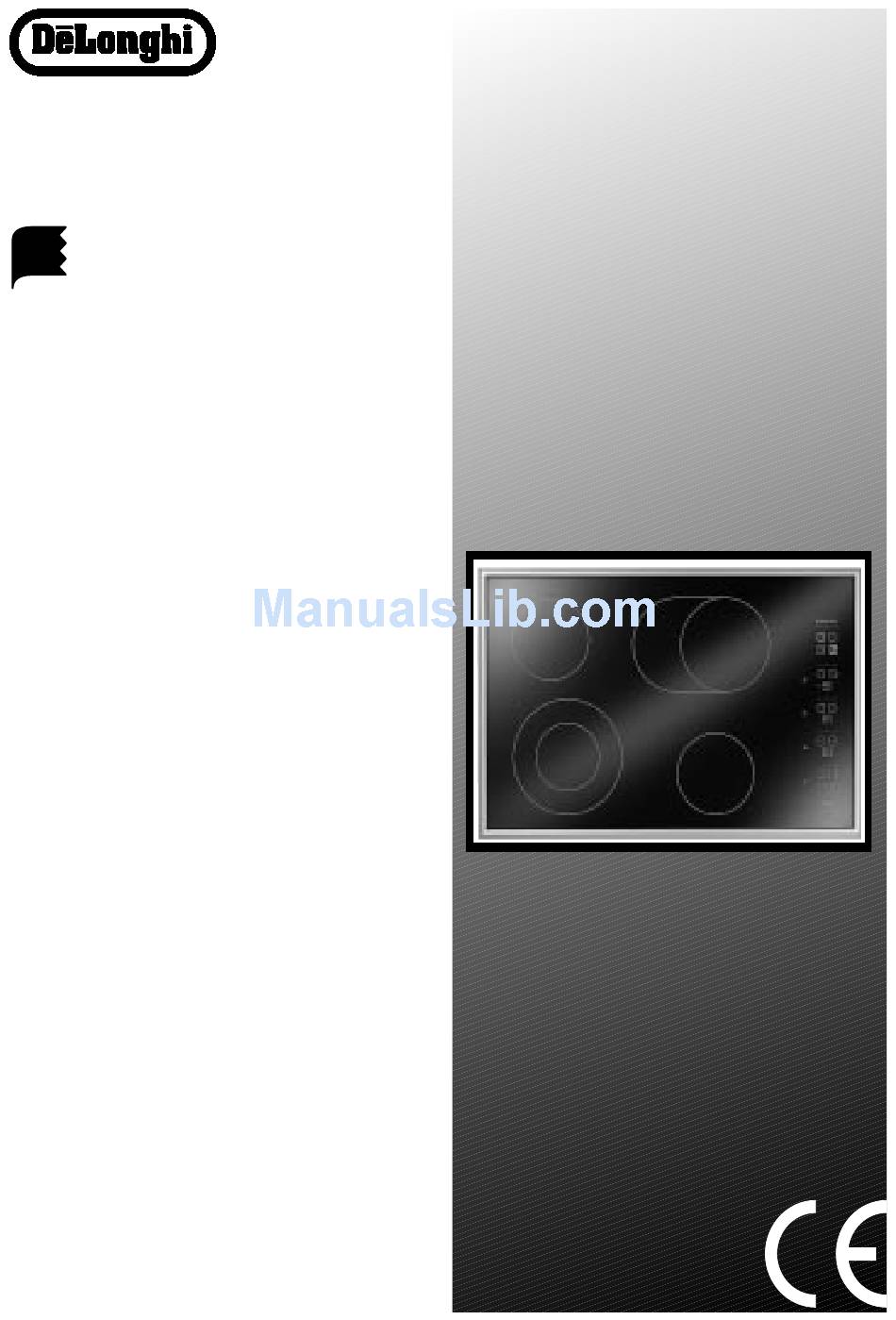

- Page 1 VITROCERAMIC HOB Operating instructions book...
- Page 3 DHHS80 Ceramic Hob Instructions CAUTION: • In order to avoid a hazard this appliance must be installed according to these installation instructions WARNING: • This appliance is to be installed only by an authorized person • This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs.
-
Page 4: Installation
150mm above the hob for the full dimension (width or depth) of the cooking surface area. • Protection of combustible surfaces – The required protection shall ensure that the surface tem- perature of the combustible surface does not exceed 50°C above ambient. The fixing of 5mm thick ceramic tiles to the surface or attaching fire resistant material to the surface and covering with sheet metal with minimum thickness of 0.4mm would satisfy this requirement. -
Page 5: Electrical Requirements
ELECTRICAL REQUIREMENTS: If you wish a direct connection to the line, it is necessary to interpose a single-pole switch, with a minimum opening between the contacts of 3 mm, suitable for the load indicated in the plate and in conformity with the rules in force (the yellow/green ground cable should not be interrupted by the switch). -
Page 6: Timer Operation
HOTPLATES: The heating elements are formed by a coil of resistant material which reaches the working tempera- ture quickly. Warning for the eyes: Do not stare at the hotplates when they are on. TOUCH CONTROL OPERATION: i) The very first time power is connected to the cook-top, it will be in locked mode for safety. ii) To begin any operation, touch the lock key for 3 seconds. -
Page 7: Cooking Hints
· ·Please turn the appliance off at the mains and call your nearest DeLonghi Service Agent. ·Do not lean over the cooking plate when in use. ·Follow the cleaning instructions carefully. ·Always ensure the base of your sausepan is clean & dry before placing on the hob. -
Page 8: Cleaning And Maintenance
Only pans recommended for use on ceramic hobs should be used. Pans made of the following materials can cause problems: Cast Iron - The base may be rough which will scratch the hob. Toughened Glass - If the pan becomes too hot, the hob may overheat causing the safety cut out to operate too frequently thus reducing the cooking efficiency. - Page 9 TOUCH CONTROL PANEL DESCRIPTION Fig.6 Timer display Timer Control Keys Cooking area selection and display TIMER Heat positions Heat setting Keys Extended area display Heating zone indicator On/Off Key Key-lock On / Off pilot light Extended area display Lock key - Hold down for 3 seconds to turn on or off...
-
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS Voltage 220-240V ~ 50 Hz Max. power 6.7 kW Hotplate (front left) 2100W Hotplate (back left) 1200W Hotplate (back right) 2200W Hotplate (front right) 1200W Touch Control Residual heat indicator warning LED’s Glass overheat cut-out device DIMENSIONS (Note: Also refer to Fig. 2) General Dimensions Width 770 mm...
