SAMBA 55/56
VERSION 1.07
3.1.1.4 Interface D (Optical interface)
The actual state of the SAMBA is displayed by three LED's (their
functionality is described in the next chapter) on this interface, see figure
below.

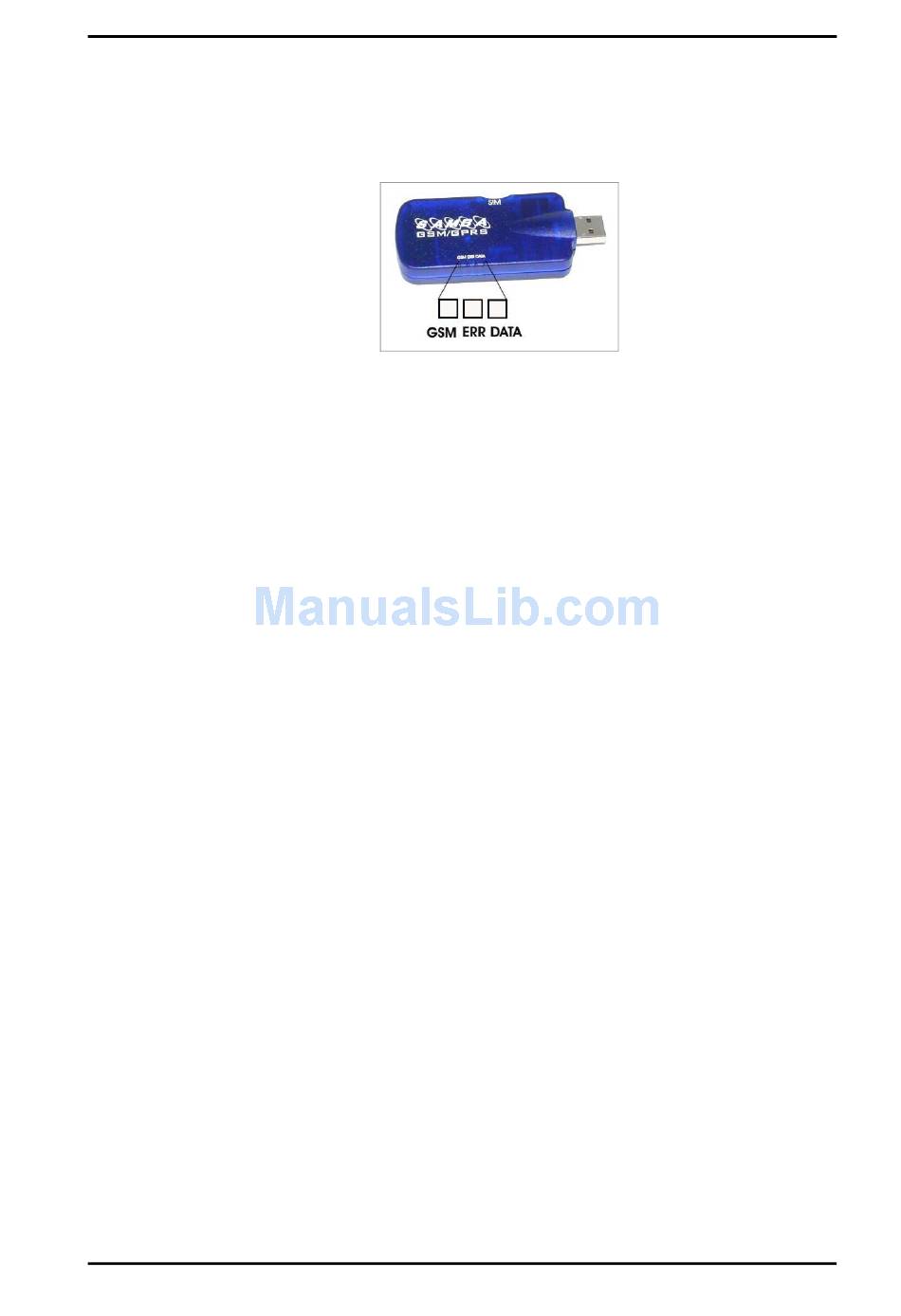

Figure 7: Status indicator of modem
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
Page 19
