SAMBA 55/56

3 Interfaces in overview

The integrated modem has a sole USB connector, which gathers all the
interface signals in order to facilitate its integration.
It has an integrated SIM card reader as well as a internal GSM antenna.
The concept of the integrated modem has been defined to integrate on a sole
device with follow interfaces:
Interface A
Interface B
Interface C
Interface D
Table 5: Interface specifications of the Modem

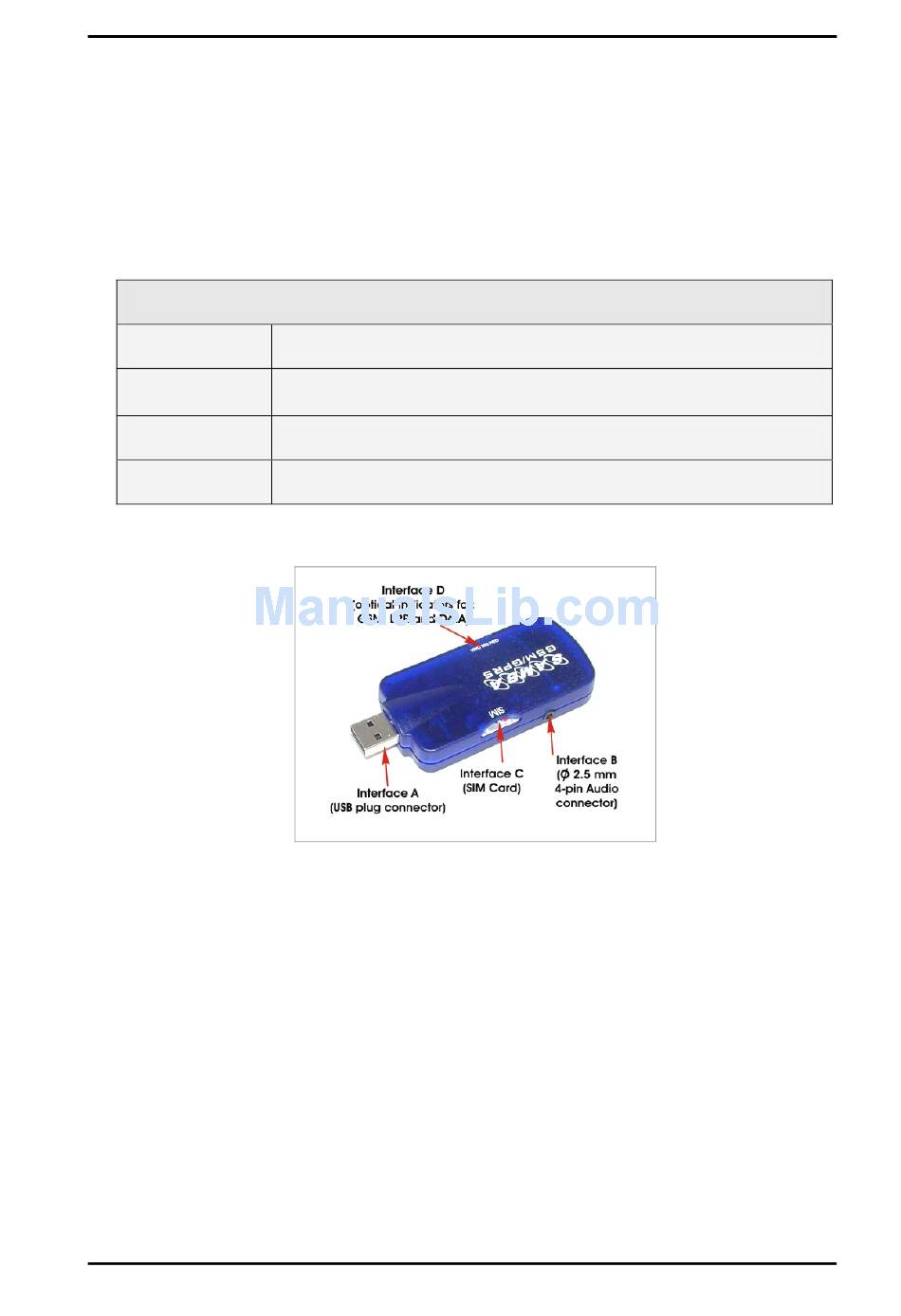

Figure 2:
3.1.1.1 Interface A (4-pin USB Type A connector)
The power supply for the GSM/GPRS part of the SAMBA modem has to be
a single voltage source of +5 V. It must be able to provide sufficient current
in a transmit burst which typically rises according to the USB 1.1 and 2.0
statements.
This confidential document is the property of FALCOM GmbH and may not be copied or circulated without permission.
Interface specifications
Standard USB plug serial interface
Audio interface 2,5 mm (4-pin) connector (for included
SIM card reader for small SIM cards (3V)
3 optical indicators LED's
v
iew of SAMBA interfaces.
headset)
VERSION 1.07
Page 17
