USER MANUAL

Counting scales – WTC/LW series
MANUFACTURER OF ELECTRONIC WEIGHING INSTRUMENTS
RADWAG 26 – 600 Bracka 28 Street, POLAND
Radom, phone+4848 3848 800, phone/fax +4848 385 00 10,
Sales Department +4848 366 80 06
www.radwag.com
MAY 2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WTC series and is the answer not in the manual?

Questions and answers

Summary of Contents for RADWAG WTC series

  • Page 1: User Manual

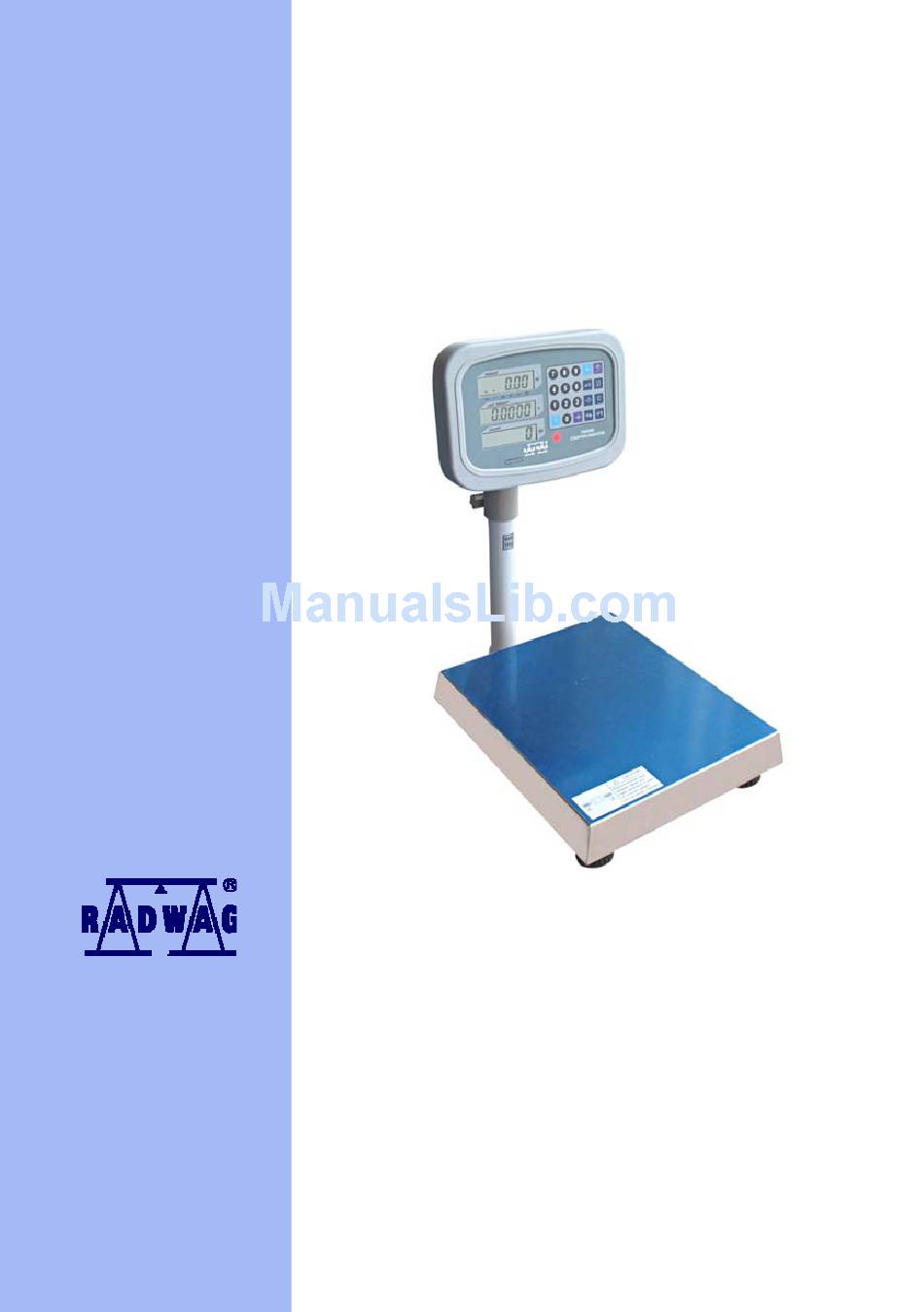

    USER MANUAL Counting scales – WTC/LW series MANUFACTURER OF ELECTRONIC WEIGHING INSTRUMENTS RADWAG 26 – 600 Bracka 28 Street, POLAND Radom, phone+4848 3848 800, phone/fax +4848 385 00 10, Sales Department +4848 366 80 06 www.radwag.com MAY 2007...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. INTENDED USE - MAIN FUNCTIONS............3 2. CONSTRUCTION ..................3 2.1. Indicator......................3 2.2. Keyboard and display window ................. 4 2.3. Additional markers................... 4 2.4. Function buttons and functions................ 5 3. OPERATION....................6 3.1. Tarring ......................6 3.2.
  • Page 3: Intended Use - Main Functions

    1. INTENDED USE - MAIN FUNCTIONS Scales series WTC /LW are designed for counting pieces with same unit mass. Counting process can be realized as: Specification of sample mass (one piece) Calculation of sample mass from some determined amount of samples on the weighing pan TARE functions allows for determination of net mass of measured loads –...
  • Page 4: Keyboard And Display Window

    2.2. Keyboard and display window Fig. 2 – buttons and displays Scales are equipped with three displays: mass, piece mass, quantity of pieces, and functional keyboard with numeric and function keys. 2.3. Additional markers Character Description Zero indication of scale Stable weighing result TARE button applied –...
  • Page 5: Function Buttons And Functions

    2.4. Function buttons and functions Turn on/off Confirm the quantity of pieces as a standard mass Pressing this button, will cause the display to show in field WEIGHT, message “total” – display of total sum of counted pieces Deleting sum of counted pieces Confirms mass of single unit mass Possibility of setting a threshold for counting pieces mode (after crossing this threshold, scale generates beep signal)
  • Page 6: Operation

    3. OPERATION 3.1. Tarring Place the package of the good(s) on the weighing pan. After stabilization of weighing result, please press button TARE. Display will show ZERO indication. Lower part of the display WEIGHT, the marker of tare application will be visible. Fig.
  • Page 7: Counting Pieces With Same Unit Mass

    − After taking the load off the weighing pan, mass indication with negative (minus) sign is visible on the display − Press button ZERO, indication will go back to zero. 4. COUNTING PIECES WITH SAME UNIT MASS 4.1. Single piece mass is known In case unit mass of the counted objects is known, counting mode can be realized in following way: −...
  • Page 8: By Determination Of Single Unit Mass

    4.2. By determination of single unit mass If unit mass of counted objects is not known, please act as described below: − Place a container for counting pieces on the weighing pan, and press button TARE − Using numeric keyboard of the indicator, insert quantity of pieces (reference mass), which will be used to calculate single piece mass CAUTION: reference mass has to be natural number.
  • Page 9: Summing Of Weighing While Counting Pieces

    5. SUMMING OF WEIGHING WHILE COUNTING PIECES While counting pieces, it is possible to use summing function. Please follow below procedure: 1. Start counting pieces as described in points 4.1. or 4.2. 2. when scale shows quantity of pieces, press button PLUS 3.
  • Page 10 Fig. 8 – view of sum from a few weighings 9. Continuous summing of weighing is possible after pressing button 10. Proceed according to points 5 – 7 CANCELING SUM OF COUNTED DETAILS the moment, the sum of counted details is visible ( please see drawing no. 8), and press button: Scale will go back to weighing mode, sum marker will be no longer visible (marker over M...
  • Page 11: Program Value While Counting Pieces

    6. PROGRAM VALUE WHILE COUNTING PIECES While counting pieces mode, control of quantity takes place in visual way – user should observe display status. For fast processes of quantity building, it is often required to have some limited quantity which can not be exceeded in one package.
  • Page 12: Accuracy Of The Scale

    7. ACCURACY OF THE SCALE − after switching the scale by pressing button ON/OFF, scale performs auto-test, visible on the display of the instrument. While this process, press button − After cycle completion, scale status will look as below: Fig 11 – choice of readability of the scale −...
  • Page 13: Backlight

    8. BACKLIGHT Switching on backlight : − Press and hold button [ZERO] for 3 seconds, on the display described as COUNT backlight parameter value will be displayed. − Below values are accessible bl OFF (backlight off) bl ON (backlight on) bl Aut (automatic control, active only when indication changes and for the next 3 seconds after getting stable.) 9.
  • Page 14: Technical Parameters

    10. TECHNICAL PARAMETERS Scale type: 6 C1/LW 15 C1/LW 30 C1/LW 60 C1/LW Maximal capacity. 6 kg 15 kg 30 kg 60 kg 0,2 g Readability -6 kg -15 kg -30 kg -60 kg Tare range Pan size 290×360 mm -10°...
  • Page 15 OF E L E C T R O N I C W E I G H I N G I N S T R U M E N T S ZAKŁAD MECHANIKI PRECYZYJNEJ ,,RADWAG” 26 – 600 Radom, Bracka 28 Street POLAND phone +48 48 38 48 800, phone./fax.
