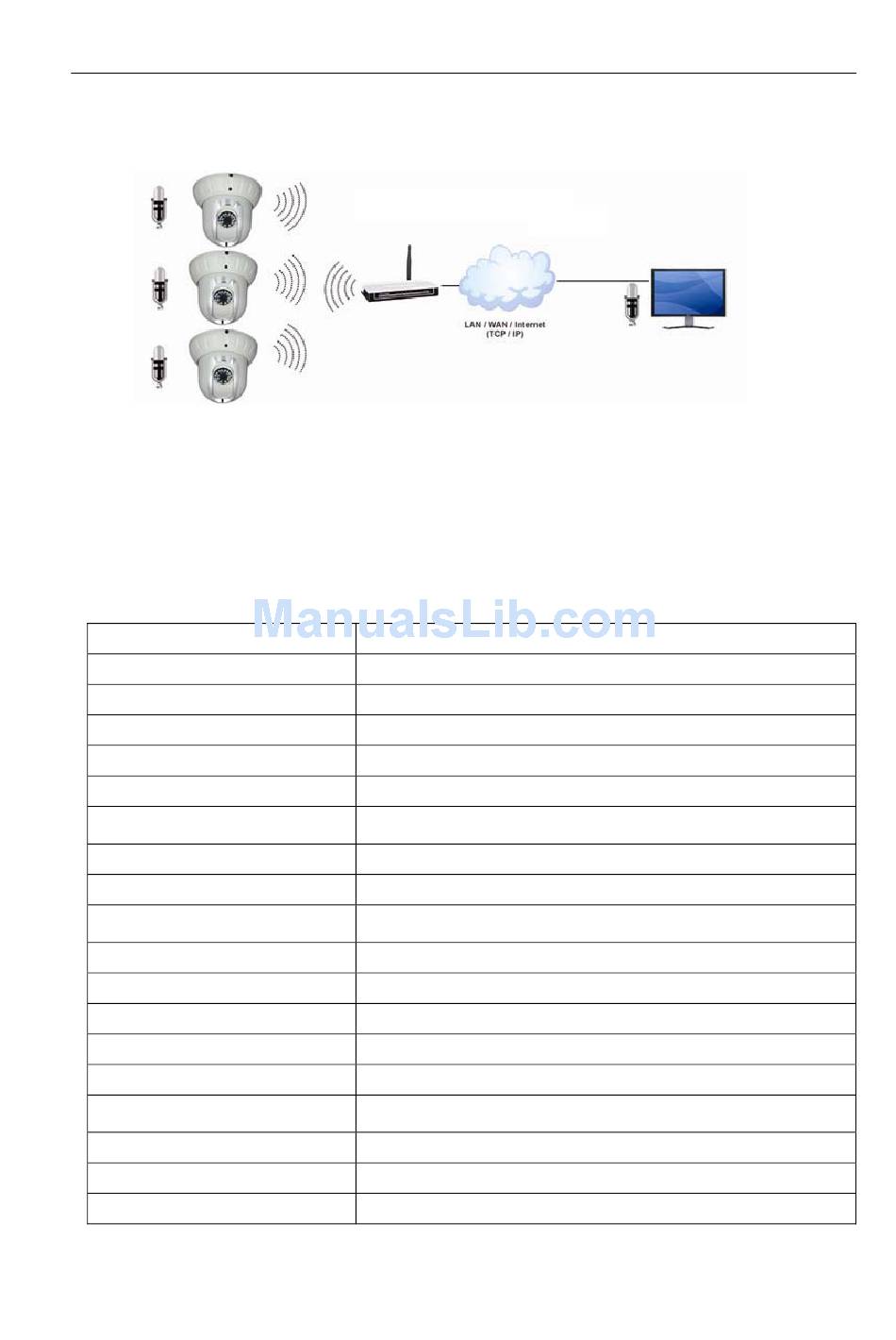

8. Basic System Diagram and Operating Circumstance

Operating environment
After the equipment installed and connected to the network, it should be operated on Server
Software Platform of Microseven Digital Video Server.
9. Specifications
Model
Pick-up Device
Scanning Area
Pixels
Horizontal Resolution
Minimum Illumination
Scanning
Scanning Mode
Video Output
Image / Audio
Compression Standard
S/N Ration
AGC
ELC
Synchronization Mode
Lens
F Coefficient
Pan Range
Tilt Range
Pan/Tilt Speed
MSH-RD080PTW
MSH-RD080PTW
1/3" SONY Super HAD CCD
4.89mm (H) × 3.67mm (V)
795(H)×597(V)PAL
480 Lines
0.5Lux (Color); 0Lux (Black/white, IR on)
625 Lines/50 Fields/25 Frame(PAL)
525 Lines/60 Fields/30 Frame(NTSC)
Interline scanning
1.0V[p-p] Composite Video Signal/75Ω,
H.264 / G.711
≥ 48dB (AGC OFF, Weight On)
≥ 18dB
1/120S
Internal/Power supply synchronization selectable
4mm/6mm/8mm optional
F2.0/2.5
20° - 355°
0° - 90°
12°/s (Pan) 10°/s (Tilt)
