Ask an expert about the bearing capability and structure of the installation surface,
if the surface is not solid enough, the camera may drop down. To get the weight of
camera please refer to the product specification.
7.1 Fix the screws
Get the fixed screws to fix the pedestals onto the installing surface, with back side upward
and front side downward.

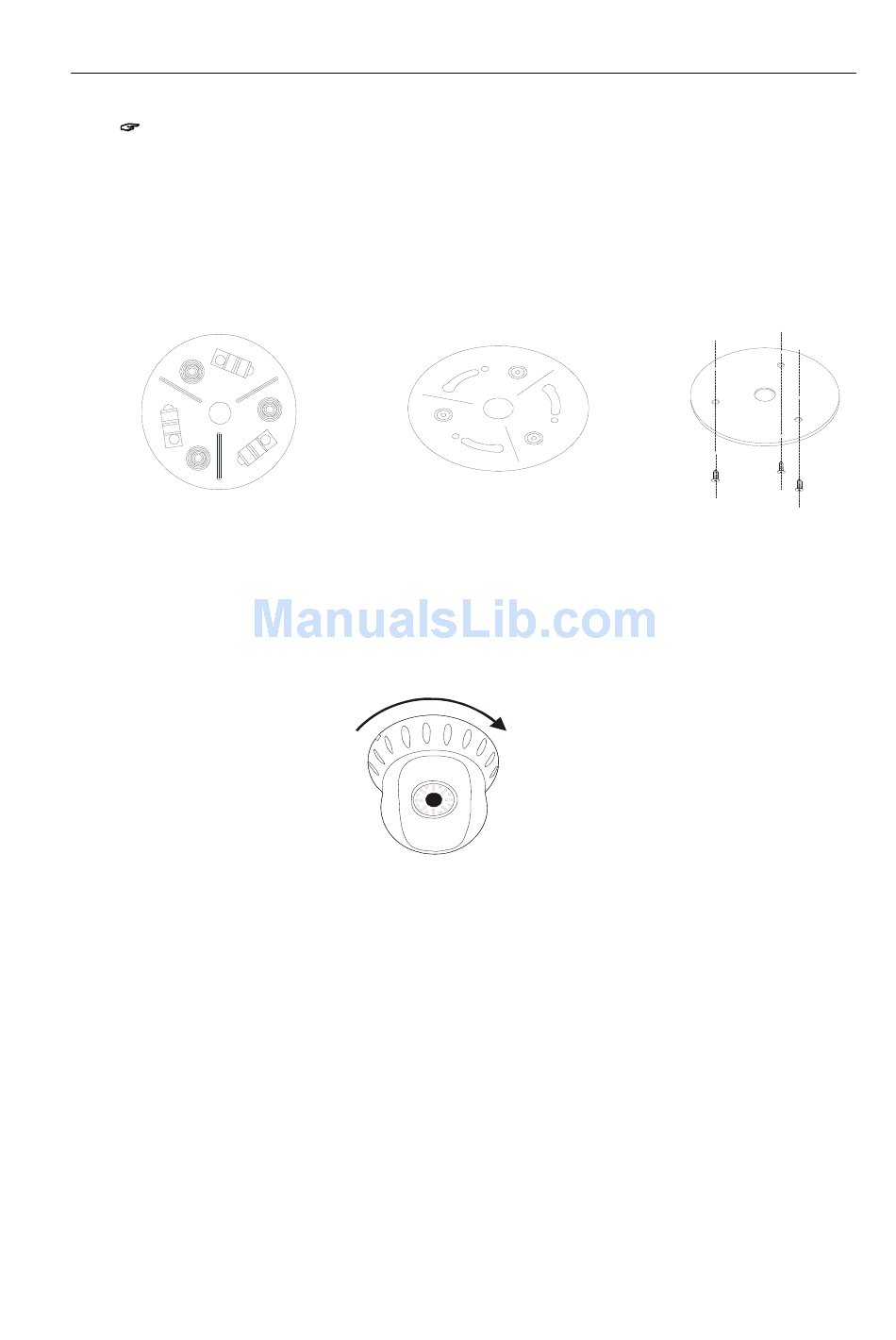

Fig.1 A Pedestal (back side)
7.2 Install cameras
Aim the screw remaining outside part into the hole of the camera, twist the camera
clockwise to the end.
Fig.2 B Pedestal (front side)
Fig. 4 camera installation
