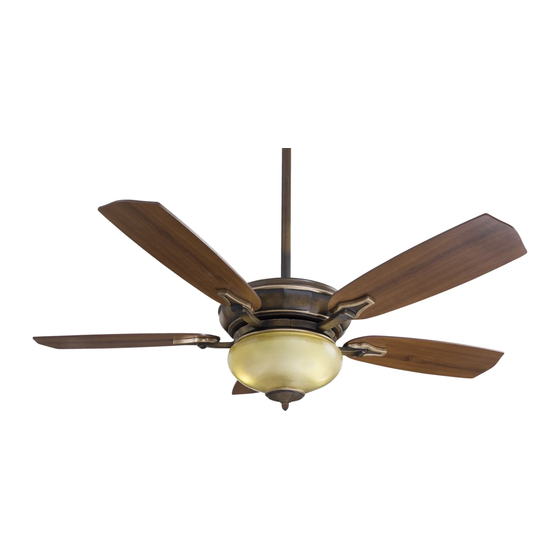

- Page 1 Facets CERTIFICATE...
- Page 2 Manual design and all elements of manual design are protected by U.S. Federal and/or State Law,including Patent,Trademark and/or Copyright laws.
- Page 3 This is a limited warranty. Minka-Aire ’s only obligation under this limited warranty is to replace or repair, or refund the purchase price, in Minka- Aire ’s sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this limited...
- Page 4 This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some states do not allow the exclusion of or limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.
-
Page 5: Table Of Contents
CONTENTS INSTALLING THE LIGHT KIT PLATE SAFETY RULES INSTALLING THE LIGHT KIT ASSEMBLY PACKAGE CONTENTS INSTALLING THE GLASS SHADE & LIGHT BULB INSTALLING THE FAN OPERATING THE REMOTE CONTROL/WALL CONTROL HANGING THE FAN CARE OF YOUR FAN ELECTRICAL CONNECTIONS TROUBLESHOOTING FINISHING THE INSTALLATION SPECIFICATIONS BLADE INSTALLATION... -
Page 6: Safety Rules
SAFETY RULES Before you begin installing the fan, shut power off the circut breaker of the fuse box. 2. Be cautious!Read all instuctions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. Make sure that all electrical connections comply with local codes, ordinance, or National Electrical Codes.Hire a qualified electrician or consult a do-it-your self wiring handbook if you are unfamiliar with installing electrical wiring. - Page 7 ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device, If lamping exceeds 190watts, the ceiling fan’s light kit will shut off automatically. NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents.You should have the following items: 1. Fan blades(5) 15 .Balancing kit 2. H anger bracket 3. C anopy A. Mounting hardware: 4. Canopy cover Wire nuts(3) 5. Coupling cover Machine screws (2) 6. -
Page 9: Installing The Fan
Note: You may need a longer downrod to maintain proper blade clearance when installing on JOIST (OPTIONAL) SUPPORT a steep, sloped ceiling. Longer downrods are available from your Minka-Aire dealer. HANGER To hang your fan where there is an existing fixture but no ceiling joist, you may need to OPENING must be install a hanger bar as shown in Fig.4(available at your Minka Aire dealer or local hardware... -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 4.Carefully feed fan wires up through the downrod(Fig 8). hanger bracket and hanger ball have been provided for your safety and Thread the rod into the coupling, next line up holes and replace lock the proper installation of your new ceiling fan. - Page 11 DOWNROD OUTLET BOX CANOPY DOWNROD COUPLING CROSS PIN *OMIT COUPLING SET SCREWS COVER WHEN USING HITCH THE MINIMUM-LENGTH LOCK DOWNROD HANGER SUPPLY CANOPY REGISTRATION BALL SET SCREW WIRES COVER SLOT SE T SCREWS DOWNROD HANGER BRACKET Fig. 10 Fig. 5 Fig.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS WARNING:To avoid possible electrical shock be sure electricity Step 2. Motor to Receiver Electrical Connections: Connect the WHITE is turned off at the main fuse or breaker box before wiring. wire from the fan to the WHITE wire marked”TO MOTOR N” from the Receiver. - Page 13 Step 3.Receiver to House Supply Wires Electrical connections:Connect the WHITE wire(Neutral) from the outlet box to the WHITE wire marked”AC in N” from the receiver. Connect the BLACK wire(Hot) from the outlet box to the BLACK wire marked “AC in L” from the receiver. Secure all wire connections with the plastic wire nuts provided.(Fig.13) RECEIVER Step 4.If your outlet box has a GROUND wire (Green or Bare Copper)
- Page 14 OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) GREEN OR BARE COPPER (GROUND) " " BLACK ( AC IN L ) WHITE ( AC IN N ) " " RECEIVER " " BLACK ( TO MOTOR L ) " " WHITE ( TO MOTOR N ) BLUE (FOR LIGHT) ORANGE (CONNECT TO...
-
Page 15: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Tuck connections neatly into ceiling outlet box. Step 2. Remove one screw from the hanger bracket and loosen the other screw around 1/4” . OUTLET BOX Step3. Align the canopy up to ceiling and over the loose screw. Place the canopy into key hole and rotate canopy clockwise. -
Page 16: Blade Installation
BLADE INSTALLATION SCREWS Blade Step1. Attach the fan blades to the blade holders by using three holder PAPER screws and paper washers as shown in Figure 15. Start a screw WASHERS into the blade holder, do not tighten. Repeat for the 2 remaining screws and washers. -
Page 17: Installing The Light Kit Plate
INSTALLING THE LIGHT KIT PLATE Step1.Remove 1of 4screws from the mounting ring and loosen the other 3 screws.(Do not remove.) Step2.Place the key holes from the light kit plate over the 3 screws previously loosened from the mounting ring , turn light kit plate until it locks in place at the narrow section of the key holes. -
Page 18: Installing The Light Kit Assembly
INSTALLING THE LIGHT KIT ASSEMBLY NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step1. Remove one of the three outer screws and loosen the other 2 from the light kit plate.(Fig. Step2. -
Page 19: Installing The Glass Shade & Light Bulb
INSTALLING THE GLASS SHADE & LIGHT BULBS WARNING: Shut of the power supply before removing or replacing lamp. If you accidentally come into contact, wipe thoroughly with a clean, lint-free,cotton cloth. Use light bulb in accordance with the fans specification. TO REDUCE THE RISK OF FIRE DO NOT EXCEED MAXIMUM WATTAGE RATING. - Page 20 OPERATING THE REMOTE CONTROL/WALL TRANSMITTER Remote Control only: Install a A23 12 volt battery (included) . To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. Buttons: Button: Button: Full Function Remote Control Units Only These buttons are used to set the fan speeds as follows;...
- Page 21 speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE : Wait for fan to stop before changing the setting of the slide switch. Warm Weather(forward) A DOWNWARD airflow creates a cooling effect as shown in Figure18.This allows you to set your air conditioner on a warmer setting without WINTER OPERATION...
-
Page 22: Care Of Your Fan
CARE OF YOUR FAN 4.There is no need to oil your fan. The motor has permanently Here are some suggestions to help maintain your fan. 1.Because of the fan’s natural movement some connections may lubricated bearings. become loose. Check the support connections, brackets and blade 5.If your fan is provided with glass shades, clean with lukewarm attachment twice a year. -
Page 23: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan Sounds Noisy Fan will not start SOLUTION SOLUTION Allow a 24 - hour “ break in ” period. Most noises associated Check to make sure the wall switch is turned on. with a new fan will go away during this time. Check circult fuses or breakers. - Page 24 SYMPTOM SYMPTOM Lights shut off and will not come back on Fan Wobble SOLUTION SOLUTION This unit is equipped with a wattage limiting device. Lamping in NOTE:All blade sets are grouped by weight. Because wood and plastic excess of 190 watts will disable your ceiling fan’s light kit. To reset blades vary in density, the fan may wobble even though blades are your light kit you must turn the power off and re lamp, keeping the matched.
- Page 25 SYMPTOM Frequency Interference SOLUTION 1.Turn the power off to your ceiling fan. 2.Please use a small size tool to change the frequency settings on the control system. 3.Returm power to the unit. Note:After the AC power is on, do not press any other button on the transmitter before pressing the “Stop” button,doing so will cause the procedure to fail. 4.Within 60 secounds of turning the fan’s AC power ON.
-
Page 26: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. They do not include amps and wattage used by the light (s). 0.302 11.8 1852.64 12.9 14.8 2.74 ” 0.457 32.4 3315.25 For any additional information about your 0.559 66.8 5058.72 Minka Aire Ceiling fan, please write to:... - Page 27 1852.64 156.25 11.8 102.35 3315.25 32.4 5058.72 66.8 76.14...
