Summary of Contents for Minka-Aire VINTAGE GYRO

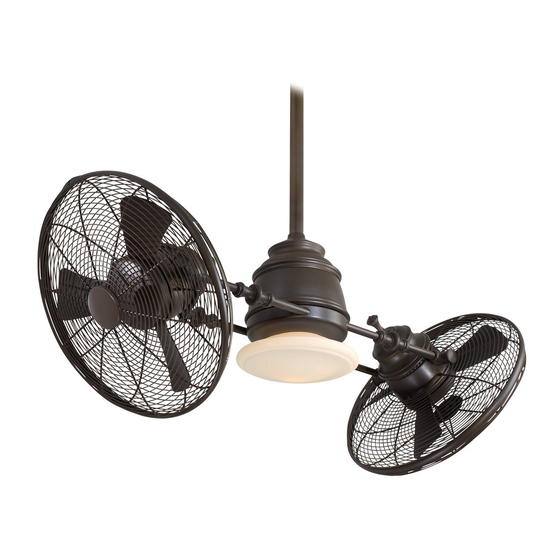

- Page 1 VINTAGE GYRO U.S. Patents: 6,832,902; 7,183,680; 7,229,255 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
- Page 3 ® return address, and a description of the claimed product defect. Pack carefully; damage sustained in return transit to Minka-Aire will be the original owner's responsibility. Original owner shall be responsible to pay all shipping charges. To obtain warranty service, you may return a fan that proves to be defective during the warranty period to the following address: ®...
- Page 4 This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and ® Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES ................... INSTALLING THE LIGHT BULB AND GLASS SHADE ....PACKAGE CONTENTS ................ADJUSTING THE TILT ANGLE ............INSTALLING THE FAN ................OPERATING YOUR REMOTE CONTROL/WALL HANGING THE FAN ................TRANSMITTER ..................ELECTRICAL CONNECTIONS ............. CARE OF YOUR FAN ................INSTALLING THE WALL TRANSMITTER ........ -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut power off at the circuit breaker of the fuse box. 2. Be cautious! Be cautious! Read all instructions and safety information before installing your new fan. Review accompanying assembly diagrams. 3. - Page 7 ATTENTION: ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically. NOTE: NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: PULL PULL Fan motor assembly 10b. Wall plate w/2 mounting screws 2. Hanger bracket 11. Extra Wall Plate w/2 Mounting 3. Canopy screws 4. Canopy cover 12. -
Page 9: Installing The Fan
To hang your fan where there is an existing fixture but no ceiling joist, you may need to install FACING BRACKET OUTLET BOX UPSIDE ® FIG. 3 FIG. 4 a hanger bar as shown in Fig. 4 (available at your Minka-Aire dealer). -
Page 10: Hanging The Fan
HANGING THE FAN Step 3. Remove hanger ball from downrod assembly by loosening set WARNING: WARNING: All of the parts, hardware and components such as the screw, removing the cross pin, and sliding ball off rod. (Fig.7) hanger bracket and hanger ball have been provided for your safety and the proper installation of your new ceiling fan. - Page 11 DOWNROD CANOPY OUTLET BOX CROSS PIN DOWNROD SET SCREWS CANOPY COVER COUPLING LOCK PIN HITCH *OMIT COUPLING COVER WHEN HANGER SET SCREW SET SCREWS REGISTRATION SUPPLY THE MINIMUM- BALL SLOT WIRES LENGTH DOWNROD DOWNROD HANGER BRACKET Fig. 5 Fig. 6 Fig.
-
Page 12: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: WARNING: To avoid possible electrical shock be sure electricity is Step 2. Motor to Receiver Electrical Connections: Connect the WHITE turned off at the main fuse or breaker box before wiring. wire from the fan to the WHITE wire marked "TO MOTOR N" from the Receiver. - Page 13 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
- Page 14 INPUT AC120V OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) WHITE GREEN OR BARE AC SUPPLY COPPER (GROUND) BLACK ("AC IN L") BLACK WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") GROUND (GREEN) GROUND GRAY (CONNECT TO GROUND (FOR CENTER MOTOR) WIRE ON HANGER BRACKE BLACK...
-
Page 15: Installing The Wall Transmitter
INSTALLING THE WALL TRANSMITTER WARNING! WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2. -
Page 16: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Remove 1 of the 2 screws from the bottom of the hanger bracket and loosen the other Outlet Box one half a turn from the screw head. Hanger Bracket Step 2. Slide the canopy up towards the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of Screw the key holes. -
Page 17: Installing The Light Bulb And Glass Shade
INSTALLING THE LIGHT BULB AND GLASS SHADE WARNING: WARNING: Shut of the power supply before removing or replacing lamp. In handling of halogen bulb, care should be taken not to touch it with your bare hands. Oil residue will shorten the life of the halogen bulb. If you accidentally come into contact, wipe thoroughly with a clean, lint-free, cotton cloth. - Page 18 To install the metal light cap follow Step 2. above. To remove the metal light cap, you must first press and then turn counterclockwise, the custom built in spring mechanism inside the light plate will push the metal light cap out of the light plate. (Fig. 18) 100W HALOGEN BULB GLASS SHADE METAL LIGHT CAP...
-
Page 19: Adjusting The Tilt Angle
ADJUSTING THE TILT ANGLE Step 1. Pull the "PULL" knob out to unlock the fan, tilt the fan body to desired location, push back the "PULL" knob to lock the fan. (Fig. 19) PULL Fig. 19... -
Page 20: Transmitter
OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. instructions apply to ceiling fans that feature a D. -
Page 21: Care Of Your Fan
CARE OF YOUR FAN Here are some suggestions to help maintain your fan. 4. Use a lint free lightly damp cloth or duster to remove dust from the blades. 1. Because of the fan's natural movement some connections may become loose. -
Page 22: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan will not start SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. - Page 23 SYMPTOM SYMPTOM Fan Wobble Lights shut off and will not come back on. SOLUTION SOLUTION NOTE: NOTE: All blade sets are grouped by weight. Because wood and This unit is equipped with a wattage limiting device. Lamping in plastic blades vary in density, the fan may wobble even though excess of 190 watts will disable your ceiling fan’s light kit.
- Page 24 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 25: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts N.W. G.W. C.F. They do not include amps and wattage used by the 0.70 2900 light(s). 14" 15.46 19.20 6.471' Medium 0.80 3400 High 0.84 1350 5050...
