AP-VP280 BcN Video Phone, Release 1.10

Connecting Composite RCA/S-VHS Video Output Port

The available video output ports are categorized by Composite RCA, S-VHS and
Component. The AP-VP280 is capable of displaying the video image to these 3 different
types of interface simultaneously. All you have to do is just find and connect the matching
type of cable. The following figure shows connecting RCA, S-VHS and Component
cables to TV.

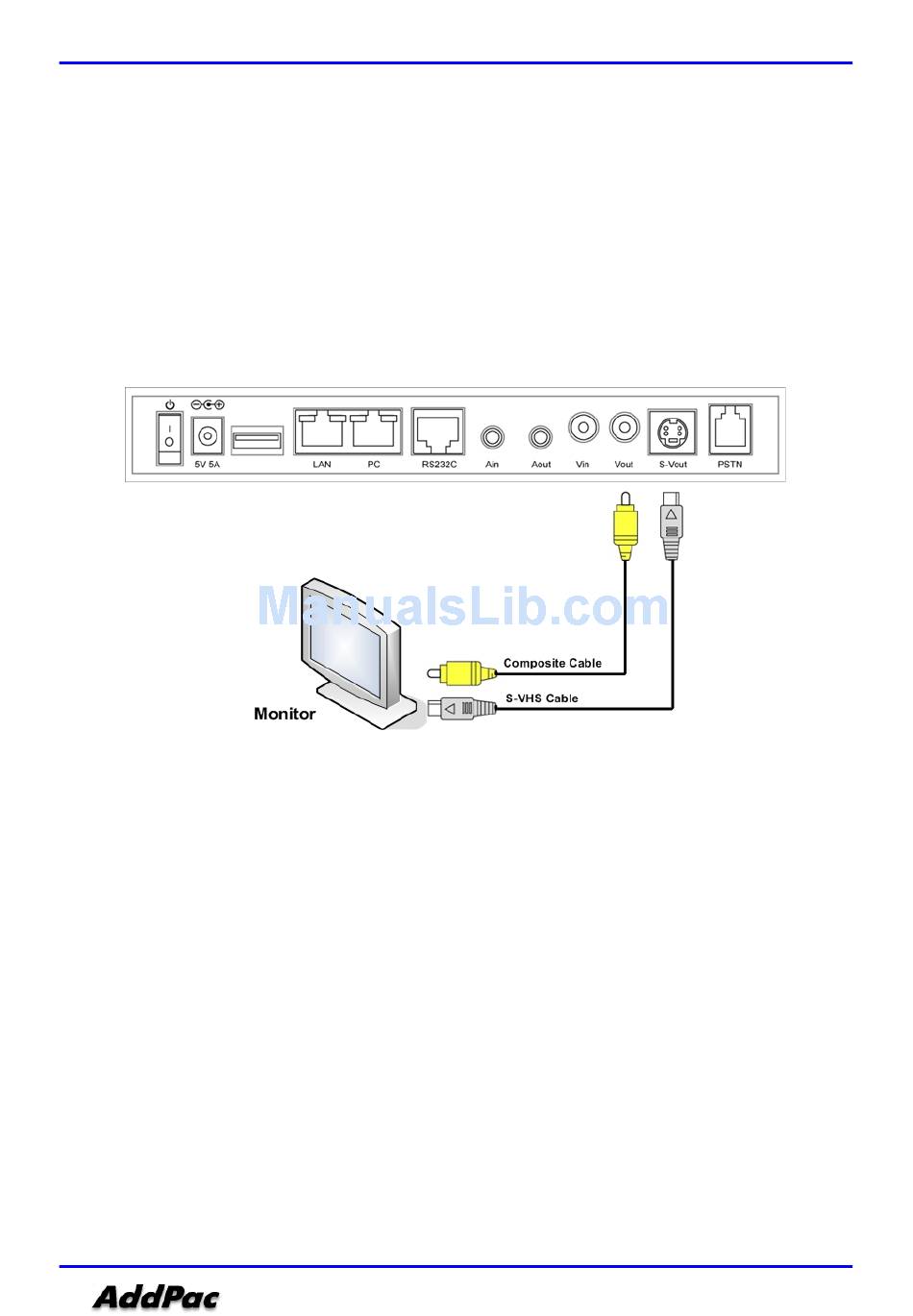

(Figure 3-7) Connecting Video Output Port
