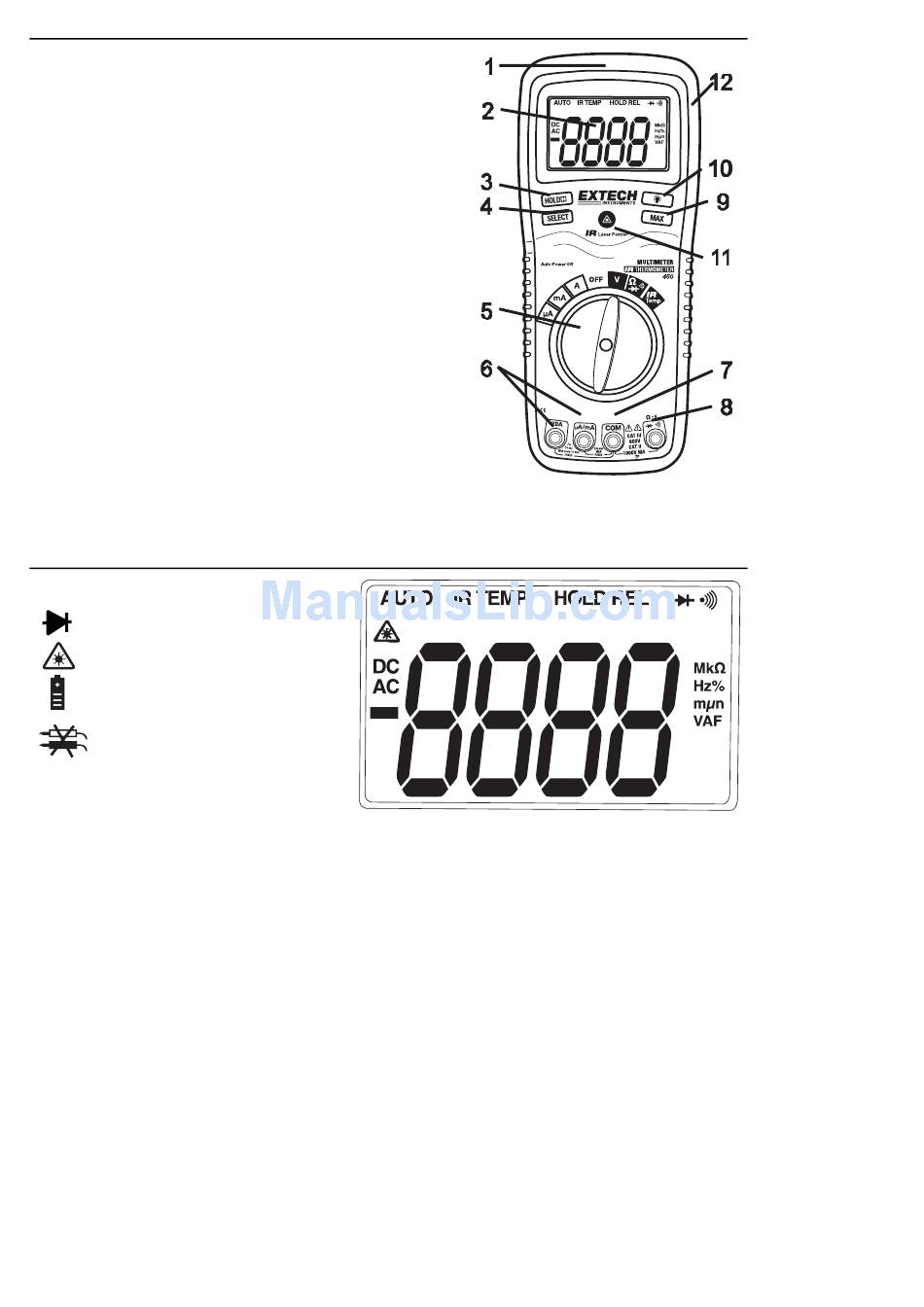

Controls and Jacks

1. IR Thermometer and laser pointer
2. 2000 count LCD display
3. HOLD button
4. SELECT button
5. Function switch
6. mA, uA and A input jacks
7. COM input jack
8. Positive input jack
9. MAX hold button (voltage and current)
10. BACKLIGHT button
11. Laser pointer button
12. Protective holster
Note: Tilt stand and battery compartment are on rear of unit.

Symbols and Annunciators

•))) Continuity
Diode test
Laser pointer
Battery status
Test lead connection
error
µ micro (10
m milli (10
3
k kilo (10
M mega (10
MAX Maximum hold
AUTO Autoranging
HOLD Display hold
ºC Degrees Centigrade
-6
) (amps)
-3
) (volts, amps)
) (ohms)
6
) (ohms)
4
A Amps
F Farads (capacitance)
Ω
Ohms
V Volts
DC Direct current
ºF Degrees Fahrenheit
EX450V5.0V 10/06
