Owner's Manual
(Model 8170)

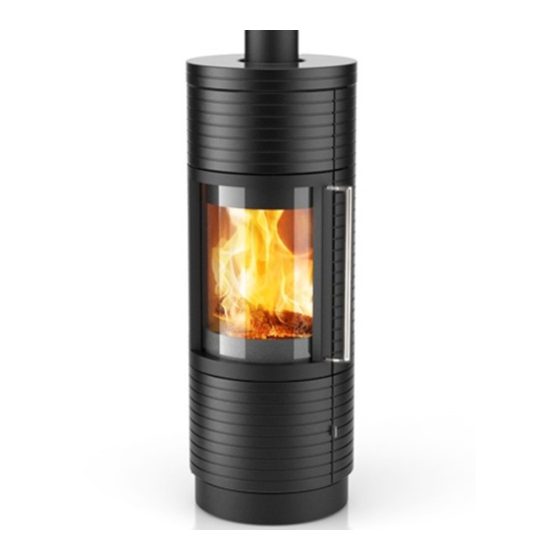

Wood Stove
OWNER'S MANUAL
INSTALLATION AND
OPERATING INSTRUCTIONS
SAVE THIS OWNER'S MANUAL
FOR FUTURE REFERENCE
PLEASE READ THIS ENTIRE OWNER'S MANUAL BEFORE YOU
INSTALL AND USE YOUR NEW BARI WOOD STOVE.
To reduce the risk of fire, follow the installation instructions.
Failure to follow these instructions can result in property damage,
bodily injury, or even death.
CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or
FIRE OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION
INSPECTION IN YOUR AREA.
Hase Bari Wood Model #8170
Manual # 6400-40459
Revised: 8/7/08
Advertisement
Table of Contents
Troubleshooting
Related Manuals for HearthStone 8170
Summary of Contents for HearthStone 8170
-
Page 1: Wood Stove
Failure to follow these instructions can result in property damage, bodily injury, or even death. CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or FIRE OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. Hase Bari Wood Model #8170 Manual # 6400-40459 Revised: 8/7/08... -
Page 2: Table Of Contents
Vermiculite Panel Replacement:........................ 20 Stone ................................20 TROUBLESHOOTING ......................... 21 ......................... 22 ROUBLESHOOTING UIDE & O ..................23 EPLACEMENT ARTS PTIONAL CCESSORIES SAFETY LABEL ............................ 24 HEARTHSTONE WOODSTOVE LIMITED WARRANTIES............25 HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 3: Introducing Your Bari Wood Stove
36 inches (92 cm) away from the stove. Never install the stove in a location where gasoline, kerosene, charcoal lighter fluid or other flammable liquids are used or stored. HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 4: Codes
Clean your chimney system as needed. (See page 18) Follow these safety precautions: Never modify this stove in any way. Never burn kiln dried, painted or treated wood in this stove. HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 5: Periodic Checklist
Various amounts of gray, charcoal, blue and green are Maximum Heat Output evident dependant on the natural composition of the stone. 35,000 per hour of cordwood (based on independent laboratory test results). HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 6: Setting Up Your Bari Wood Stove
EARTH EQUIREMENTS LOOR ROTECTION HearthStone packages your Bari stove with the greatest care so that it ships safely. Under certain circumstances, Ensure combustible flooring is protected with a covering of however, damage may occur during transit and handling. noncombustible material. The floor protection must extend... -
Page 7: Rotation Lock Install Procedure
Tang Figure 3 - Zero Index Marks Figure 4 - Remove Mounting Screw Figure 5 - Remove Control Figure 7 - Tighten Mounting Screw Figure 6 - Insert Rotation Lock HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 8: Combustible Surface Required Clearances
Centimeters 96.5 43 67.5 120.5 43 18 42 67.5 30.5 55 77.5 Unprotected Surfaces Protected Surfaces (NFPA-211) Alcove Clearances (inches) See NFPA-211 Minimum alcove width See NFPA-211 Maximum alcove depth See NFPA-211 Alcove ceiling from floor HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... - Page 9 HearthStone Quality Home Heating Products, Inc ® Bari Model 8170...
-
Page 10: Outside Air Supply
Some building officials also do not like to see any vertical To protect against the possibility of a house fire, you must rise in the duct’s termination. HearthStone recommends properly install and constantly maintain the venting system. the termination be at the same level, or lower than the air Upon inspection, immediately replace rusted, cracked, or intake on the stove. -
Page 11: Connecting The Stove To A Chimney
You can install your Bari to a prefabricated metal Do not install your stove until the chimney is safe for use. chimney, or a masonry chimney. HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... - Page 12 Access door Tee Support Bracket Chimney through outer wall with enclosed chase. One story house installation with attic. Chimney is supported by Tee Support Bracket. Chimney is supported by Ceiling. HearthStone Quality Home Heating Products, Inc ® Bari Model 8170...
- Page 13 (4 m). The maximum allowable chimney height is 30 feet Tile - at least 1" (25 mm) air space around liner (9m). Stainless steel - UL listed 6” diameter 2'-0" MINIMUM 2'-0" MINIMUM 3'-0" 3'-0" MINIMUM MINIMUM 10'-0" HearthStone Quality Home Heating Products, Inc ® Bari Model 8170...
-
Page 14: Installing I N A Mobile Home
Support Box (HUD) with built-in starter section • Permanently attach the stove to your mobile home’s floor. Use HearthStone’s Kit #91-99400 - Mobile Home Lock Down Kit. Stovepipe • Install one of the following Dura-Vent Mobile Home Chimney & Connector Kits: 6DP-MH 6”... -
Page 15: Operating Your Bari Wood Stove
Once your Bari is set in place, connected, and assembled, each fire and when full, allows you to remove the ash you are ready to light a fire. HearthStone tests each wood conveniently from your wood stove. Clear the firebox of stove before we ship it, so you will easily light your first fire. -
Page 16: Choosing Firewood
"The spaces between the logs should be large enough for a mouse to get through, but not for the cat that's chasing it." CAUTION: Do not store firewood within the stove's specified clearances to combustible materials. HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 17: Normal Operation
The lid must be stored under firebox, or about ¼ to ½ the way in. HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 18: Maintenance
When burning wood, inspect the chimney connector and We recommend you only use HearthStone Hase Collection chimney at least once every two months during the heating replacement gaskets and adhesive when you need to replace season to determine if there is a creosote buildup. -
Page 19: Latch Adjustment Procedures
Contact your local dealer for replacement glass. The glass kit includes instructions and everything needed for the repair. If you replace the glass yourself, wear work gloves and safety Figure 10 Latch Assembly Detail glasses. HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 20: Glass Replacement Procedures
If you ERMICULITE ANEL EPLACEMENT observe a completely broken stone, contact your dealer for service. Remove packing material from spaces along front edges of the outer left and outer right panels. HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 21: Troubleshooting
An "AIRTIGHT" HOUSE: The air supply (infiltration) to floor window briefly will help quickly get draft established. the interior of the house may be inadequate if your home is super-insulated or especially well sealed. This phenomenon HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 22: Troubleshooting Guide
Do not over-fire the stove. Monitor stove temperatures. Use FINISH seasoned wood only. Excessive Draft Check the DRAFT. A damper may be required. Operate the stove at a LOW BURN range. HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 23: Replacement Parts & Optional Accessories
SIDE PANEL (4 EA) 180-240-V TOP PANEL OPTIONAL ACCESSORIES 91-53700 OUTSIDE AIR KIT 91-99400 MOBILE HOME BOLT DOWN KIT STONE 1141-820-149-V RIGHT STONE PANEL 1141-820-150-V LEFT STONE PANEL 1141-820-148-V TOP STONE RING HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 24: Safety Label
Safety Label HearthStone Quality Home Heating Products, Inc ® Bari Model 8170... -
Page 25: Hearthstone Woodstove Limited Warranties
HEARTHSTONE WOODSTOVE LIMITED WARRANTIES HearthStone Hase Collection Wood Stove Warranty 2-year limited warranty HearthStone warrants the following parts of the Stove against the following occurrences that result from defects in material or workmanship: Ceramic glass against cracking due to thermal shock. - Page 26 Notes: HearthStone Quality Home Heating Products, Inc ® Bari Model 8170...
