LED Fusing Considerations
Although the average current draw per module is very low, due to the type of circuit used to power each module, the instantaneous
peak current to a module can be significantly higher during low voltage conditions. To avoid prematurely blowing ATO style fuses or
tripping breakers it is recommended the following rule-of-thumb be used to size fuses or breakers. This is especially important in light
bars with many LED modules running off a single fused source,
Minimum fuse size calculation:
For LED 12 volt electrical current only
1.5 x (number of modules being fused)
Example: 2 intersection modules and 6 directional modules.
Minimum fuse requirement for single fuse - 1.5 (8) = 12 A
For MR8 takedown and fan 12 volt electrical current only
Total wattage (1 MR8's = 35W, fan = 5W) divided 12volts = Amperage
Example: 2 MR8's and 1 fan = (75W/12) = 6.25 A
Total 12 volt electrical current
12A (for LED's) + 6.25A (for MR8's and fan) = 18.25 A
Product Features
LED-X light head options:
6 LED Optix light head options:
3 LED Optix light head options:
33 Optix light head options:
LC-LED light head options:
MR8 Specs: 35w Halogen with 13° spot
Size: 45.50" long x 2.18" tall x 7.95" deep
Weight: 7.5 lb
WARNING!
!
MR8 Takedown Light Assembly
Refer to Figure 13 for lamp replacement. Remove the lamp assembly from the product by disconnecting the two electrical wires and
removing the appropriate fastener. Remove the fastener clamping the lamp and then remove the lamp from the mounting bracket.
Disconnect the lamp from the ceramic connector and reinstall a new lamp. The lamp lens should be cleaned to remove fingerprints then
reinstall the lamp assembly in the light bar and reconnect the electrical wires. Reassemble the components in reverse order.
Lamps are extremely hot! Allow to cool completely before attempting to remove. Gloves and eye
!
protection should be worn when handling halogen lamps as they are pressurized and accidental
WARNING!
breakage can result in flying glass.
Red, Blue, Amber, White;
Directional or Wide Optics;
Flashing or Steady Burn Control
Red, Blue, Amber, White;
Directional or Wide Optics;
Flashing or Steady Burn Control
Red, Blue, Amber, White;
Directional, Wide or Hybrid Optics;
Flashing or Steady Burn Control
Two 3-LED Heads with one 6-LED Optic
Red, Blue, Amber, White;
Directional , Wide or Hybrid Optics;
Flashing or Steady Burn Control
Red, Blue, Amber;
Flashing or Steady Burn Control
This Product contains high intensity LED devices. To prevent eye damage, DO NOT stare into
light beam at close range.

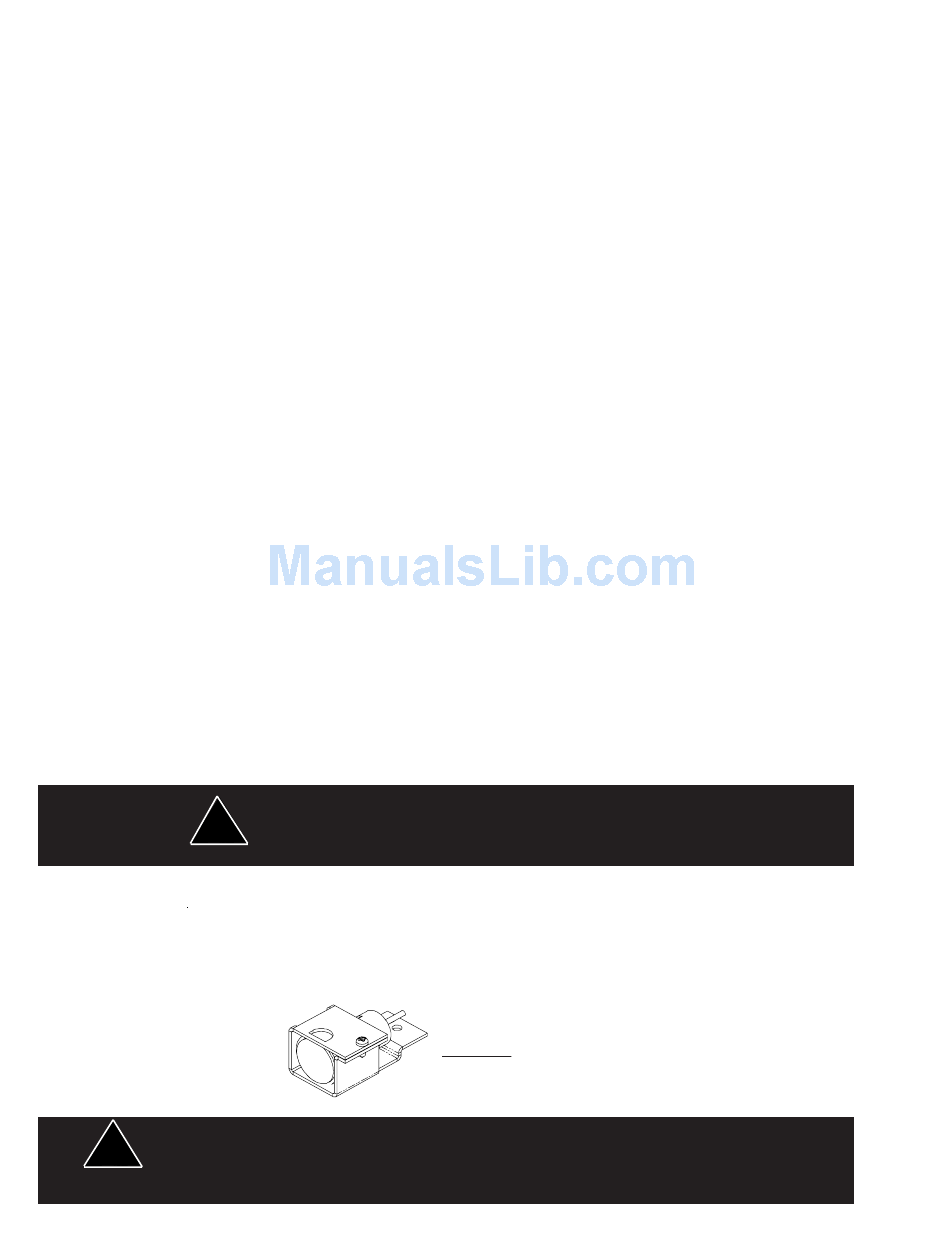

FIGURE 13
