Connecting the Display

2.4
1. Turn off the PC and the LCD Monitor before making any connections.
2. Use the supplied VGA cable to connect the VGA connector of the LCD Monitor to the VGA
port of the PC system.
3. Use the supplied audio cable to connect the "Audio in" jack on your LCD Monitor and the
PC sound card's "Audio out" or speaker jack.
4. Connect the male end of the power cord into a wall socket and the female end to the
Monitor.
5. If your LCD Monitor has a touch screen and USB interface, use the supplied USB cable to
connect the USB connector of LCD Touch Monitor to the USB port of the PC system.
Remember to follow proper software driver installation.
6. If your LCD Monitor has a touch screen and RS232 serial interface, unplug the PC keyboard
and reconnect it to the supplied serial cable power adaptor. Connect the other end of the
adaptor to the keyboard connector on the PC. Connect the serial D-connector to and
standard PC serial comport. Connect the other end or the serial interface cable to the
Monitor.
7. Turn on your computer, and then turn on your LCD Monitor.
VT150 High Bright User Guide

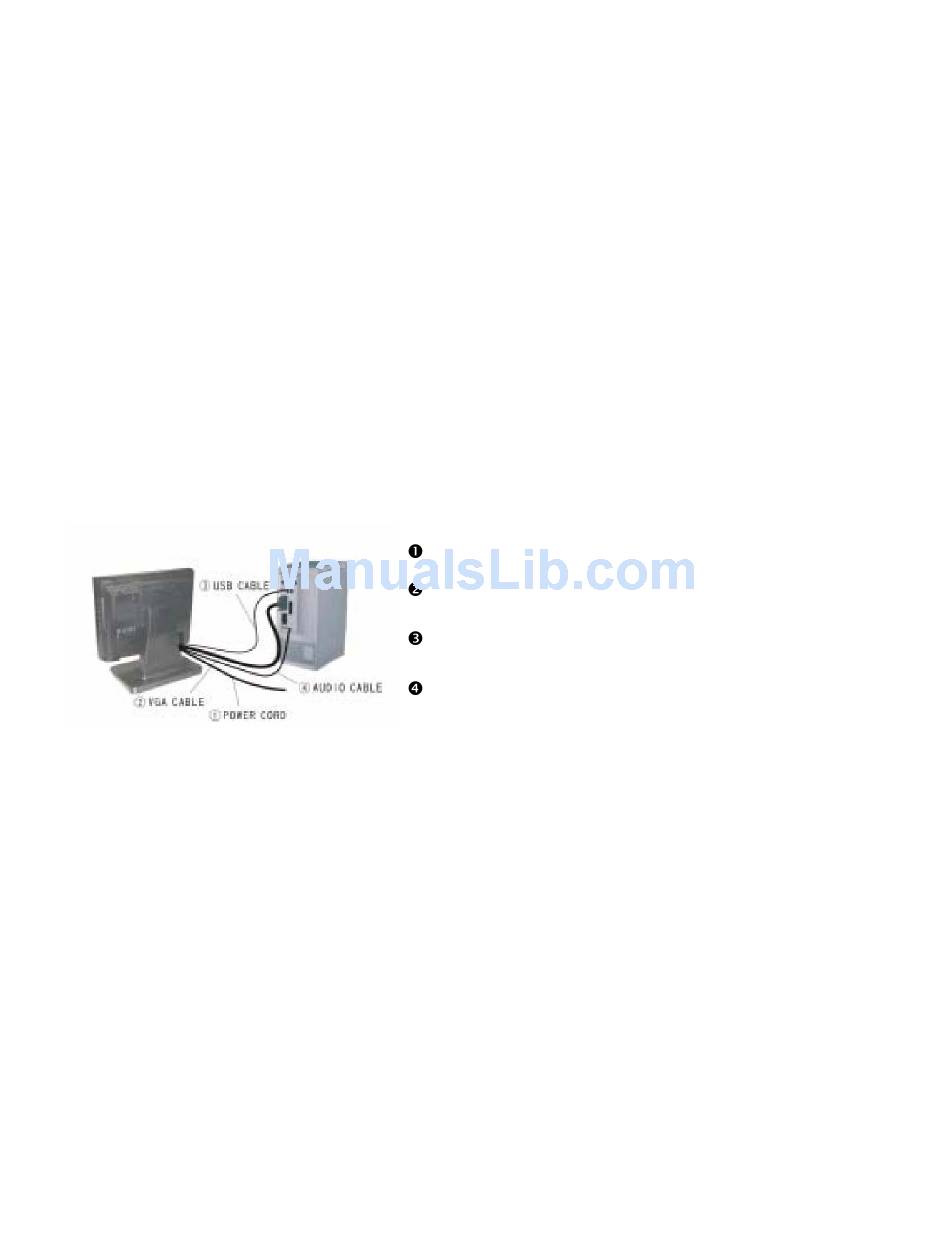

Power
Input 1
Input 2
(Touch Function)
Audio In
6
Plug the power cord in.
Connect with detachable VGA
cable.
Connect to USB/RS232 cable
Connect with PC sound card.
