Connecting the Display
To set up the display, ensure that the power is turned off to the display,
computer system, and other attached devices, then follow these steps:
1.
Place the display in a convenient, well-ventilated location near your
computer.
2.
Connect the signal cable.
Connecting the DVI-D digital signal cable
Connect the end of DVI signal cable to the DVI port
display. Connect the other end to the DVI port on the rear panel of the
computer and tighten the screws.
Connecting the Dsub analog signal cable
Connect the end of Dsub signal cable to the Dsub port
the display. Connect the other end to the Dsub port on the rear panel of the
computer and tighten the screws.
3.
Connect the plug from the AC adapter into the back of the display.

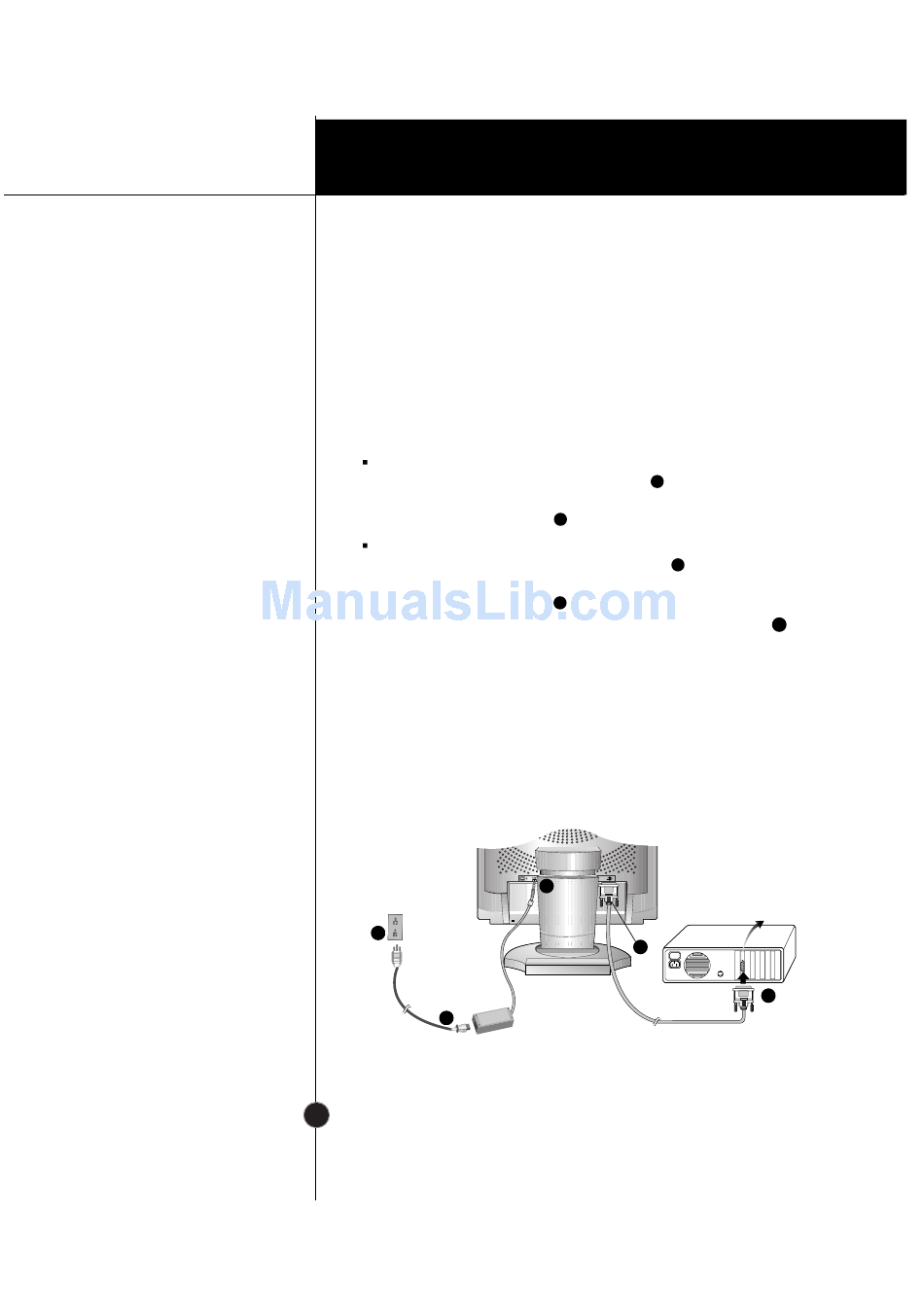

Figure 1
5
4
Power Cord
A4
Figure 1
.....
1
on the rear panel of the
2
Figure 2
.....
1
2
3
1
Signal Cable
AC adapter
Installation
on the rear panel of
3
There should be a
DVI port on the
computer
2
DVI-D
