Model #: 22-PS311
Important: Keep this owner's manual; do not discard in case you need to contact Pacific Cycle, Inc.
in the future. Should there be a change of ownership, please transfer this manual to the new owner to
ensure proper assembly and safety.
Pacific Cycle, Inc. warrants this product to be free of defective materials and workmanship for 90 days from
the date of original purchase.
THIS LIMITED WARRANTY IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT,
AND IS EXPRESSLY IN LIEU OF ANY OTHER WARRANTY. ANY IMPLIED WARRANTIES,
INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS
FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
EXPRESS WARRANTY. This limited warranty gives you specific legal rights and you may also have
other rights which may vary from state to state. This warranty is extended only to the original consumer
purchaser for non-commercial use.
PACIFIC CYCLE, INC. IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. THIS LIMITED WARRANTY DOES NOT COVER ANY PERSONAL INJURIES,
DAMAGE TO, OR FAILURE OF THE PRODUCT OR ANY OTHER LOSSES DUE TO ACCIDENT,
ABUSE, MISUSE, ALTERATION, NEGLECT, NORMAL WEAR AND TEAR, RUST, IMPROPER
ASSEMBLY, IMPROPER FIT, IMPROPER MAINTENANCE OR USE OF UNAUTHORIZED
REPLACEMENT PARTS NOT DESIGNED FOR THE PRODUCT.
1
Owner's Manual and Assembly Instructions
90 DAY LIMITED WARRANTY

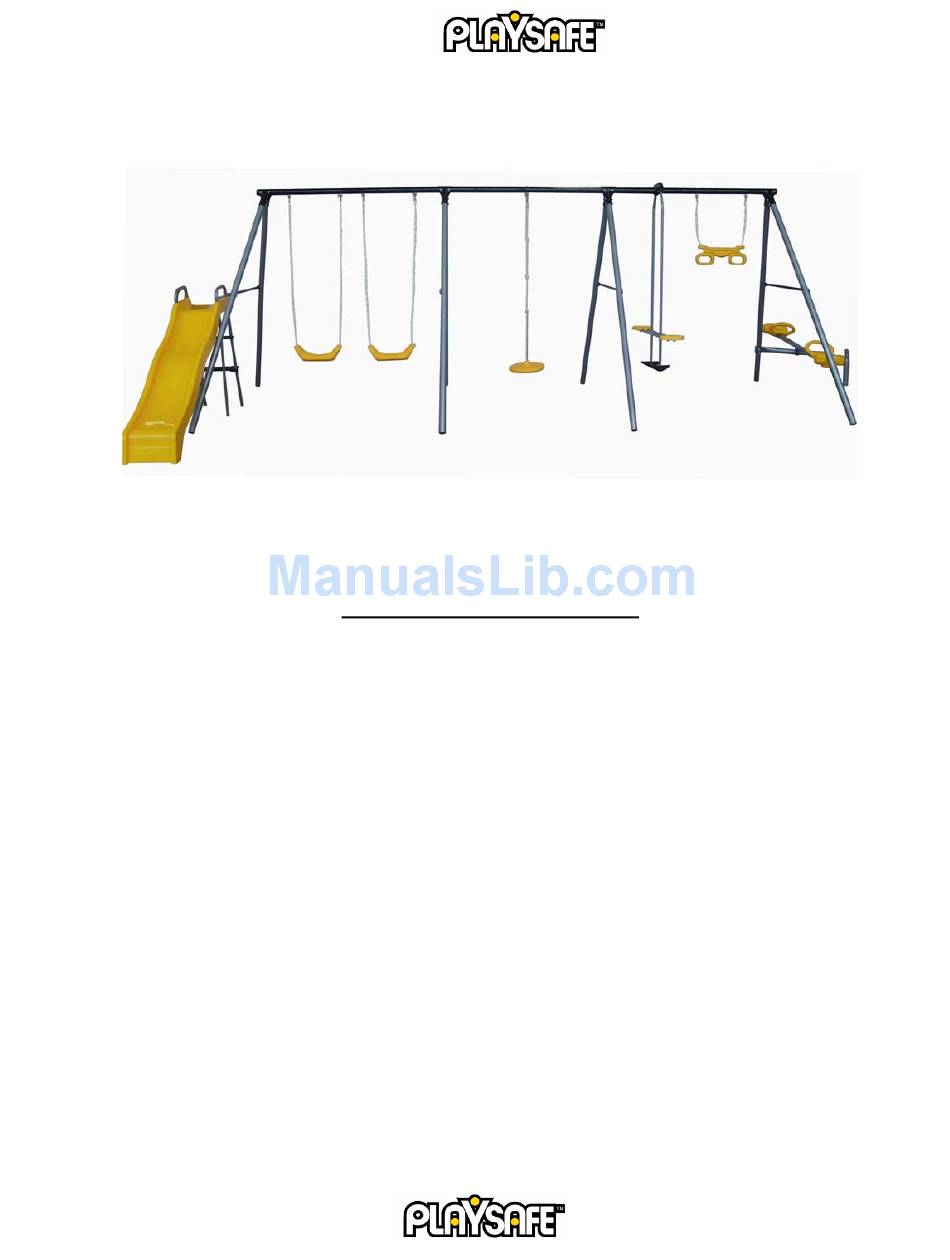

Model Name: Westport 8-Leg Swing Set
Manual Issued: April, 2009
2007 Pacific Cycle, Inc.
©
Advertisement
Table of Contents
Related Manuals for PlaySafe 22-PS311
Summary of Contents for PlaySafe 22-PS311
- Page 1 90 DAY LIMITED WARRANTY Pacific Cycle, Inc. warrants this product to be free of defective materials and workmanship for 90 days from the date of original purchase. THIS LIMITED WARRANTY IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT, AND IS EXPRESSLY IN LIEU OF ANY OTHER WARRANTY.
- Page 2 To make claim under warranty, notification of such defect must be given to Pacific Cycle, Inc. By calling the phone number below, you will be instructed on how the product or part needing replacement should be shipped postpaid to Pacific Cycle, Inc.
-
Page 3: Warnings And Safety Information
ROPE OR CORDS AND OTHER CHAINS AS THESE POSE A POTENTIAL STRANGULATION HAZARD • WHEN DISPOSAL OF THE SWING SET BECOMES NECESSARY FULLY DISASSEMBLE AND KEEP PARTS OUT OF REACH FROM CHILDREN UNTIL THEY CAN BE SAFELY HAULED AWAY 2007 Pacific Cycle, Inc. ©... -
Page 4: Proper Use
The information is intended to assist in comparing the relative shock-absorbing properties of various material. No particular method is recommended over another. However, every material is only effective when properly maintained. Materials should be 2007 Pacific Cycle, Inc. ©... -
Page 5: Care And Maintenance
Leg Fittings Trapeze with Chains Support Bars See-Saw Glider Name Each Name Each Seats Glider Poles (vertical) with Foot Rests See Saw Bar Glider Poles (horizontal) with Seats Support Bar Glider Frame Attachment Ground Extension 2007 Pacific Cycle, Inc. ©... -
Page 6: Main Frame Assembly
Remove the hardware, connect the top bar sections through the leg fitting, align the holes, and reinsert the hardware. NOTE: The top bar section which has only one hook attached should be placed in the middle. 2007 Pacific Cycle, Inc. ©... - Page 7 NOTE: One support bar has holes for the slide attachment. The holes should be positioned toward the front of the swing set. 2006 Pacific Cycle, Inc. ©...
- Page 8 Repeat the process for the other side. NOTE: The curved portion of the pole is the top and it should face the inside of the swing frame. 2006 Pacific Cycle, Inc. ©...
- Page 9 Once fully assembled, check that the glider Part Ref. #: PSHW21, PSHW36 swings freely. If it does not, make sure that the bolts holding the vertical poles to the top bar attachment are not overly tightened. 2006 Pacific Cycle, Inc. ©...
-
Page 10: Slide Assembly
SLIDE ASSEMBLY Required Parts: Slide x1 Rail/Ladder Leg x2 Front Leg x2 Ladder Step x2 Link Bar x2 Proper Placement: Slide Assembly Correct Location Incorrect Location Pre-Assembled Parts: 2006 Pacific Cycle, Inc. ©... - Page 11 TIP: In order to keep the slide legs from sinking into the ground, place a flat rock or a brick under the legs. You should dig out a place for the brick so the slide remains even. 2006 Pacific Cycle, Inc. ©...
- Page 12 Install the seats on the see-saw bar. Check Part Ref. #: PSHW16 the nuts and bolts on the seat so that they are secure. 2006 Pacific Cycle, Inc. ©...
- Page 13 Check all parts on all rides before allowing a child on the swing set. • Be sure to check and tighten the hardware on a regular basis to ensure the safety of the users. Your Playsafe™ Westport Swing Set should now be fully assembled! 2006 Pacific Cycle, Inc. ©...
