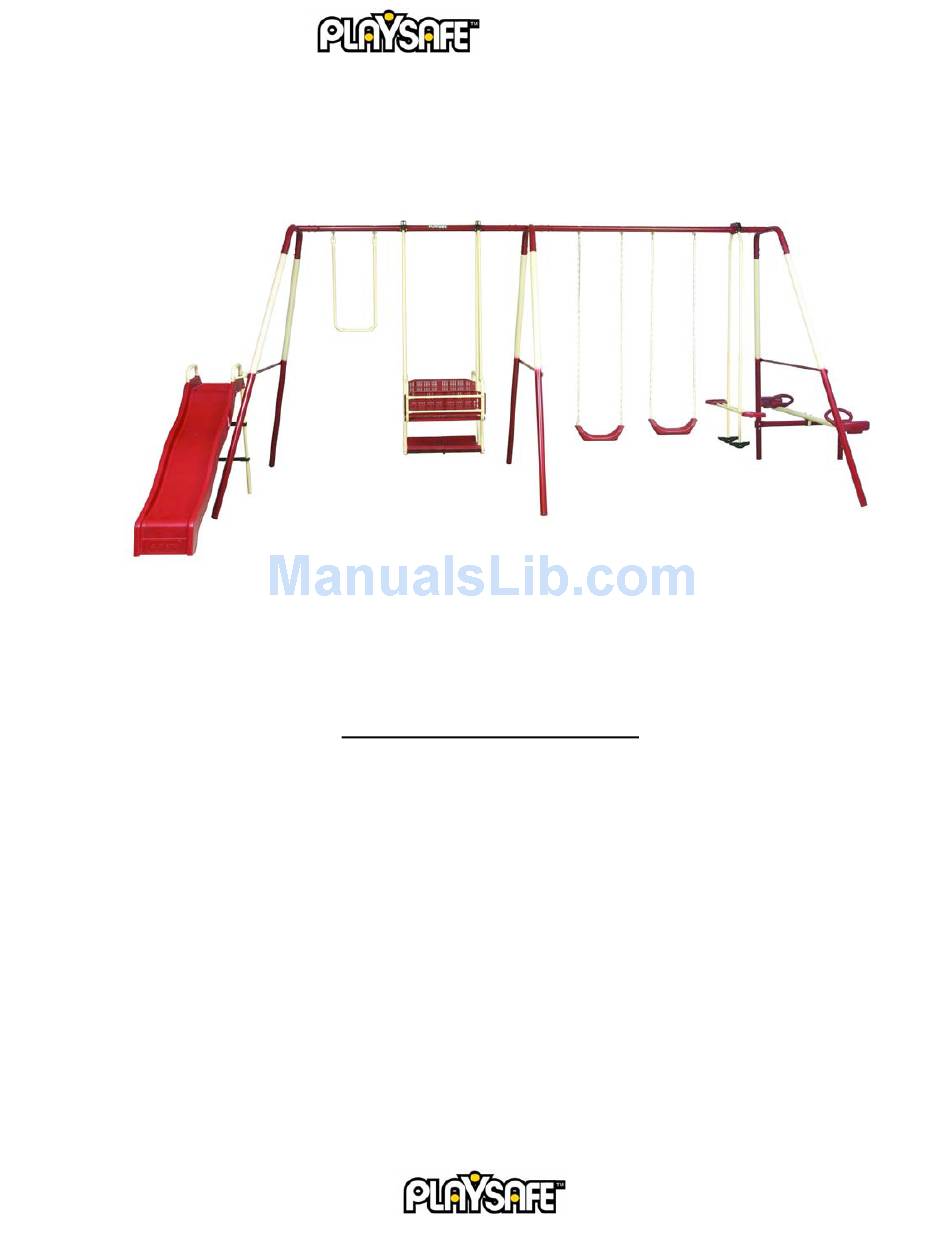

PlaySafe Middleton Swing Set Owner's Manual And Assembly Instruction

Middleton swing set
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model #: 22-PS300S
Important: Keep this owner's manual; do not discard in case you need to contact Pacific Cycle, Inc.
in the future. Should there be a change of ownership, please transfer this manual to the new owner to
ensure proper assembly and safety.
Pacific Cycle, Inc. warrants this product to be free of defective materials and workmanship for 90 days from
the date of original purchase.
THIS LIMITED WARRANTY IS THE ONLY WARRANTY APPLICABLE TO THIS PRODUCT,
AND IS EXPRESSLY IN LIEU OF ANY OTHER WARRANTY. ANY IMPLIED WARRANTIES,
INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS
FOR A PARTICULAR PURPOSE, IS LIMITED IN DURATION TO THE DURATION OF THIS
EXPRESS WARRANTY. This limited warranty gives you specific legal rights and you may also have
other rights which may vary from state to state. This warranty is extended only to the original consumer
purchaser for non-commercial use.
PACIFIC CYCLE, INC. IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES. THIS LIMITED WARRANTY DOES NOT COVER ANY PERSONAL INJURIES,
DAMAGE TO, OR FAILURE OF THE PRODUCT OR ANY OTHER LOSSES DUE TO ACCIDENT,
ABUSE, MISUSE, ALTERATION, NEGLECT, NORMAL WEAR AND TEAR, RUST, IMPROPER
ASSEMBLY, IMPROPER FIT, IMPROPER MAINTENANCE OR USE OF UNAUTHORIZED
REPLACEMENT PARTS NOT DESIGNED FOR THE PRODUCT.
1
Owner's Manual and Assembly Instruction
90 DAY LIMITED WARRANTY
Middleton Swing Set
Model Name: Middleton Swing Set
Manual revision: 4/2006
2006 Pacific Cycle, Inc.
©

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Middleton Swing Set and is the answer not in the manual?

Questions and answers

Related Manuals for PlaySafe Middleton Swing Set

Summary of Contents for PlaySafe Middleton Swing Set

  • Page 1 Middleton Swing Set Owner’s Manual and Assembly Instruction Model #: 22-PS300S Model Name: Middleton Swing Set Manual revision: 4/2006 Important: Keep this owner’s manual; do not discard in case you need to contact Pacific Cycle, Inc. in the future. Should there be a change of ownership, please transfer this manual to the new owner to ensure proper assembly and safety.

  • Page 2: Warnings And Safety Information

    1-800-242-6110 Monday – Friday 8am-5pm CST Please contact the Playsafe™ customer service team if you have any questions about our product, need assembly assistance or need replacement parts for the swing set. You may also contact us by mail: Playsafe™ Customer Service...

  • Page 3: Proper Use

    ANCHORING ANCHORING is necessary to prevent tipping, lifting, and overturning. Playsafe™ recommends anchoring the swing set in concrete, especially in soft or sandy soil. When this is not possible, anchors can be purchased by calling 1-800-242-6110. To anchor the swing set in concrete, dig a hole at least 5” deep and 10” to 12” in diameter. Place the swing set leg in the hole, preferably on a brick or stone to keep if from sinking.

  • Page 4: Care And Maintenance

    The following table lists the maximum height from which a child would not be expected to sustain a life-threatening injury in a fall onto four different loose-fill surfacing materials if they are installed and maintained at depths of 6, 9, and 12 in. However, all injuries due to a fall can not be prevented no matter what surfacing materials are used.
  • Page 5 PRE-ASSEMBLED HARDWARE For easier assembly, Playsafe™ has pre-assembled some of the parts for you. Most of the screws and bolts should already be in place. If removal of this hardware is required for certain assembly steps, it should be replaced in its original position.

  • Page 6: Main Frame Assembly

    MAIN FRAME ASSEMBLY Required Parts: Top Bar x2 Leg x6 Support Bar x3 Corner Fitting x2 Center Fitting x1 Pre-Assembled Parts: • Swing and trapeze hooks should be in place on the top tube. • Hardware for legs should be in place in the corner fittings. •...
  • Page 7 Remove the hardware from the corner Part Ref. #: PSHW10 fitting prongs. Align the two sets of holes for each leg and replace the hardware through the corner fitting prongs to secure the legs. Do not over tighten the screws. After all parts are assembled you will need to tighten again.
  • Page 8 Step Illustration Instructions Hardware Reference Secure the glider attachment with the V- Part Ref. #: PSHW35, PSHW22 screw and the bolts at the squared portion of the top bar. NOTE: The glider must be positioned adjacent to the outside legs. Attach the two vertical poles to the glider Part Ref.
  • Page 9 Once fully assembled, check that the glider Part Ref. #: PSHW21, PSHW36 swings freely. If it does not, make sure that the bolts holding the vertical poles to the top bar attachment are not overly tightened. SEE-SAW ASSEMBLY Required Parts: See-Saw Bar and Extension Frame Attachment Support Attachment...
  • Page 10 Secure the frame attachment to the leg of Part Ref. #: PSHW10 the frame with the hardware provided on the leg. NOTE: Be sure that the see-saw frame attaches to the leg on the opposite side of the slide. If the leg with the holes is near the support bar with the slide attachments, it should be moved to the other end.
  • Page 11 Check the nut and bolt on the swing seat to make Part Ref. #: PSSH11, PSHW13 sure that they are secure. LAWN SWING ASSEMBLY Required Parts: Lawn Swing Attachment x2, Vertical Pole x4, Foot Plate x2, U-Shaped Hand Rail x4, Seat Support Bar x8, Seat/Backrest x4 Assembly drawing Completed Swing Step...
  • Page 12 If not, the poles need to be placed on the opposite sides. Join the two footrest sections by twisting them together until the Playsafe™ logo aligns. Insert the foot plate support bar through the footrest.

  • Page 13: Slide Assembly

    Lay the seat over the seat support bars. Part Ref. # PSHW17 Using the hardware provided on the U- shaped hand rails, attach the seats and seat support bars to the U-shaped hand rail. Using the hardware provided on the U- Part Ref.
  • Page 14 Proper Placement: Slide Assembly Correct Location Incorrect Location Pre-Assembled Parts: • The screws and bolts for the slide rail/ladder legs are inserted on the slide. They will need to be removed prior to inserting the legs into the slide. • The ladder steps should have screws and nuts installed.
  • Page 15 Check all parts on all rides before allowing a child on the swing set. • Be sure to check and tighten the hardware on a regular basis to ensure the safety of the users. Your Playsafe™ Middleton Swing Set should now be fully assembled! 2006 Pacific Cycle, Inc. ©...
