Installing Ceiling Hardware

1. Drill two (2) 1/4" diameter holes 2-9/16" apart through the back of the outlet box into the cross
brace 2" deep. These holes are for the U-bracket bolts. Install rubber bushing and pin into the
u-bracket. Use a 3/8" wrench to install the (2) 3 1/2" lag bolts to secure the U-bracket to the joist
(see Fig. 2).

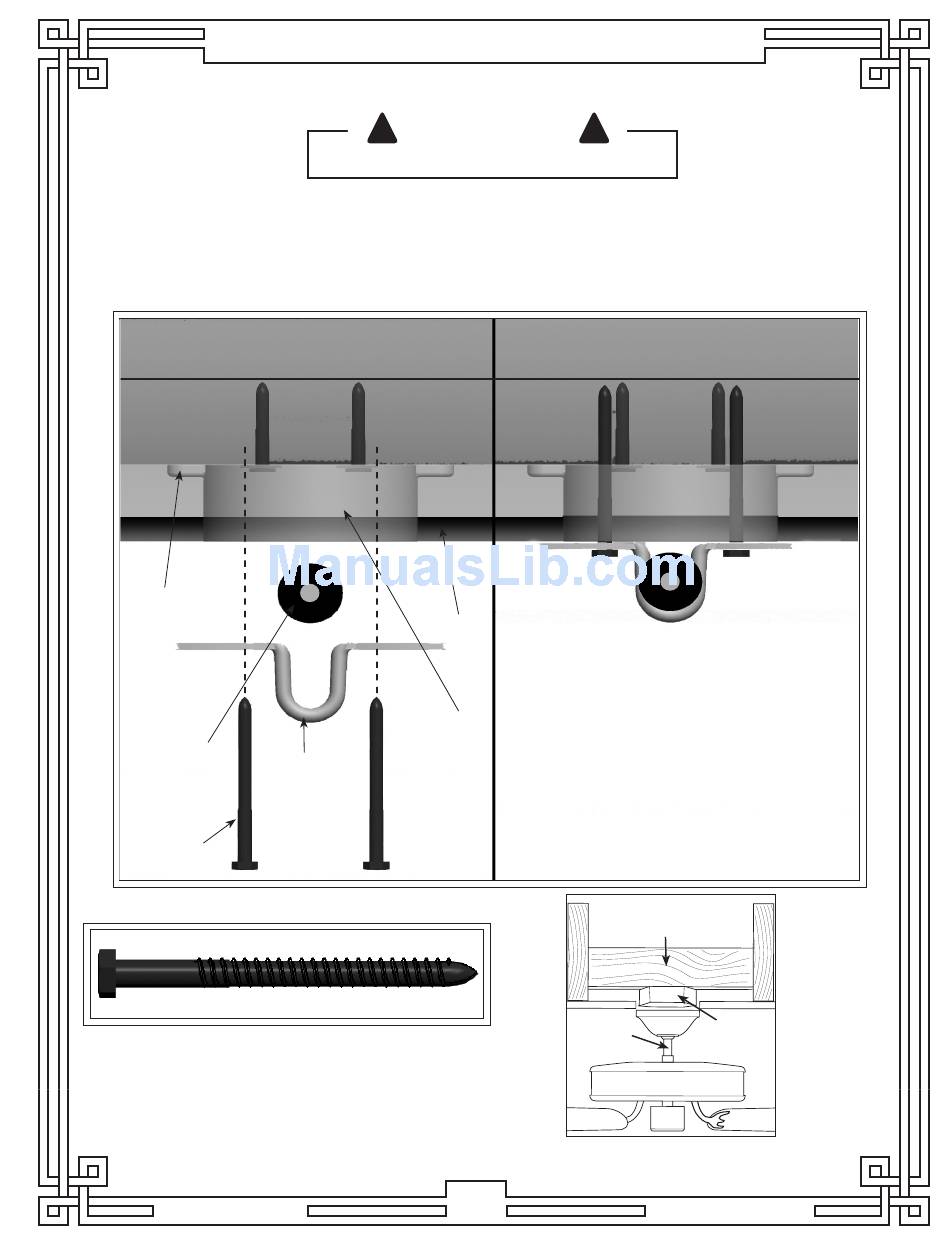

Exploded View
Cross
Brace
Rubber
Bushing
U-Bracket
and Pin
Lag Bolt
Fig. 2
Hunter Fan Company
! CAUTION
DO NOT USE LUBRICANT ON SCREWS
Ceiling
Outlet
Box
3 1/2" Lag Bolt
Use Standard Mounting or Low-Profile Mounting to
6
!
Installed View
Support
Structure
Ceiling
Standard
Outlet Box
Mounting
(required)
Style
hang the fan from a flat ceiling.
