2 • Installing the Light Kit on a Removable Switch Housing (Continued)
7 . Remove the wire connectors from the two wires in the switch housing
labeled "Connect Light Here" or "For Light Use . "
To connect the wires, hold the bare metal leads together and place a
wire connector over them, then twist the wire connector clockwise
until tight .
Connect the black wire with a white stripe from the switch housing
to the black wire from the light kit . Connect the white wire from the
switch housing to the white wire from the light kit . Secure all wire
connections using wire connectors .
CAUTION: Be sure no bare metal wires or wire strands are visible after
making the connections .
8 . Reconnect the 9-pin plug connector .
9 . Reinstall screws to reattach the lower switch housing to the upper
switch housing .
10 . Go to the instructions for Installing the Bulbs, Chains, and Globe .

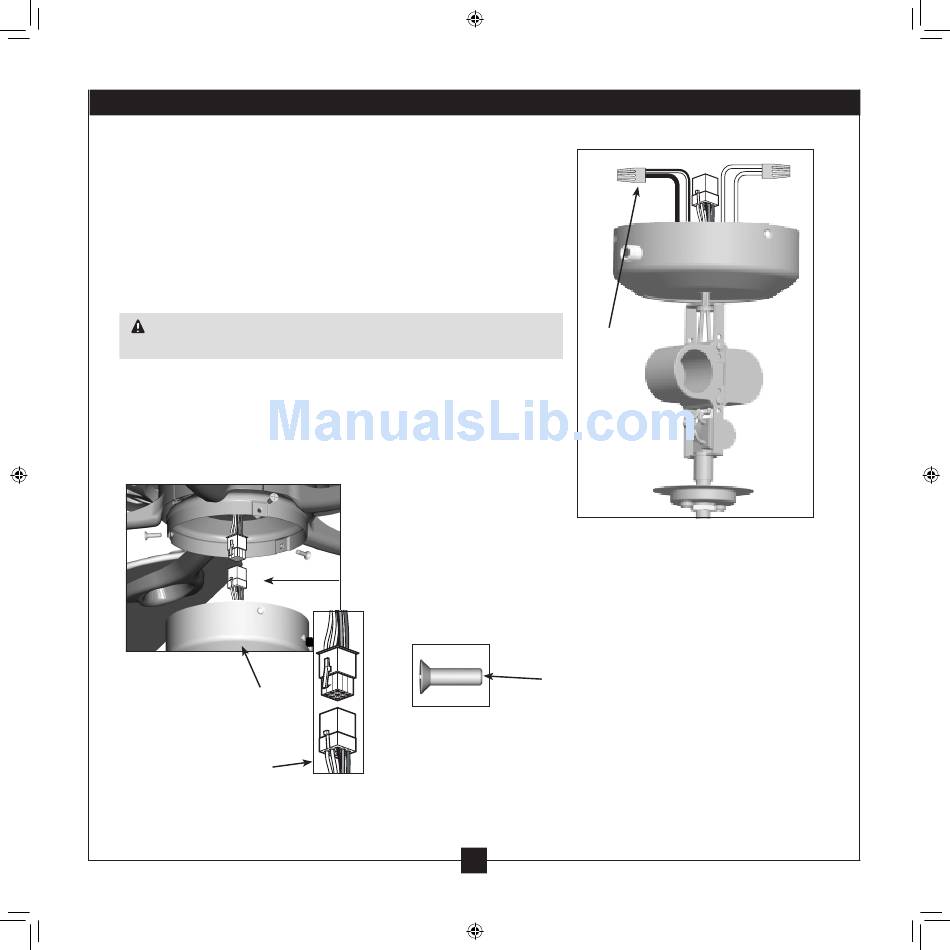

Step 8
Lower Switch
Housing
Plug
Connector
Detail
Plug
Connector
7
43550-01 • 06/10/10 • Hunter Fan Company
Wires
and Wire
connectors
Step 7
Housing
Assembly Screw
