Pyle Pro PYD 2200 Owner's Manual

Specifications

PYD2200
Input Sensitivity/Impedance
Mic 1-2 1.5 mV/600 Ohms, bal/unbal
Phono 1-2 3.0 mV/50K Ohms
Line 1-9 150 mV/27K Ohms
Output Level
Amp 2.0 V/10kOhms
Booth 2.0 V/10kOhms
Record 150mV/10kOhms
Frequency Response 20Hz – 20kHz +/- 3 dB
S/N Ratio (at 1 kHz)
Mic >60 dB/1.5mV input
Phono >70 dB/3.0mV input
Line >80 dB/150 mV input
Distortion
Mic 0.20%
Phono 0.05%
Line 0.03%
Limited Warranty
All PYLE PRO products are carefully constructed and tested before shipment.
Units purchased in the USA are warranted to be free of defects in material
and workmanship for two (2) years from the date of purchase. This warranty
is limited to the original retail purchaser of the mixer.
Should the unit fail due to factory defects in material or workmanship, your
unit will be repaired or replaced at the sole discretion of PYLE.
To obtain warranty service, you must first call our Consumer Return Hotline
at (718) 236-6948 to obtain a Return Authorization Number. This R.A. # must
appear on the outside of your package and on all paperwork relating to your
return.
When returning the unit to us for warranty service, it must be carefully
packed and shipped, prepaid, to:
Please complete warranty card, detach and return
Thank you for purchasing this PYLE
product. To activate your
warranty registration card
warranty, please mail this card
within 10 days.
PYLE PRO MIXERS
Name
Address
City, State ZIP
Model No. Serial #
(if available)
Date of Purchase
Purchased at:
Music Products Store Sound Contractor/Installer
Catalog Merchandiser Other
High 10kHz; +12/-12dB
Mid 1 kHz; +12/-12dB
Low 100Hz; +12/-12dB
MIC Tone Control
High
10kHz; +10/-10dB
LOW
100Hz; +10/-10dB
Talkover Attenuation
-16dB
Power Source 120 VAC, 60Hz/230 VAC, 50 Hz
Dimensions, inches 19.0 x 4 x 7
(482 x 101.6 x 177.8)
(mm)
R.A.#: _____________
PYLE PRO Service Center
1600 63rd Street
Brooklyn, NY 11204
You must also include the following items with your return:
• A copy of your sales receipt or other proof of purchase
• A brief letter, indicating the problem you are experiencing with the product
• Include in your letter your return address, daytime phone number and R.A. number
• Also include a check or money order for $18.00 for return
shipping, handling and insurance, or provide your Visa/MC number with expiration date.
Our obligation under this warranty is limited to the repair or replacement
of the defective unit when it is returned to us prepaid. This warranty will
be considered void if the unit was tampered with, improperly serviced or
subject to misuse, neglect or accidental damage.
www.pyleaudio.com
9 – Pyle Pro Mixer Owner's Manual
Mail Order

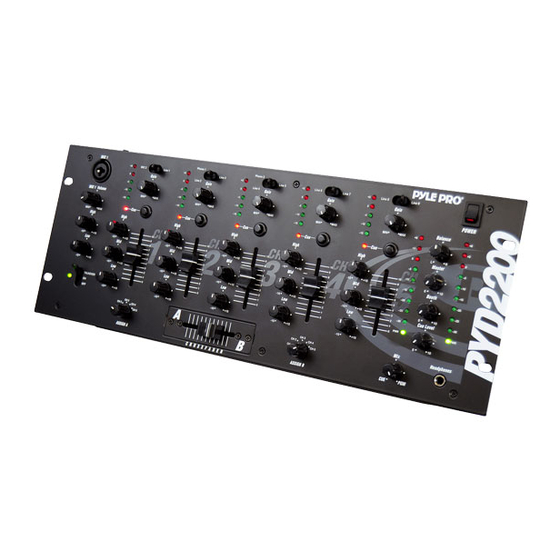

PYD 2200
5 channel
professional
mixer
