Summary of Contents for Pyle Pro PYD-1002
- Page 1 PYD-1002/PYD-1005...
- Page 2 Set up and used properly, you can expect years of trouble-free service from this product. Owner’s Manual Table of Contents Input/Output Features Features and Controls: PYD-1002 Features and Controls: PYD-1005 Presetting Controls Before Use Connecting the Outputs Playing the Mixer’s Output Signal...

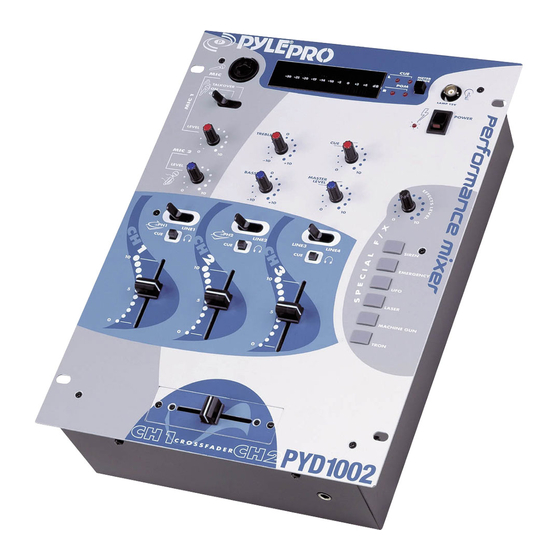

- Page 3 Features and Controls: PYD1002 Mixer MIC 1(DJ Mic) Dual Display Meter displays your choice Input Jack of Master Input Left and Right Levels, or accepts balanced Phones Output Levels for CUE and PGM or unbalanced inputs with either XLR or 1/4” plug MIC Talkover Switch lowers the level of input sources,...
- Page 4 Features and Controls: PYD1005 Mixer MIC 1(DJ Mic) Dual Display Meter displays your choice Input Jack of Master Input Left and Right Levels, or accepts balanced Phones Output Levels for CUE and PGM or unbalanced inputs with either XLR or 1/4” plug MIC Talkover Switch lowers the level of input sources,...
-
Page 5: Connecting The Outputs
Presetting the Controls Before Use Since sudden high output levels from your Pyle Pro mixer can damage not only audio devices connected to the mixer output but your hearing as well (especially if you are using headphones), please adjust the mixer’s controls BEFORE connecting AC power or turning on the unit. Set up the mixer controls like this before you start: CONTROL Power On/Off... - Page 6 Connecting the Mixer Inputs This mixer permits connection of up to eight (8) audio input sources, including up to two microphones. Such a system might include, for example: Two Microphones Two Microphones Two Turntables Two Turntables Two CD players Four CD players Two Cassette Decks Do not connect any audio source with a HIGH LEVEL Please observe...
-
Page 7: Using Headphones
Connecting the Mixer Inputs (cont.) 3. Turntables. Connect up to 2 turntables to the Phono 1 and Phono 2 input jacks. When using a turntable, you should also securely connect its ground wire (usually green or black) to the Ground screw on the input panel of the mixer. Magnetic cartridge turntable Connecting the Lamp If you wish to intall a console lamp (not supplied), simply... - Page 8 Using the Mixer Controls Turning on the Mixer 1. Turn on the output amplifier and temporarily set its volume to the minimum setting. 2. On the mixer, turn ON the power switch. The adjacent power LED will illuminate. 3. Turn on the audio input sources you wish to mix, and set them to play (or talk continuously into the microphone).
- Page 9 Mixing the Inputs Follow these steps to mix the audio input sources. 1. Perform Steps 1 and 2 of “Turning on the Mixer.” 2. Set the selected audio input source’s volume to its minimum setting, turn it on, and set it to play (or speak continuously into the microphone).
-
Page 10: Using The Microphone
Using the Microphone Incorporating Voice into the Mix To blend voice from the microphone with the audio program material, adjust the turn the MIC 1 Talkover Switch to ON and use the MIC1 level slider to increase or decrease the microphone level. This will not affect the main volume inputs. -
Page 11: Using The Tone Controls
Using the Tone Controls To enhance the sound or tailor the highs, mids (PYD-1005) and low frequencies for audio source input to the acoustics of a particular performance environment, you can adjust the BASS, MID (PYD-1005) and TREBLE tone controls. Rotating the bass control, for example, will boost the bass frequencies in the bass range. - Page 12 Using the Master Balance Control In the typical performance environment, you will want the sound to appear to be coming from a point midway between the speakers. If the sound appears to be louder from one speaker, adjust the Balance Control until the sound is properly balanced.
- Page 13 Using the “Punch” Controls (PYD-1005 ) This featured control lets you smoothly and quickly turn a playing source on and off, or switch between the two different input sources assigned to Crossfade Channel A and B. The effect you get depends upon the position of the Crossfader.
-
Page 14: Troubleshooting
Troubleshooting Your mixer should require very little maintenance. If you have problems, refer to the chart below for possible solutions. If you cannot solve the problem, contact a qualified technician for assistance. PROBLEM POSSIBLE SOLUTION Nothing works • Check the AC connection. Make sure the AC outlet is “live.” •... -
Page 15: Specifications
13 – Pyle Pro Mixer Owner’s Manual Distortion 0.50% Phono 0.08% Line 0.05% Tone Control Treble 10kHz; +10/-30dB(PYD-1005) 10kHz; +10/-10dB(PYD-1002) Mid(PYD-1005) 1 kHz; +10/-30dB Bass 100Hz; +10/-30dB(PYD-1005) 100Hz; +10/-10dB(PYD-1005) Talkover Attenuation -16dB Power Source 120 VAC, 60Hz/230 VAC, 50 Hz Dimensions, inches 10.25 x 3.6 x 14.0...
