Summary of Contents for Pyle Pro PYD1270

  • Page 1 PYD6070/PYD1270 6/12 channel 2 Bus professional mixing console...
  • Page 2: Table Of Contents

    CH1/CH2 For PYD6070 CH1/CH2/CH3/CH4 For PYD1270 7 Stereo Input Channel Controls, LINE/EQ(PYD6070)/EFX/BAL/LEVEL/GAIN(PYD1270) CH3/4 & CH5/6 For PYD6070 CH5/6, CH7/8, CH9/10, & CH11/12 For PYD1270 8-9 Main Section Connections and Controls 10 Specifications 11 Warranty i – Pyle Pro Mixer PYD6070/1270 Owner’s Manual...
  • Page 3: Safety Instructions

    Safety Instructions CAUTION: To reduce the risk of electronic shock, do not remove the cover (or back). No user serviceable parts inside; refer servicing to qualified personnel. WARNING: To reduce the risk of fire electric shock, do not expose this device to rain and moisture. This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure-voltage that may be sufficient to constitute a risk of shock.
  • Page 4: Features And Controls: Pyd6070 Mixer

    Features and Controls: PYD6070 Mixer LINE 1 & LINE 2 BAL or UNBAL 1/4" (TRS) Input Jack For connecting a balanced or unbalanced line level sources. MIC1/LINE 1 & MIC2/LINE 2 GAIN Control Lets you adjust the gain of the input source.
  • Page 5: Features And Controls: Pyd1270 Mixer

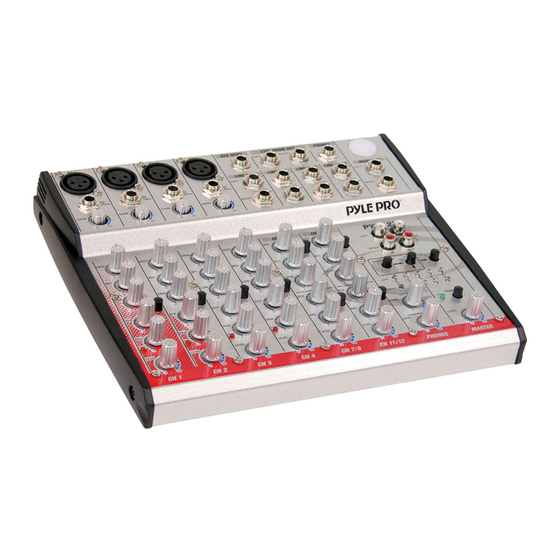

    Features and Controls: PYD1270 Mixer LINE 1, LINE 2, LINE 3, & LINE 4 BAL or UNBAL 1/4" (TRS) Input Jack For connecting a balanced or unbalanced line level sources. MIC1/MIC2/MIC3 & MIC4 Balanced XLR Input Connector For connecting a balanced low impedance microphone with XLR type plug.
  • Page 6: Installation, Pyd6070 Mixers

    INSTALLATION, PYD6070 Mixers 4 – Pyle Pro Mixer PYD6070/1270 Owner’s Manual...
  • Page 7: Installation, Pyd1270 Mixers

    INSTALLATION, PYD1270 Mixers Pyle Pro Mixer PYD6070/1270 Owner’s Manual – 5...
  • Page 8: Mono Input Channel Controls

    0 completely whenever you connect or disconnect a signal source to one of the inputs. 6 – Pyle Pro Mixer PYD6070/1270 Owner’s Manual CH1/CH2/CH3/CH4 For PYD1270 EQ (HI/MID/LO) ALL the mono input channels has a 3-band equalizer, all bands provide up to 15dB of cut and boost, with a centre detent for OFF.
  • Page 9: Stereo Input Channel Controls

    EFX bus. CH5/6, CH7/8, CH9/10 & CH11/12 For PYD1270 It determines the level of left and right input signals relative to each other before both signals...
  • Page 10 Use the EFX RETURN rotary control to adjust the effects signal levelsent to the MAIN mix bus. NOTE:PYD1270 uses two 1/4" (TRS) jacks of LINE 11/12 as EFX RETURN, turn the EFX GAIN of CH 11/12 fully down to avoid undesirable feedback when using this path.
  • Page 11 TAPE TO MIX Switch Press this switch to route the signals from TAPE IN to the MAIN mix. EFX TO CONTROL ROOM Switch (PYD1270) Press this switch to monitor the EFX SEND signal in the control room or headphone. The MAIN mix signal will be muted while routing the EFX SEND signal to the control room.
  • Page 12: Specifications

    EFX Send Max Out...2V unbalanced Control Room Out...2V unbalanced Signal to Noise Ratio...80 dB (with A-WTD) POWER SOURCE...AC 15V DIMENSIONS (W x H x D mm): ...PYD6070 213x40x226 ...PYD1270 270x40x226 10 – Pyle Pro Mixer PYD6070/1270 Owner’s Manual electronically balanced electronically balanced balanced...
  • Page 13: Warranty

    Pyle Pro Mixer PYD6070/1270 –11 Owner’s Manual Please complete warranty card, detach and return PYLE PRO Audio, Inc. 1600 63rd Street Brooklyn, NY 11204 Place Stamp Here...
  • Page 14 Limited Warranty All PYLE PRO products are carefully constructed and tested before shipment. Units purchased in the USA are warranted to be free of defects in material and workmanship for two (2) years from the date of purchase. This warranty is limited to the original retail purchaser of the mixer.
