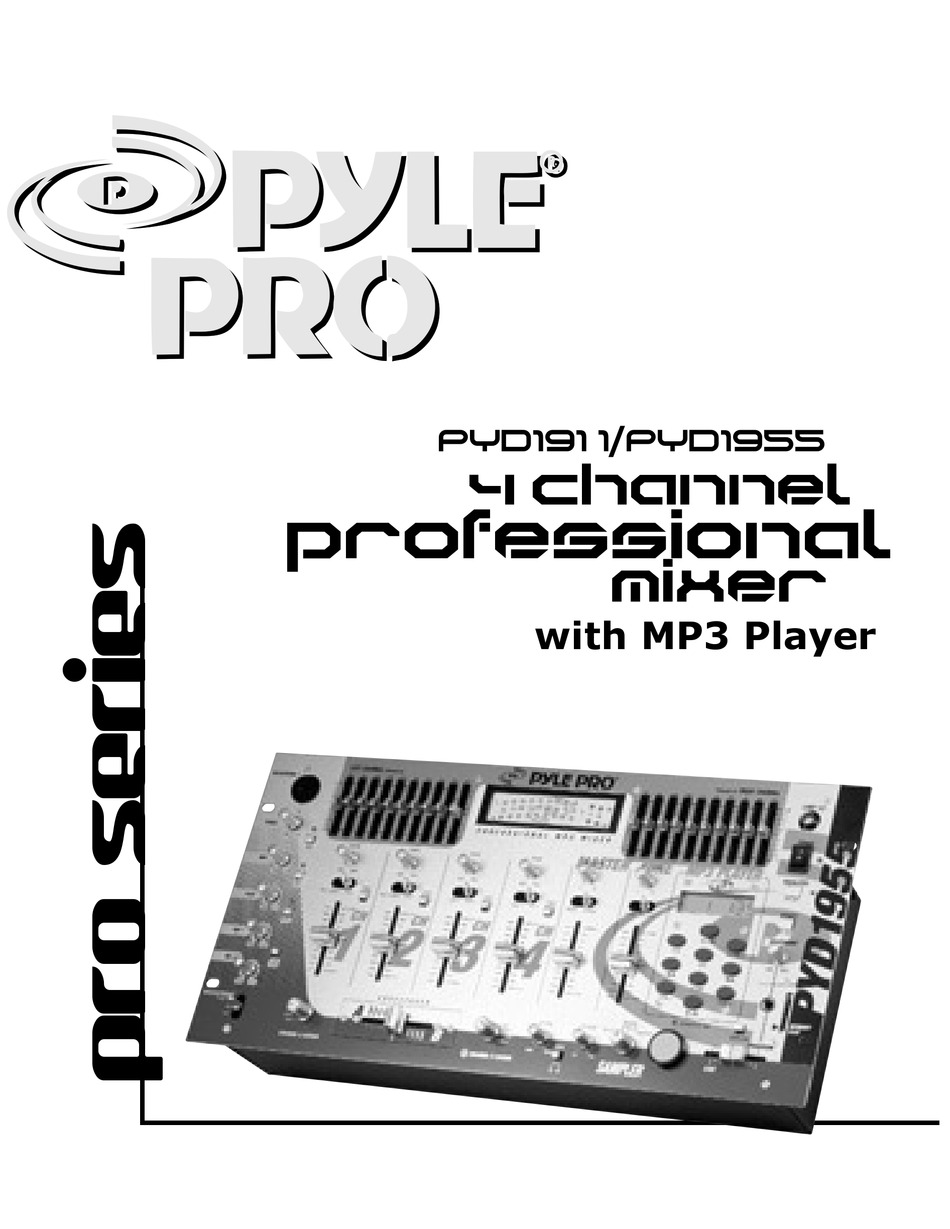

- Page 1 PYD191 1/PYD1955 4 channel professional with MP3 Player...
- Page 2 Your PYLE PRO Series Performance Mixer is a sophisticated control center, perfect for mixing sound from multiple playback sources such as microphones, tuners, CD players, turntables or the audio outputs from a VCR. This mixer is ruggedly constructed for home or professional use. Wide range volume controls permit you to adjust sound levels accurately to achieve just the right mix for playing through your speaker system or for recording.
- Page 3 Features and Controls: PYD1911 Mixer MIC 1 Combo Input Jack For connecting a balanced or unbalanced low impedance microphone with XLR- type or 1/4” plug MIC 2 Input Jack (on input panel) For connecting a balanced or unbalanced low impedance microphone with 1/4”plug MIC Frequency Kill Switches Allows you to kill the selected frequency range...
- Page 4 Features and Controls: PYD1955 Mixer MIC 1 Combo Input Jack For connecting a balanced or unbalanced low impedance microphone with XLR- type or 1/4”plug MIC 2 Input Jack (on input panel) For connecting a balanced or unbalanced low impedance microphone with 1/4”plug...
-
Page 5: Control Buttons
Features and Controls: MP3 Player Features: 1. Support MP3 playback 2. Digital output volume control 3. 5 preset EQ control 4. USB interface 5. Built-in 32MB flash 6. Graphic LCD display 7. Secure Digital (SD) card LCD Display Panel 1. A-B:It indicates the periodic repeat setting. :It indicates the playing or pause mode. -
Page 6: System Requirements
Features and Controls: MP3 Player Installing the MP3 Driver 1. Connect the USB DATA CABLE with the used computer. 2. Connect the USB DATA CABLE with the mixer and turn it on. 3. If your computer i s equipped with the Windows 95/98/98SE, please download the MP3 driver at WWW.PYLEAUDIO.COM;... -
Page 7: Connecting Microphones
Presetting the Controls Before Use Since sudden high output levels from your Pyle Pro mixer can damage not only audio devices connected to the mixer output but your hearing as well (especially if you are using headphones), please adjust the mixer’s controls BEFORE connecting AC power or turning on the unit. Set up the mixer controls like this before you start: CONTROL Power On/Off... - Page 8 Connecting High Level Output Audio Sources Connect up to 8 such sources (tuner, cassette deck, CD Player, camcorder VCR or MP3) to the input jacks for Line 1 (if not being used as Phono 1 input), Line 2, Line 3 (if not being used as Phono 2 input), Line 4, Line 5 and Line 6.
- Page 9 Using the Channel Input Gain Controls Adjusting the Gain controls for each channel permits you to fine tune the level of each of the audio inputs, since input levels usually vary. Rotate the Gain controls clockwise to increase levels. After you preset the gain levels for each input, it is recommended that you do not adjust them further, as you can cause sound level imbalances during a mix.
-
Page 10: Using Headphones
Using Headphones Plug a pair of stereo headphones (not supplied) with a 1/4” jack into the Phones input. Using headphones not only affords you the opportunity to listen privately, but also enables you to monitor (”cue”) the incoming audio sources so you can locate an exact passage or section before mixing it in. -
Page 11: Mixing The Inputs
Using the Mixer Controls Turning on the Mixer 1. Turn on the output amplifier and temporarily set its volume to the minimum setting. 2. On the mixer, turn ON the power switch. The adjacent power LED will illuminate. 3. Turn on the audio input sources you wish to mix, and set them to play (or talk continuously into the microphone). -
Page 12: Using The Microphone
Adding Equalization to the Mix You can further tailor the sound processed through the mixer to match your acoustic surroundings or suit your personal preferences by using the ten frequency sliders for each channel. To engage the equalization module, press the Equalization On/Off Switch. The LED next to the switch will be illuminated, indicated the EQ mode has been engaged. - Page 13 Using the Mono/Stereo Mode Switch When the MASTER MONO/STEREO switch is in the MONO position, the mixer combines the right and left channels and sends them to the OUTPUT R and L jacks. These combined outputs can be used by a monoaural amplifier, such as a PA amp. In the STEREO position, right and left channels remain separate.
-
Page 14: Troubleshooting
Troubleshooting Your mixer should require very little maintenance. If you have problems, refer to the chart below for possible solutions. If you cannot solve the problem, contact a qualified technician for assistance. PROBLEM POSSIBLE SOLUTION Nothing works • Check the AC connection. Make sure the AC outlet is “live.” •... - Page 15 Pyle Pro Mixer PYD1911/1955 –13 Owner’s Manual Please complete warranty card, detach and return PYLE PRO Audio, Inc. 1600 63rd Street Brooklyn, NY 11204 Place Stamp Here...
-
Page 16: Specifications
Specifications PYD1911/1955 Input Sensitivity/Impedance Mic 1-2 1.5 mV/600 Ohms, bal/unbal Phono 1-2 3.0 mV/50K Ohms Line 1-7 150.0 mV/27K Ohms Output Level 2.0 V/10-kOhms Zone 2.0 V/10-kOhms Record 150mV/10-kOhms Frequency Response 20Hz – 20kHz +/- 3 dB S/N Ratio (at 1 kHz) >60 dB/1.5mV input Phono >70 dB/3.0mV input...
