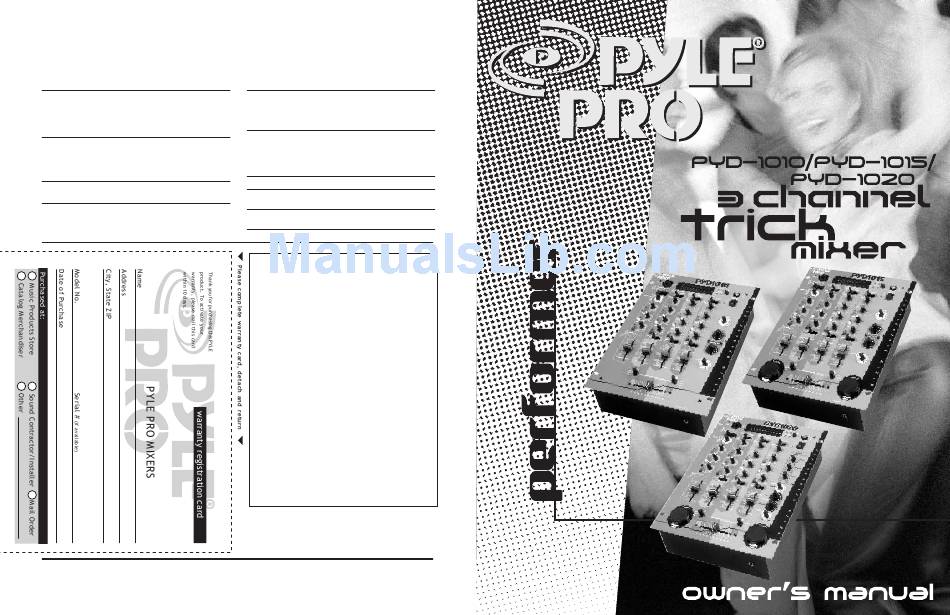

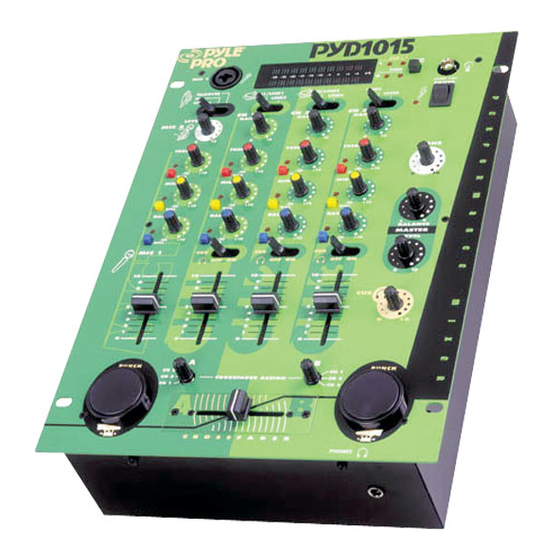

Pyle Pro 1015 Owner's Manual

Specifications

PYD1010/1015/1020
Input Sensitivity/Impedance
Mic 1.5 mV/600 Ohms
Phono 1-2 3.0 mV/50K Ohms
Line 1-6 150.0 mV/27K Ohms
Output Level
Master 1.5 V/10-kOhms
Zone 1.5 V/10-kOhms
Record 150mV/10-kOhms
Frequency Response 20Hz – 20kHz +/- 3 dB
S/N Ratio (at 1 kHz)
Mic 55 dB/1.5mV input
Phono 65 dB/3.0mV input
Line 70 dB/150.0 mV input
14 – Pyle Pro Mixer Owner's Manual
Distortion
Mic 0.50%
Phono 0.08%
Line 0.05%
Tone Control
Treble 10kHz; +10/-30dB
Mid 1 kHz; +10/-30dB
Bass 100Hz; +10/-30dB
Talkover Attenuation -16dB
Power Source 120 VAC, 60Hz/230 VAC, 50 Hz
Dimensions, inches 10.25 x 3.6 x 14.0
(mm) (260 x 92 x 355)
Weight, lbs (kg) 9.5 (4.3)
Limited Warranty
All PYLE PRO products are carefully constructed and tested before
shipment. Units purchased in the USA are warranted to be free of
defects in material and workmanship for two (2) years from the date
of purchase. This warranty is limited to the original retail purchaser
of the mixer.
Should the unit fail due to factory defects in material or workmanship,
your unit will be repaired or replaced at the sole discretion of PYLE.
To obtain warranty service, you must first call our Consumer Return
Hotline at (718) 236-6948 to obtain a Return Authorization Number.
This R.A. # must appear on the outside of your package and on all
paperwork relating to your return.
When returning the unit to us for warranty service, it must be carefully
packed and shipped, prepaid, to:
R.A.#: _____________
PYLE PRO Service Center
1600 63rd Street
Brooklyn, NY 11204
You must also include the following items with your return:
• A copy of your sales receipt or other proof of purchase
• A brief letter, indicating the problem you are experiencing with
the product
• Include in your letter your return address, daytime phone number
and R.A. number
• Also include a check or money order for $15.00 for return
shipping, handling and insurance, or provide your Visa/MC number with
expiration date.
Our obligation under this warranty is limited to the repair or replacement
of the defective unit when it is returned to us prepaid. This warranty
will be considered void if the unit was tampered with, improperly
serviced or subject to misuse, neglect or accidental damage.
