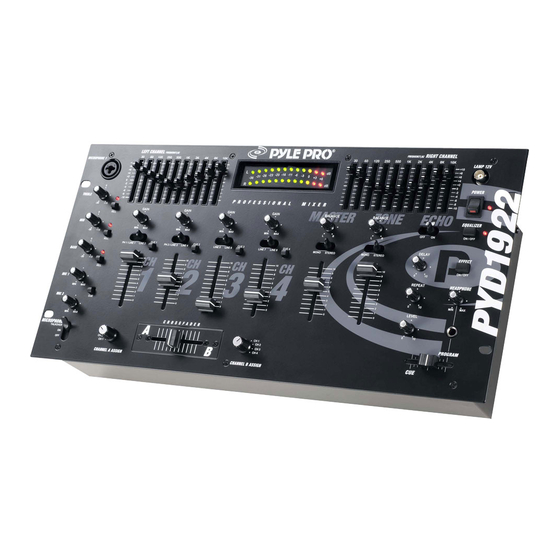

Pyle Pro PYD1912 Owner's Manual

Specifications

PYD1912/1922/1932/1942
Input Sensitivity/Impedance
Mic 1-2 1.5 mV/600 Ohms, bal/unbal
Phono 1-2 3.0 mV/50K Ohms
Line 1-8 150.0 mV/27K Ohms
Output Level
Amp 2.0 V/10-kOhms
Zone 2.0 V/10-kOhms
Record 150mV/10-kOhms
Frequency Response 20Hz – 20kHz +/- 3 dB
S/N Ratio (at 1 kHz)
Mic >60 dB/1.5mV input
Phono >70 dB/3.0mV input
Line >80 dB/150.0 mV input
Distortion
Mic 0.20%
Phono 0.05%
Line 0.03%
Limited Warranty
All PYLE PRO products are carefully constructed and tested before shipment.
Units purchased in the USA are warranted to be free of defects in material
and workmanship for two (2) years from the date of purchase. This warranty
is limited to the original retail purchaser of the mixer.
Should the unit fail due to factory defects in material or workmanship, your
unit will be repaired or replaced at the sole discretion of PYLE.
To obtain warranty service, you must first call our Consumer Return Hotline
at (718) 236-6948 to obtain a Return Authorization Number. This R.A. # must
appear on the outside of your package and on all paperwork relating to your
return.
When returning the unit to us for warranty service, it must be carefully
packed and shipped, prepaid, to:
Please complete warranty card, detach and return
Thank you for purchasing this PYLE
product. To activate your warranty registration card
warranty, please mail this card
within 10 days.
PYLE PRO MIXERS
Name
Address
City, State ZIP
Model No. Serial #
(if available)
Date of Purchase
Purchased at:
Music Products Store Sound Contractor/Installer
Catalog Merchandiser Other
Equalizer
Control Frequencies 30, 60, 120, 250, 500
1K, 2K, 4K, 8K, and 16KHz
Boost/Cut Range +/- 10 dB from center
MIC Tone Control
Treble 10kHz; +10/-30dB
Mid 1 kHz; +10/-30dB
Bass 100Hz; +10/-30dB
Talkover Attenuation -16dB
Echo Delay Time 50mS-120mS
(PYD-1922/1942)
Power Source 120 VAC, 60Hz/230 VAC, 50 Hz
Dimensions, inches 19.0 x 4.25 x 9.45
(mm) (482 x 108 x 240)
R.A.#: _____________
PYLE PRO Service Center
1600 63rd Street
Brooklyn, NY 11204
You must also include the following items with your return:
• A copy of your sales receipt or other proof of purchase
• A brief letter, indicating the problem you are experiencing with the product
• Include in your letter your return address, daytime phone number and R.A. number
• Also include a check or money order for $20.00 for return
shipping, handling and insurance, or provide your Visa/MC number with expiration date.
Our obligation under this warranty is limited to the repair or replacement
of the defective unit when it is returned to us prepaid. This warranty will
be considered void if the unit was tampered with, improperly serviced or
subject to misuse, neglect or accidental damage.
www.pyleaudio.com
14 – Pyle Pro Mixer Owner's Manual
Mail Order
PYD1912/PYD1922
PYD1932/PYD1942
