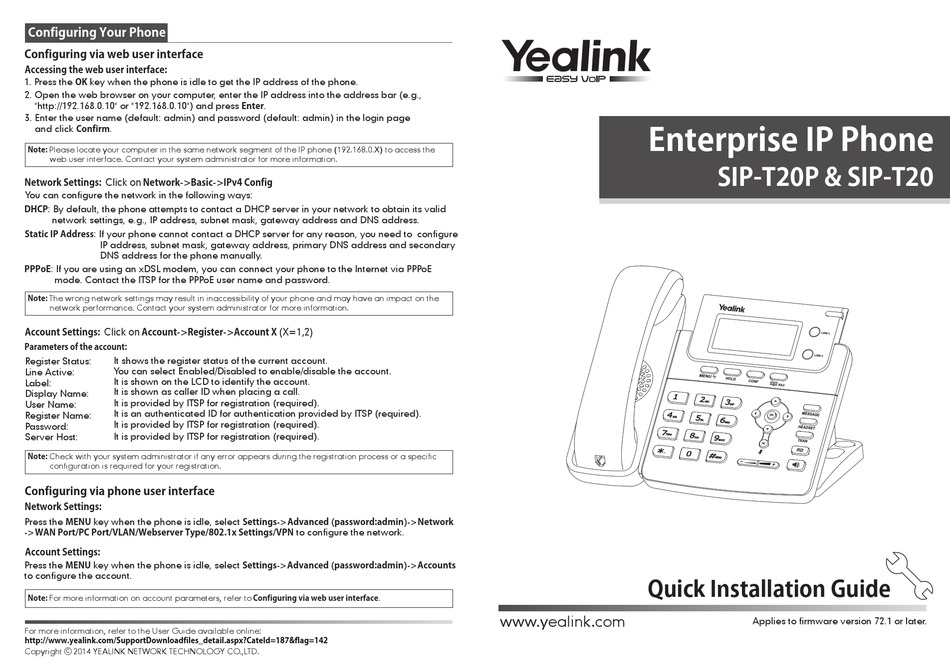

Yealink SIP-T20P Quick Installation Manual

1. Press the key when the phone is idle to get the IP address of the phone.
2. Open the web browser on your computer, enter the IP address into the address bar (e.g.,
"http://192.168.0.10" or "192.168.0.10") and press
3. Enter the user name (default: admin) and password (default: admin) in the login page
and click .
Please locate your computer in the same network segment of the IP phone (192.168.0.X) to access the
web user interface. Contact your system administrator for more information.
Click on ->
You can configure the network in the following ways:
: By default, the phone attempts to contact a DHCP server in your network to obtain its valid
network settings, e.g., IP address, subnet mask, gateway address and DNS address.
: If your phone cannot contact a DHCP server for any reason, you need to configure
IP address, subnet mask, gateway address, primary DNS address and secondary
DNS address for the phone manually.
: If you are using an xDSL modem, you can connect your phone to the Internet via PPPoE
mode. Contact the ITSP for the PPPoE user name and password.
The wrong network settings may result in inaccessibility of your phone and may have an impact on the
network performance. Contact your system administrator for more information.
Click on ->
It shows the register status of the current account.
Register Status:
You can select Enabled/Disabled to enable/disable the account.
Line Active:
It is shown on the LCD to identify the account.
Label:
It is shown as caller ID when placing a call.
Display Name:
It is provided by ITSP for registration (required).
User Name:
It is an authenticated ID for authentication provided by ITSP (required).
Register Name:
It is provided by ITSP for registration (required).
Password:
It is provided by ITSP for registration (required).
Server Host:
Check with your system administrator if any error appears during the registration process or a specific
configuration is required for your registration.
Press the key when the phone is idle, select
->
Press the key when the phone is idle, select
to configure the account.
For more information on account parameters, refer to
For more information, refer to the User Guide available online:
c
Copyright 2014 YEALINK NETWORK TECHNOLOGY CO.,LTD.
.
->
-> (X=1,2)
-> (
to configure the network.
-> (
.
)->
)->
www.yealink.com
Applies to firmware version 72.25 or later. Applies to firmware version 72.1 or later.
Applies to firmware version 72.1 or later.
