Wall Mount Quick Installation Guide
for SIP-T23_T22_T21_T20_T19 IP Phones
This quick installation guide provides step-by-step
instructions for mounting your IP phone to a wall.
Wall mount is avaliable for the following IP phones:
SIP-T23P/G IP Phone
SIP-T22(P) IP Phone
SIP-T21(P) E2 IP Phone
SIP-T21(P) IP Phone
SIP-T20(P) IP Phone
SIP-T19(P) IP Phone
SIP-T19(P) E2 IP Phone
Depending on which model you own, your IP phone can
be mounted to the wall in one of two ways:
By using the stand(included with SIP-T23P/T23G/T22(P)
/T21(P)/T21(P) E2 /T20(P) IP phone)
By using the slots on the back of the phone
(for SIP-T19(P)/T19(P) E2 IP phone)
Screws, wall anchors and applicable tools are also
required for wallmount installation. These are not
included with your IP phones. You need to purchase
them separately.
www.yealink.com
Adjusting the Hookswitch Tab
The IP phone is packaged with the hookswitch tab in
desk mount position. Before mounting the IP phone to
a wall, you must set the hookswitch tab to wall mount
position.
To adjust the hookswitch tab:
1. Pull the hookswitch tab in the handset cradle.
2. Rotate the hookswitch tab 180 degrees.
3. Reinsert the hookswitch tab.

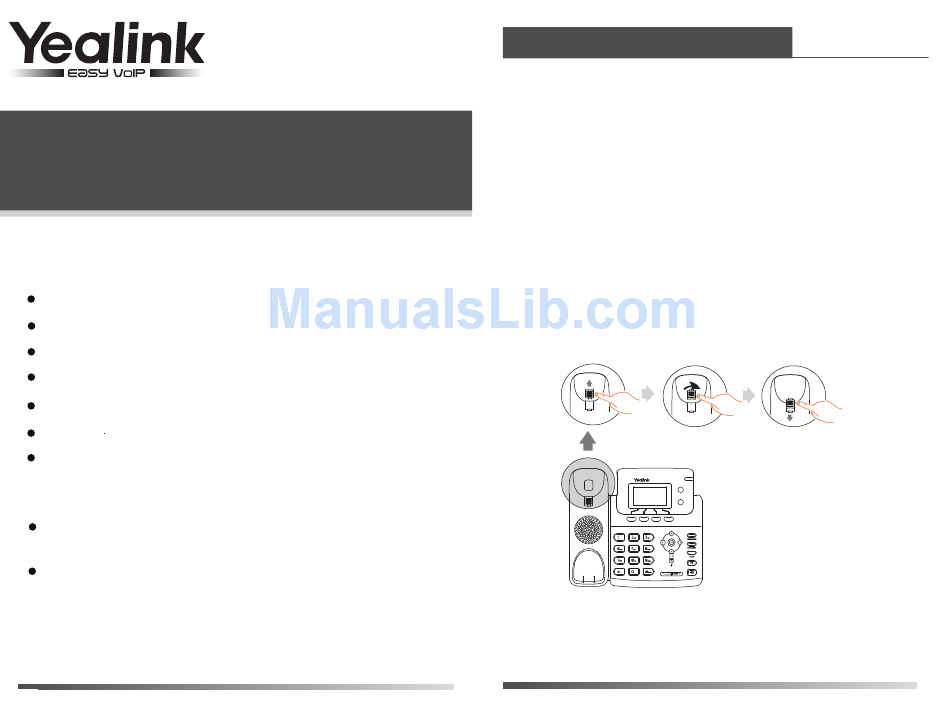

Adjust the hookswitch tab as shown below(Take a
SIP-T21P IP phone as an example):
The hookswitch tab has a lip which allows the handset to
stay on-hook when the IP phone is mounted vertically.
180 。
Wall Mount Quick Installation Guide
