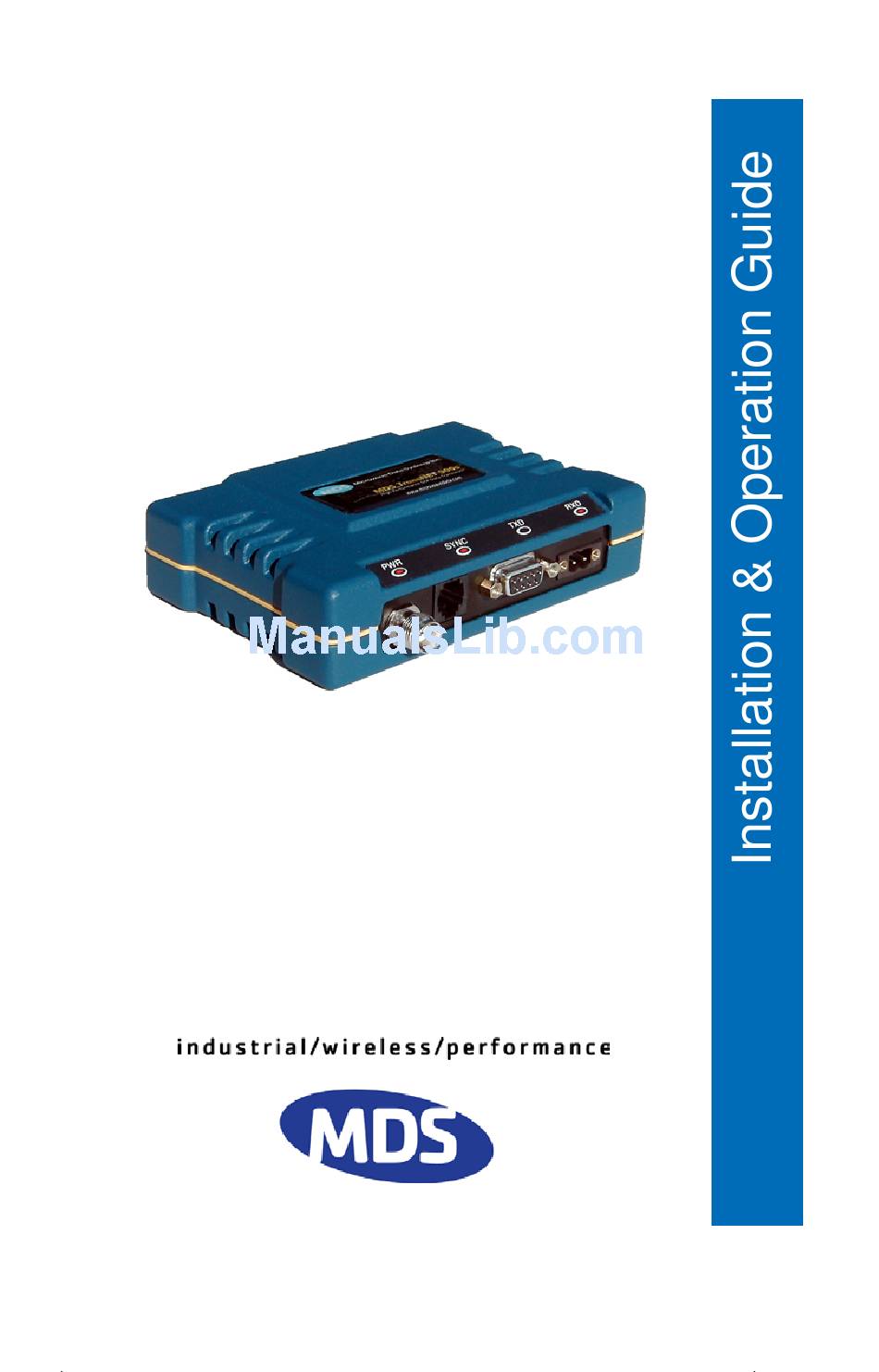

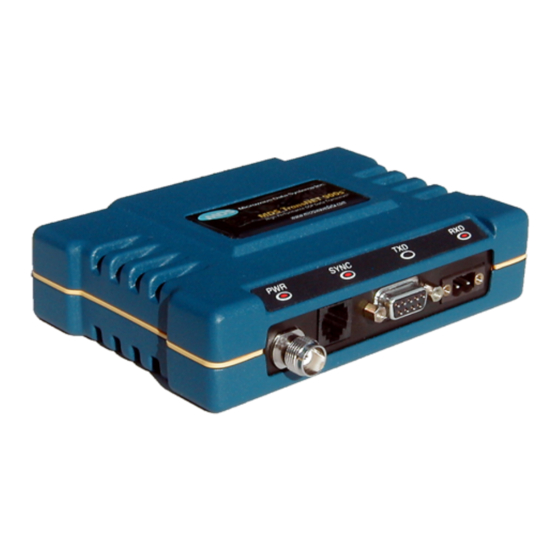

  • Page 1 Microwave Data Systems Inc. ™ MDS TransNET 900 ™ MDS TransNET 2400 Spread Spectrum Data Transceiver MDS 05-2708A01, Rev. D AUGUST 2006...
  • Page 2 QUICK START GUIDE 1. Install and connect the antenna system to the transceiver • Use a high-quality gain antenna, mounted in the clear. • Use a low-loss feedline such as LMR 400. • Preset directional antennas in the direction of desired transmission/reception. 2.

  • Page 3: Table Of Contents

    3.5 How Much Output Power Can be Used? ......12 4.0 INSTALLATION ..............14 4.1 Transceiver Installation ............14 4.2 Configuring Multiple Remote Units .........18 4.3 Tail-End Links ..............18 4.4 Configuring a Network for Extensions ......19 5.0 OPERATION ................19 5.1 Initial Start-up ..............19 MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 4 Select Sub-Band (Normally used for 2.4 GHz model) BUFF [ON, OFF] ............. 30 Data Buffer Mode CODE [NONE, 1…255]........... 31 Security Code CSADDR [1–65000, NONE]..........31 Clock-Synchronizing Master Address CTS [0–255] ..............31 Clear-to-Send Delay MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 5 MODE [M, R, X] ...............36 Radio Operating Mode MRSSI [NONE, –40...–90] ..........37 Minimum RSSI for Mobile Operation OT [ON, OFF] ..............37 Output Trigger OWM [xxxxx]..............37 “Owner’s Message” OWN [xxxxx] ..............37 “Owner’s Name” MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 6 Show Measured RF Transmit Power SHOW SYNC ..............41 Show Clock-Synchronization Master Network Address SKIP [NONE, 1...8]............41 Skip Radio Operating Zones SLEEP [ON, OFF] ............42 Transceiver Sleep—Remotes Only SREV ................42 Firmware Revision Level MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 7 7.5 Internal Fuse Replacement ..........50 8.0 RADIO FIRMWARE UPGRADES ..........51 8.1 Obtaining New Firmware ..........51 Saving a Web-Site Firmware File Onto Your PC ....51 8.2 Installing Firmware Into Your Radio .........51 9.0 OPERATING PRINCIPLES AND CONFIGURATION.....52 MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 8 10.4 Data Interface Connections (DB-9F) ......69 Pin Descriptions—RS/EIA-232 Mode......70 Pin Descriptions—RS/EIA-422/485 Mode..... 71 10.5 User Configurable I/O Connections ......72 Using the I/O Points with InSite™ NMS Software ..73 MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 9: Copyright Notice

    UL/CSA Notice The MDS TransNET 900 is available for use in Class I, Division 2, Groups A, B, C & D Haz- ardous Locations. Such locations are defined in Article 500 of the National Fire Protection Asso- ciation (NFPA) publication NFPA 70, otherwise known as the National Electrical Code.
  • Page 10 These systems will reuse or recycle most of the materials found in this equipment in a sound way. Please contact MDS or your supplier for more information on the proper disposal of this equip- ment.

  • Page 11: About This Manual

    1.0 ABOUT THIS MANUAL This manual presents installation and operating instructions of the MDS TransNET 900™ and MDS TransNET 2400™ transceivers for use by a professional installer. This person is expected to install, operate, and perform basic system maintenance on the described radio. Following instal- lation, we suggest keeping this manual near the equipment for future refer- ence.

  • Page 12: Model Number Codes

    This number is subject to many variations depending on what options are installed and where (country) the product is used. Contact MDS is you have questions on the meaning of the code. 2.3 Spread Spectrum Radios—...

  • Page 13: Point-To-Point System

    A tail-end link can be used to extend the range of a traditional (licensed) MAS system. This might be required if an outlying site is blocked from the MAS Master station by a natural or man-made obstruction. In this arrangement, a MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 14: Extending A Transnet Network With A Repeater

    MDS TransNET Extension MODE = X MDS TransNET Remote MDS TransNET MDS TransNET Remote MODE = R Remote MODE = R MODE = R OUTLYING REMOTE SITE Figure 5. TransNET Repeater Network MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 15: Accessories

    Consult MDS for details. Consult factory 900 MHz Rugged directional antennas suited for use at Various; Yagi Antennas Remote stations. Consult MDS for details. Consult factory 2400 MHz Rugged directional antennas suited for use at Various; Antennas Remote stations.

  • Page 16: Installation Planning

    • A source of adequate and stable primary power • Suitable entrances for antenna, interface or other required cabling • Antenna location that provides an unobstructed transmission path in the direction of the associated station(s) MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 17: Terrain And Signal Strength

    The test can be performed by first installing a radio and antenna at the proposed Master station site and then visiting each Remote site with a trans- ceiver and a hand-held antenna. MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 18: A Word About Radio Interference

    Factors such as terrain, distance, transmitter power, receiver sensitivity, and other conditions are taken into account to predict the perfor- mance of a proposed system. Contact MDS’ Technical Services Group for more information on path study services. 3.3 A Word About Radio Interference The radio shares the frequency spectrum with other services and other Part 15 (unlicensed) devices in the USA.

  • Page 19: Antenna & Feedline Selection

    3.4 Antenna & Feedline Selection Antennas The equipment can be used with a number of antennas. The exact style used depends on the physical size and layout of a system. Contact your MDS repre- sentative for specific recommendations on antenna types and hardware sources.

  • Page 20: Feedlines

    At Remote sites and point-to-point systems, a directional Yagi antenna (Figure 8), is generally recommended to minimize interference to and from other users. Antennas are available from a sources including MDS. Invisible place holder Figure 8. Typical Yagi Antenna mounted to a mast Feedlines The choice of feedline used with the antenna should be carefully considered.

  • Page 21: Antenna System Ground

    Please consider consulting a radio system engineer or other professional for advice or ground system design. A well-designed ground system will mini- mize risk of electrical shock to personnel and the chances of equipment damage. MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 22: How Much Output Power Can Be Used

    In the example above, this is 28 dBm. 3. If the maximum transmitter power allowed in your region is less than 30 dBm, use the command (described on Page 38) to set the power accordingly. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 23 To convert to dBi, add 2.15 dB. b. Feedline loss varies by cable type and length. To determine the loss for common lengths of feedline, Table 2 on Page MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 24: Installation

    Figure 9. Typical Transceiver Shipment User documentation will be provided as a paper manual and/or as a PDF on the “MDS TransNET Support Package CD” (P/N 03-2708A01). The CD includes: • Installation & Operation Guide in PDF (Also known as Adobe Acrobat™)
  • Page 25 NOTE: It is recommended to mount the antenna be at least 10 feet (>3 meters) from the radio, RTU, sensors and other components of the system to prevent RFI. 3. Connect the data equipment to the transceiver’s connector. Use DATA only the required pins for the application. MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 26 @13.8 Vdc; 0.9 A @6 Vdc.) A power connector with screw-terminals is provided with each unit. Strip the wire leads to 0.25˝/6 mm. Be sure to observe proper polarity. The left pin is the positive input; the right is negative. (See Figure 14.) MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 27 The power connector used with the CAUTION transceiver is similar to that used by other MDS prod- ucts, such as the MDS 9810 and MDS x710 family. The POSSIBLE connectors are not equal and the use of the other style...

  • Page 28: Configuring Multiple Remote Units

    Once the evaluation network is working satisfactorily, you can save the configuration of each unit in a data file on your PC’s hard drive through the use of the MDS TransNET Configuration Software (included on the support CD shipped with the radio, MDS part number 03-2708A01).Most often, there are many Remote units...

  • Page 29: Configuring A Network For Extensions

    LED functions. In a normally operating system, the following indications will be seen within 16 seconds of start-up: • lamp lit continuously • lamp lit continuously SYNC MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 30: Performance Optimization

    Remote sites, and the RSSI would be continually changing as the Master receives from each Remote in turn. Adjust the antenna for the highest (most positive) value to insure the greatest communication reliability. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 31: Antenna Swr Check

    For sustained operation at 115200 bps, use the following settings: SAF OFF FEC OFF REPEAT 0 RETRY 0 HOPTIME 28 MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 32: Baud Rate Setting

    The MS Windows™-based MDS TransNET Configuration Software (P/N 06-4059A01) is designed for use with a PC connected to the radio’s connector through an RJ-11 to DB-9 cable assembly (MDS Part No. DIAG 03-3246A01). A cable of this type may be constructed using the information...

  • Page 33: User Commands

    SAF [ON, OFF] Enables/disables the store-and-forward func- Details, page 40 tion for the network controlled by this Master unit. SKIP [NONE, 1...8] Skip one or more frequency zones Details, page 41 MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 34 Minimum RSSI level required to preserve syn- Details, page 37 chronization with a Master radio for Remotes in mobile service. OT [ON, OFF] Enables a 1-second delay on delivery of RXD Details, page 37 serial data. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 35 (Only meaningful when XPRI is not NONE) ZONE CLEAR Reset zone data statistics Details, page 44 Table 10. Operating Status—Display Only Command Description ADDR Network address Details Page 29 AMASK Alarm mask (response) Details Page 29 MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 36 RXD serial data. Owner’s name or system name Details Page 37 PORT Current data port (DATA connector) interface Details Page 37 signaling mode: RS232 or RS485 Forward power-output setting in dBm Details Page 38 MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 37 Current alarm status Details Page 43 TEMP Transceiver’s internal temperature (°C) Details Page 43 UNIT Programmed unit address for Details Page 43 network-wide diagnostics XADDR This unit’s Extended address Details Page 44 MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 38: Detailed Command Descriptions

    (for example, ). In the descriptions which follow, allowable programming vari- ADDR 1234 ables, if any, are shown in brackets [ ] following the command name. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 39: Addr [1-65000]

    Data Interface Port Baud Rate This command sets or displays the communication attributes for the normal payload communications through the port. The command has no effect DATA on the RJ-11 port. DIAG(NOSTICS) MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 40: Data Interface Port Baud Rate

    This mode of operation is required for protocols such as MODBUS™ that do not allow gaps in their data transmission. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 41: Data Buffer Mode

    For DCE operation, the timer specifies how long to wait after the RTS line goes high before asserting the CTS line. A timer value of zero means that the CTS line will be asserted immediately following the assertion of RTS. MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 42: Ctshold [0-60000]

    DLINK OFF feature. The default setting is The following baud rates selections are supported: DLINK • 1200 • 4800 • 9600 • 19200 (default) MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 43: Insite Diagnostics Link Support

    NOTE 2: The DLINK rate must match the rate of any connected device to the diagnos- tic port. This may be either another MDS radio’s diagnostic port, InSite com- puter, or another data link device that eventually connects to the InSite computer.

  • Page 44: Hoptime [7, 14, 28]

    • 9600 baud • 8 data bits • none (no parity) • 1 stop bit Data Port Setting PORT RS232 RS/EIA-232 CTS Delay CTS 0 0 (CTS is continuously asserted) CTS Hold-Time CTSHOLD 0 MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 45: Hrev

    Hardware Revision Shows the hardware revision of the radio. Turn On Radio Transmitter Test Signal Enables the transmitter. (Radio must be in Setup mode.) See also DKEY command (DKEY Details, page 33). MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 46: Led [On, Off]

    A MODE Master radio is set by ; a Remote set by , and an Extension MODE M MODE R is set by MODE X MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 47: Radio Operating Mode

    PORT [RS232, RS485] Data Interface Port Signaling Standard Select or identify the current data port ( connector) interface signaling DATA mode: RS232 RS485 . This is the port though which the payload data will MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 48: Pwr [20-30]

    –120 dBm. Command availability and results depend on the mode of opera- tion (Master or Remote). The closer to 0 dBm, the stronger the signal, thus a reading of –70 dBm is stronger than –80 dBm. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 49: Received Signal Strength Indicator

    Remote Terminal Unit Simulator This command re-enables or disables the radio’s internal RTU simulator, which runs with MDS’ proprietary polling programs (poll.exe and rsim.exe). The internal RTU simulator is available whenever a radio has diagnostics enabled. This command also sets the RTU address to which the radio will respond.

  • Page 50: Rxtot [None, 0-1440]

    Setup mode, the user must enter PWR 30 followed by . The power output will only be valid for the first couple of seconds. Radio Serial Number Displays the serial number of the radio. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 51: Radio Serial Number

    (For zone parameter input, the digits can appear in any order and can be optionally separated by a blank space.) The command is display-only at SKIP Remote radios. (Remotes must be synchronized with the Master radio to display the skip status.) MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 52: Skip Radio Operating Zones

    In the USA, a maximum of four zones may be skipped for TransNET 900 and a maximum of three zones may skipped for TransNET 2400. Check the regu- latory requirements for your region. The function may not be permitted SKIP in your country and the radio will not respond to the command.

  • Page 53: Stat

    AT-Command address. The unit address is factory programmed to the last four digits of the radio’s serial number. If re-programmed in the field, the entry must consist of five digits between 10000 and 65000. MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 54: Xaddr [0-31]

    0 and the most significant bit represents XADDR 31. The full 32-bit hex value represents the entire list of extensions with which the radio will be allowed to communicate. (Pertains to Remotes and Extensions only.) This parameter is easily programmed through the MDS TransNET Configu- ration Software’s Store-and-Forward Settings panel.

  • Page 55: Troubleshooting

    ZONE CLEAR 7.0 TROUBLESHOOTING Successful troubleshooting of an MDS transceiver system is not difficult, but requires a logical approach. It is best to begin troubleshooting at the Master station, as the rest of the system depends on the Master for polling instruc- tions and synchronization data.

  • Page 56: Led Indicators

    ENTER Major Alarms versus Minor Alarms Major alarms report serious conditions that generally indicate a hardware failure, or other abnormal condition that will prevent (or seriously hamper) further operation of the transceiver. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 57: Alarm Code Definitions

    With the exception of alarm code 00 (network address not programmed), major alarms generally indicate the need for factory repair. Contact MDS for further assistance. Minor alarms report conditions which, under most circumstances, will not prevent transceiver operation. This includes out-of-tolerance conditions, baud rate mismatches, etc.

  • Page 58: Troubleshooting Chart

    REPEAT count. high. b.Turn BUFF OFF. BUFF ON ensures that no gaps occur in the data, but this comes at the cost of increased latency. c. Make sure HOPTIME is set to 7. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 59: Performing Network-Wide Remote Diagnostics

    RJ-11 port of each node radio. 5. Connect a PC on which MDS InSite software is installed to the root radio, or to one of the nodes, at the radio’s diagnostics port.

  • Page 60: Internal Fuse Replacement

    7. Install a new fuse by reversing the process. Replacement fuse: Littelfuse #0454002; 452 Series, 2 Amp SMF Slo-Blo fuse (MDS Part No. 29-1784A03). 8. Re-install the covers, interface cables and check the radio for proper operation. Invisible place holder Figure 16.

  • Page 61: Radio Firmware Upgrades

    Registration is required to access the downloads area of the MDS Web site. Firmware is also available on disks from MDS that are bundled with an instal- lation utility (MDS Radio Software Upgrade (upgrade.exe)) for transferring the firmware file on the disk to the radio.

  • Page 62: Operating Principles And Configuration

    In the SAF operation, the Extension radios are set to MODE X (Details Page 36) and operate with a “dual personality”—50% of the time it serves as a Remote station and 50% of the time as a Master for sub-network Remotes. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 63: Extended Saf Network

    SAF Configuration Example Here is an outline for the configuration of a simple store-and-forward link. MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 64: Synchronizing Network Units

    Figure 19. SAF Configuration Example This configuration is easily arranged through the use of the Extension in the MDS TransNET Configuration Software’s “Store-and-For- ward Settings.” 9.2 Synchronizing Network Units The Master controls the synchronization for a given network for all modes.

  • Page 65: Synchronization Messages

    RTU has data ready to be sent. This requirement is common in many older SCADA systems which were developed for direct MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 66 (Code 0) and deletes any virtual connection to the currently addressed Remote station. ATV[x] <change verbosity> , means use numeric messages x = 0 , means use text messages (Default) x = 1 Replies with (Code 0) MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 67: Store-And-Forward Services

    Details Page 36 ADDR Network Address A number between 1 and 65,000 that will serve as a Details Page 29 common network ad- dress. All radios in the network use the same number. MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 68 XPRI address. Extension XRSSI The minimum RSSI level re- Received Signal quired to preserve synchro- Details Page 44 Strength Indicator nization with a non-primary radio. (Ineffective when XPRI is NONE) MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 69: Using The Radio's Sleep Mode (Remote Units Only)

    75 milliseconds or less. The radio can be awak- ened more often if desired, by your RTU. NOTE: The SLEEP function must be set to ON; without this, a ground on Pin 4 will be ignored. MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 70: Sleep Mode Example

    “SLEEP [ON, OFF]” on Page 42 for more information. NOTE: If INTRUSIVE polling is used in the MDS’ InSite NMS software, it is necessary to select SLEEP MODE INHIBIT ON from the Polling Options menu, on the Network Wide Diagnostic Polling screen.

  • Page 71: Reading Rssi And Other Parameters With Lpm Enabled

    Note, the Store-and-Forward setting has a significant effect on power consumption, as it effectively doubles the HOPTIME to support LPM services. For the most power-efficient operation, turn on even if you are not using repeaters. MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 72: Low-Power Mode Versus Remote's Sleep Mode

    Master as the Remote travels. When the average signal level from the currently-associated Master falls below the user-defined MRSSI level, the Remote will become out-of-sync and seek an alternate Master with a reliable signal. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 73: Operational Influences-Hoptime & Saf

    Tradi- tionally, vertical separation of the antennas of co-located radios was required MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 74: Master Station Configuration

    3 dB, or one-half power level, on both transmit and receive signals. The power divider, such as a Mini-Circuits ZAPD-1 or similar product, must be capable of handling 1 Watt and have >25 dB isolation between TX ports. MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 75: Security

    An accompanying concern becomes the security of the communication infrastructure and the security of the data itself. MDS takes this matter seriously, and provides several means for protecting the data carried over its wireless products.

  • Page 76: Technical Reference

    • Industry Canada RSS-210 and RSS-139 (CAN 3738A 12122) • UL/CSA Class 1, Div. 2; Groups A, B, C and D hazardous locations • Contact MDS for information on availabil- ity of governmental approvals in other countries DATA CHARACTERISTICS (DB-9 Data Port...

  • Page 77: Product Specifications-2.4 Ghz

    13.8 Vdc, Nominal (6–30 Vdc range) Current Draw (typical @ 27 dBm): Transmit: 510 mA @ 13.8 Vdc Receive: 100 mA @ 13.8 Vdc Sleep Mode (typical): ≤ 3 mA @ 13.8 Vdc MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 78 1.15 Lb / 0.52 k w/brackets Case: Die-cast aluminum Agency Approvals. • FCC Part 15 Pending (E5MDS-EL805-24) • IC: Approved • Contact MDS for information on avail- ability of governmental approvals in other countries DATA CHARACTERISTICS (DB-9 Data Port) Data Interface: RS-232/422/485 Interface Connector: DB-9 female Data Rate.

  • Page 79: Diagnostic Interface Connections (Rj-11)

    Table 27 Table 28 provide detailed pin descriptions for the connector in RS/EIA-232 mode and DATA RS/EIA-485 mode, respectively.Pin Descriptions—RS/EIA-232 Mode Figure 22. DATA Connector (DB-9F) As viewed from outside the radio MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 80: Pin Descriptions-Rs/Eia-232 Mode

    RTS (Request-to-Send) CTS (Clear-to-Send)—Goes “high” after the programmed CTS delay time has elapsed (DCE), or keys an attached ra- dio when RF data arrives (CTS KEY). Reserved for Special Uses (Do not connect) MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 81: Pin Descriptions-Rs/Eia-422/485 Mode

    RXD + TXD + RXD+/TXD+ RXD + RXD – RXD + RXD – TXD + RXD – RXD–/TXD– TXD – TXD – TXD – Figure 23. EIA-422/485 Wiring Schemes (Left: EIA-422, Right: EIA-485) MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...

  • Page 82: User Configurable I/O Connections

    By jumpering eyelets, external functions (unconditioned I/O) may be communicated within the TransNET network using a Network Management System (NMS) such as MDS’ InSite or a user’s custom application that uses the Network-Wide Diagnostics Protocol. Specifications for this protocol are open and are contained within the InSite distribution material on CD and on the MDS Web site.

  • Page 83: Using The I/O Points With Insite™ Nms Software

    RJ-11, Pin 1 RJ-11, Pin 2 RJ-11, Pin 3 a. Configuration and data retrievable via MDS InSite™ software as “I/O 1” b. Configuration and data retrievable via MDS InSite™ software as “I/O 2” c. Parameter retrievable via MDS InSite™ software Using the I/O Points with InSite™...
  • Page 84 2.85 10.0 -135 10mW -136 2.25 .1µW -137 6.4mW .001nW -138 .500 -139 .445 5.75 -140 .01ƒW .400 3.2mW .355 2.5mW 1.25 .320 2.0mW 1.18 .280 1.6mW 1.00 3.51 .252 1.25mW 0.90 MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 85 Clear-to-Send Delay (CTS) Command 31 Clear-to-Send Hold Time (CTSHOLD) Command 32 Clock-Synchronizing Master Address (CSADDR) Command 31 CODE command (display/set encryption value) 31 Command 36 TEMP (radio’s internal temperature reading) 43 Commands MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 86 SLEEP (transceiver sleep mode) 42 SREV (firmware/software revision level) 42 STAT (list alarms) 43 TEMP (display internal temperature) 43 UNIT (unit address) 43 XADDR (extended address) 44 XMAP (Map of Extension Addresses) 44 MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 87 (see MODE command) 36 DKEY command (disable transmitter) 21, 40 DKEY, Disable Transmitter, Command 33 DLINK command (set/display baud rate of diagnostics link) 49 MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 88 6 tail-end link 4 typical MAS network 3 INIT command (restore factory default settings) 34 Initialize 34 InSite software 49 Installation antenna 15 connecting transceiver to data equipment 15, 22 MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 89 Mounting instructions/dimensions 14–15 Multiple Address System (MAS) network, illustrated 3 Multiple Address Systems (MAS) 2 Network Address (ADDR) Command 29 Network configuration commands 23 Network Diangnsotics Mode (DTYPE) Command 33 Network-wide diagnostics MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 90 22 mounting the transceiver 14–15 network-wide diagnostics 49 performance optimization 20 performing network-wide diagnostics 49 programming radio for network-wide diagnostics 49 reading LED status indicators 19 site selection 6 troubleshooting 45–48 MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 91 (ASENSE command) 29 alarm output signal (AMASK command) 29 CTS hold timer (CTSHOLD command) 32 CTS line response timer (CTS command) 31 data interface baud rate (BAUD command) 29 MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 92 LED status indicators 20, 46 troubleshooting 48 Tail-end link Adding to Existing Network 3 cable wiring for, illustrated 19 illustrated 4 installation 18 Technical specifications 66–68 TEMP command (display internal temperature) 43 viii MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...
  • Page 93 44 ZONE CLEAR (clear zone statistics log) 44 ZONE DATA Command (read zone statistics log) 44 Zone, Clear Statistics Log (ZONE CLEAR) 44 Zone, Read Statistics Log (ZONE DATA) 44 MDS 05-2708A01, Rev. D MDS TransNET I&O Guide...
  • Page 94 MDS TransNET I&O Guide MDS 05-2708A01, Rev. D...

  • Page 95: Factory Service

    N CASE OF DIFFICULTY... MDS products are designed for long life and trouble-free operation. However, this equipment, as with all electronic equipment, may have an occasional component failure. The following information will assist you in the event that servicing becomes necessary.
  • Page 96 Microwave Data Systems Inc. 175 Science Parkway Rochester, NY 14620 General Business: +1 585 242-9600 FAX: +1 585 242-9620 Web: www.microwavedata.com A product of Microwave Data Systems Inc.
