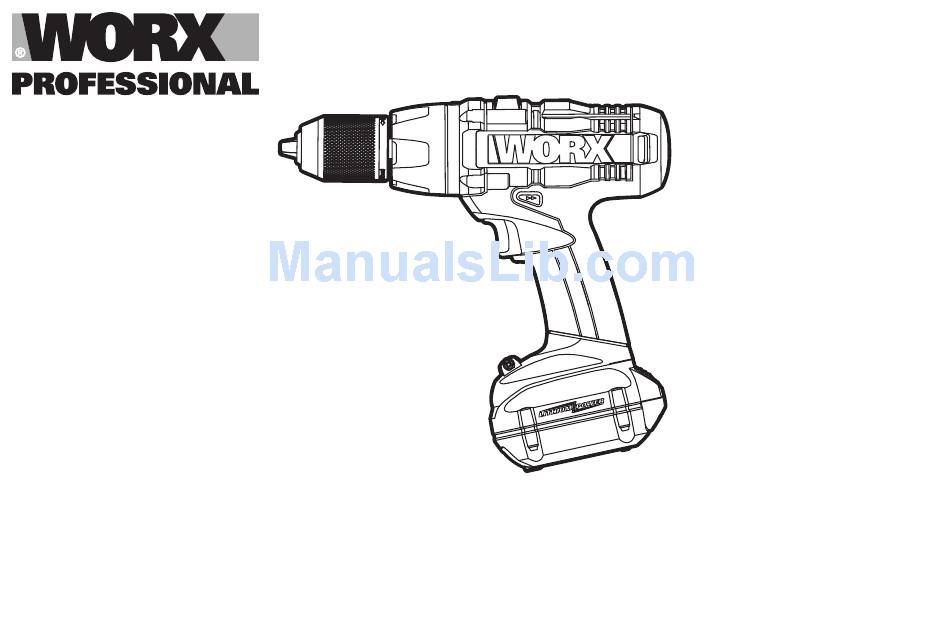

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS CORDLESS DRILL WU159 WU166 WU166.9 WU170...
-
Page 2: General Power Tool Safety
General power tool safety entering a power tool will increase the risk of electric shock. d) Do not abuse the cord. Never use the cord for carrying, pulling warnings or unplugging the power tool. keep cord away from heat, oil, sharp edges or moving parts. - Page 3 This enables better control of the power tool in unexpected situations. g) Use the power tool, accessories and tool bits etc. in f) Dress properly. Do not wear loose clothing or jewellery. keep accordance with these instructions, taking into account the your hair, clothing and gloves away from moving parts.
- Page 4 Additional safety rules for your operation where the cutting tool may contact hidden wiring. Contact with a ‘live’ wire will also make exposed metal parts of the tool ‘live’ cordless drill and shock the operator. warning: if a small amount of electrolyte should leak from Remove the battery pack from the drill before carrying out the battery pack under extremes of temperature or after heavy adjustments.
- Page 5 Symbols Do not mix cells of different manufacture, capacity, size or type within a device. Keep cells and battery pack out of the reach of children. To reduce the risk of injury, user must read instruction manual Seek medical advice immediately if a cell or a battery pack has been swallowed.
-
Page 6: Component List

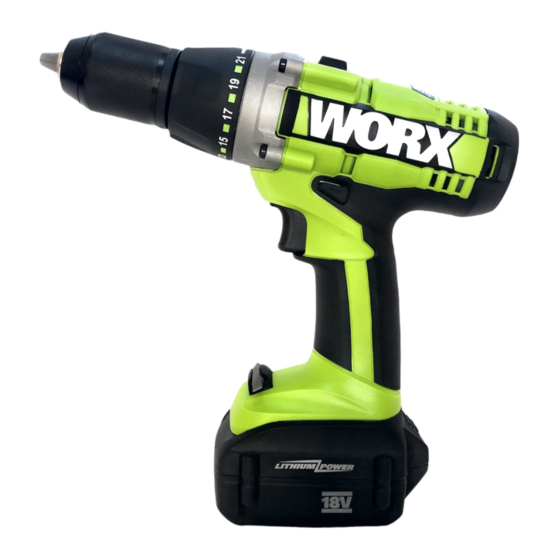

Component list Chuck Torque Adjustment Ring Two-Speed Gear Control Forward/Reverse Rotation Control Soft Grip Handle Battery Pack Release Button Battery Pack * Double Ended Bit * On/Off Switch Led Light * Not all the accessories illustrated or described are included in standard delivery. -
Page 7: Technical Data
Type wU159 wU166 wU166.9 wU170(1- designation of machinery, other variations on how the tool is used: representative of cordless dril) How the tool is used and the materials being drilled. - Page 8 Accessories Model wU159 wU166 wU166.9 wU170 Charger 220V-240V 110-240V~50/60Hz • voltage ~50/60Hz Battery WA3514 WA3522 WA3511 • type 2.6Ah Li-ion 2.6Ah Li-ion 1.3Ah Li-ion Battery • quantity Charger WA3836 WA3836 WA3842 • type Charger • quantity Charging 45min 45min 30min •...
-
Page 9: Operating Instructions
Operating instructions Note: Before using the tool, read the instruction book carefully. iNteNDeD USe The machine is intended for driving in and loosening screws as well as for drilling in wood, metal, ceramic and plastic. Before PUttiNG iNto oPeratioN • BATTERY CHARGING The battery charger supplied is matched to the Li-ion battery installed in the machine. - Page 10 The on/off switch is fitted with a brake function which stops your chuck immediately when you quickly release the switch. It is also a variable speed switch that delivers higher speed and torque with increased trigger pressure. Speed is controlled by the amount of switch trigger depression.
- Page 11 Gear i Low speed range: for screwdriving or working with large drilling diameter Gear ii High speed range: for working with small drilling diameter warning: to prevent gear damage, always allow the chuck to come to a complete stop before changing the direction of rotation or the two-speed gear control.
- Page 12 1 - 4 for driving small screws 5 - 8 for driving screws into soft material 9 - 12 for driving screws into soft and hard material 13 - 16 for driving screws into hard wood 17 - 21 for driving larger screws for heavy drilling leD liGHt (10) The LED light allows you to keep a clear view under less illuminated...
-
Page 13: Problem Solution
concrete and masonry. when drilling in metal, only use HSS screws into hard wood will use up the battery pack energy faster than drill bits in good condition. always use a magnetic bit holder lighter working conditions. Do not re-charge your battery pack below (not included) when using short screwdriver bits. -
Page 14: Disposal Of An Exhausted Battery Pack
Disposal of an exhausted battery pack To preserve natural resources, please recycle or dispose of the battery pack properly. This battery pack contains Lithium batteries. Consult your local waste authority for information regarding available recycling and/or disposal options. Discharge your battery pack by operating your drill, then remove the battery pack from the drill housing and cover the battery pack connections with heavy-duty adhesive tape to prevent short circuit and energy discharge. -
Page 15: Ec Declaration Of Conformity
Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Declare that the product, Description worX cordless drill Type wU159 wU166 wU166.9 wU170 (1- designation of machin- ery, representative of cordless dril) Function Drilling Complies with the following Directives, •...
