Summary of Contents for Worx WU362

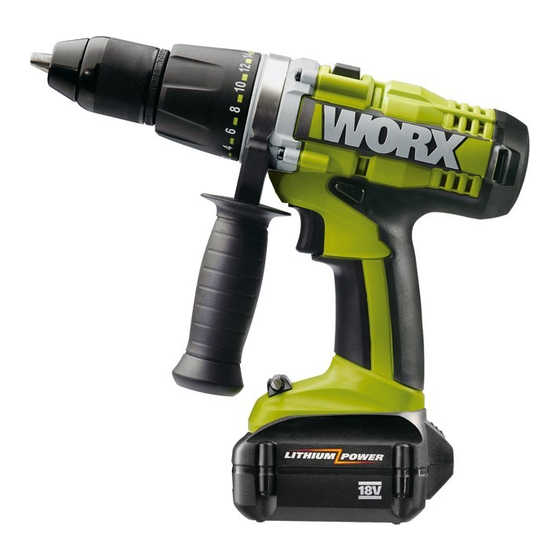

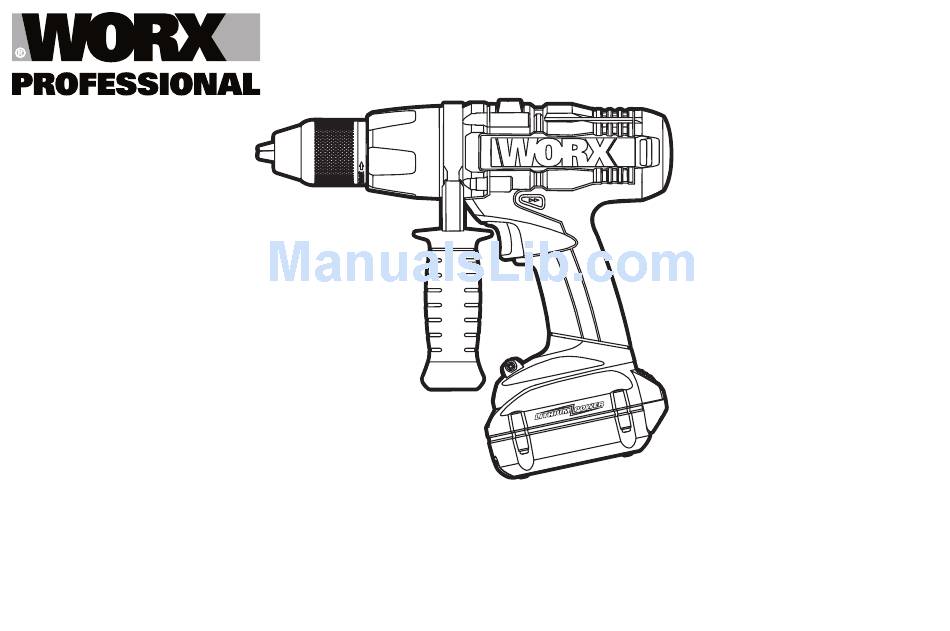

- Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS CORDLESS HAMMER DRILL WU362 WU370 WU370.9...
-
Page 2: General Power Tool Safety
General power tool safety c) do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. warnings d) do not abuse the cord. never use the cord for carrying, pulling or unplugging the power tool. - Page 3 the power tool may result in personal injury. poorly maintained power tools. e) do not overreach. keep proper footing and balance at all f) keep cutting tools sharp and clean. Properly maintained cutting times. This enables better control of the power tool in unexpected tools with sharp cutting edges are less likely to bind and are easier to situations.
-
Page 4: Drill Safety Warnings
Drill Safety Warnings keep battery pack clean and dry. Wipe the battery pack terminals with a clean dry cloth if they become dirty. Wear ear protectors when impact drilling. Exposure to noise can Battery pack needs to be charged before use. always refer to cause hearing loss. - Page 5 Symbols Do not use any battery pack which is not designed for use with the equipment. Keep battery pack out of the reach of children. To reduce the risk of injury, user must read instruction manual After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum Warning performance.
-
Page 6: Component List
Component list Keyless Chuck Torque Adjustment Ring Two-Speed Gear Control Forward/Reverse Rotation Control On/Off Switch Soft Grip Handle Battery Pack Release Button Battery Pack * Double Ended Bit Auxiliary Handle * Sight Light * Not all the accessories illustrated or described are included in standard delivery. -
Page 7: Technical Data
Technical data Vibration information Type Wu362 Wu370 Wu370.9(360-379-designation of Vibration total values (triax vector sum) determined according to EN 60745: • machinery, representative of Battery-powered drill) Vibration emission value a = 8.13m/s h,ID • Impact drilling into concrete Model no. - Page 8 Maintain this tool in accordance with these instructions and keep well 2.6Ah Li-Ion Battery packs (WA3514) lubricated (where appropriate). 45min Charger (WA3836) If the tool is to be used regularly then invest in anti vibration Wu362 accessories. Auxiliary handle Avoid using tools in temperatures of 10 C or less.
-
Page 9: Intended Use
Operating instructions note: Before using the tool, read the instruction book carefully. intended uSe The machine is intended for driving in and loosening screws as well as for drilling in wood, metal, ceramic and plastic. BefoRe Putting into oPeRation a) cHaRging tHe BatteRy The battery charger supplied is matched to the Li-ion battery installed in the machine. -
Page 10: Operation
Operation auXiliaRy Handle (See fig.B) Slide the handle onto the drill and rotate it to the desired working position. To clamp the auxiliary handle, rotates the handgrip clockwise. To loosen it, rotate the handgrip anti-clockwise. Always use the handle during operation. on/off SWitcH (See fig.c) Depress the On/Off switch to start and release it to stop your drill. - Page 11 tWo-SPeed geaR contRol (See fig.d) The drill has a two-speed gear control designed for drilling or driving at LOW (mark is 1) or HIGH (mark is 2) speeds. A slide switch is located on top of the drill to select either LOW or HIGH speed. When using the drill in the LOW speed range, the speed will decrease and the drill will have greater power and torque.
- Page 12 a lower setting. When drilling in masonry and concrete choose the hammer position When drilling in wood, metal, plastic and screwdriver choose the drill position . Make the setting as follows: 1 - 4 for driving small screws 5 - 8 for driving screws into soft material 9 - 12 for driving screws into soft and hard material...
-
Page 13: Problem Solution
Problem solution dRilling When drilling into a hard smooth surface, use a center punch to mark the desired hole location. This will prevent the drill bit from slipping WHy doeS tHe HaMMeR dRill not tuRn on WHen you off center as the hole is started. Hold the tool firmly and place the tip PReSS tHe SWitcH? of the bit at the point to be drilled. -
Page 14: Maintenance
Maintenance Disposal of an exhausted battery pack Remove the battery pack from the tool before carrying out any adjustment, servicing or maintenance. To preserve natural resources, please recycle or dispose of Your power tool requires no additional lubrication or maintenance. the battery pack properly. -
Page 15: Declaration Of Conformity
Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Declare that the product, Description WoRX cordless hammer drill Type Wu362 Wu370 Wu370.9 (360-379-designation of machinery, representative of Battery-powered drill) Function drilling Complies with the following directives, Machinery directive 2006/42/ec •...
