Transmitter Programming Guide
These transmitters makes use of icons (symbols) to identify the reac-
tion your security system/keyless entry/and or remote start system,
where applicable, will have when any icon (button) is pressed.
These icons are programmed at time of installation to meet the needs of
the individual and to complement the vehicle that the system is installed
in. To replace a transmitter or add transmitters, please follow the
programming instructions listed on the pages of this manual.
RECEIVER
BUTTON
CHANNEL
1
2
1
3
3
4
5
* Where So Equipped

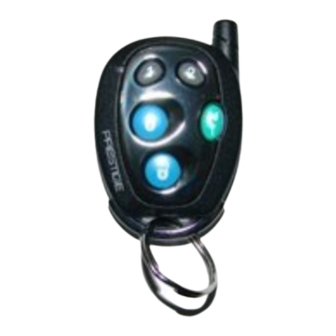

Model XR91
SYSTEM FUNCTION
Lock And Arm Alarm, also initiate and
terminates *Panic
Unlock And Disarm, also initiates and
terminates *Panic. Programmable to
unlock drivers door and or all doors.
Lock and arm/unlock and disarm. May
be programmed to unlock driver's door
or all doors. Also will initiate and
terminate *Panic.
Pulsed or switched output to control
Remote Trunk Release or optional
device connected to channel 3.
When pressed and release two times,
will provide pulsed output or activate the
Remote Start option when installed.
When so equipped, this button can be
used to operate an optional device
connected to channel 4.
When so equipped, this button can be
used to operate an optional device
connected to channel 5.
1
128-7860
1 of 8
Advertisement
Related Manuals for Audiovox Auto Security XR91
Summary of Contents for Audiovox Auto Security XR91
- Page 1 Model XR91 Transmitter Programming Guide These transmitters makes use of icons (symbols) to identify the reac- tion your security system/keyless entry/and or remote start system, where applicable, will have when any icon (button) is pressed. These icons are programmed at time of installation to meet the needs of the individual and to complement the vehicle that the system is installed in.
-
Page 2: Programming Transmitters
Some of the more popular options available for the unused Option Buttons of your transmitter are: AS 9554 Remote Garage Door Interface (APS-2K4S only) AS 9075 Remote car starter AS 9153 Remote window roll up AS 9256 Remote trunk release relay Although the most common use of the transmitter buttons are shown on the front page of this guide, any button or button combination can be programmed into any receiver channel. - Page 3 NOTE: If your transmitter button has the Lock/Unlock icon on one button, press and release the valet push button switch 2 times then move on to step #8. 5) Press and release the valet push button switch one time to advance to channel 2.
- Page 4 (Repeat this for each transmitter you wish to operate the Channel 6 output, Driver Priority 1) 15) Within 10 seconds, press and release the valet program switch one time. (Siren emits 7 short chirps indicating channel 7 has been entered) 16) Within 10 Seconds, Press and hold the unlock button (or any unused button(s)) of the first transmitter you wish to control Channel 7 output, (Driver Priority 2) until a long chirp is heard from the siren.
-
Page 5: Battery Replacement
#4. XR91 uses CR2032 Coin Cell Type Batteries. SEE ASSOCIATED DIAGRAMS ON FOLLOWING PAGE 128-7860... - Page 6 Remove two #0 philips head screws where indicated to gain access to the CR 2032 battery. Carefully remove transmitter back cover keeping hold of the metal key ring to prevent it's loss. Carefully remove the discharged battery by sliding it out from under the clip in the direction indicated by the arrow in the diagram below.
- Page 7 Credit card purchasers can order additional or replacement transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and follow the instructions from the operator interface. Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y., 11788 Attn.: TRANSMITTER DEPARTMENT 128-7860...
- Page 8 © 2006 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, NY, 11788 128-7860 128-7860 8 of 8...
