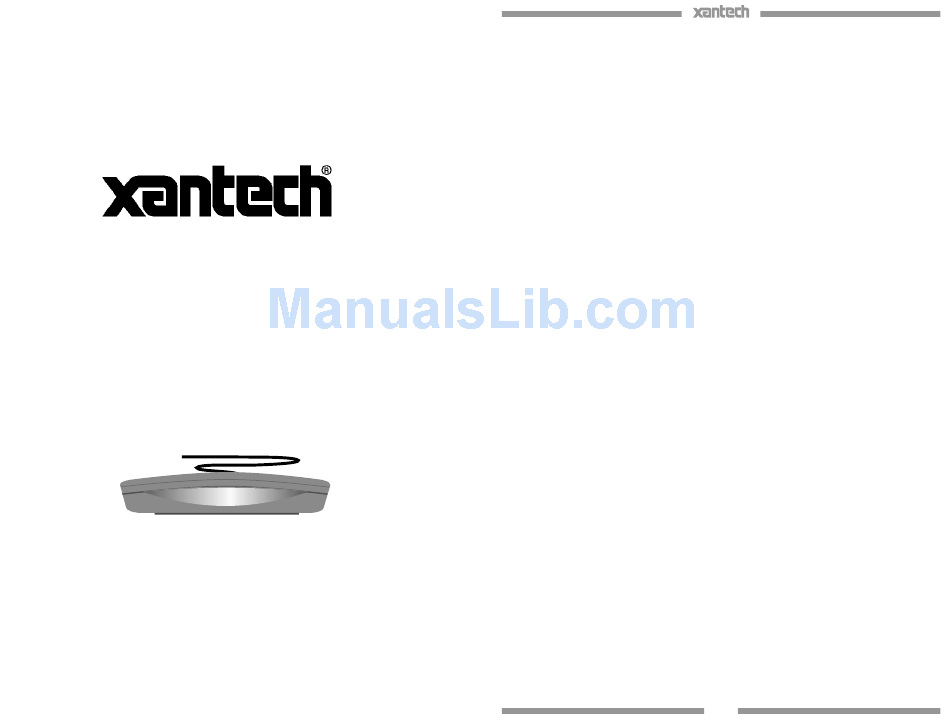

INSTALLATION INSTRUCTIONS
HL95
Hidden Link™ Shelf Top
Extended Range
Plasma\LCD\LED\CFL Friendly
IR Receiver
DESCRIPTION

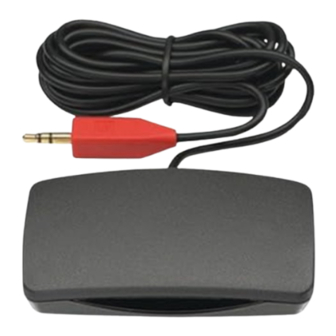

The Hidden Link IR Receiver is a small shelf-top infrared repeater assembly. It
includes an IR receiver and a CB12 Connecting Block. The Hidden Link IR
Receiver is equipped with a 7-foot cable and a 3.5mm stereo mini plug, which
is plugged directly into the "IR RCVR" jack on the CB12. It can also be plugged
into the "AUX" or "IR RCVR" jack of other Xantech connecting blocks, such as
the models 789-44, CB60, and 791-44. The Hidden Link IR Receiver is
primarily intended for use in installations where the connecting block is within
reach of its 7-foot cable – as when installing the Hidden Link IR Receiver in a
cabinet where the controlled equipment is behind closed doors.
FEATURES
Very small package, only 2.00"L x 3.15"W x 0.70"H.
System testing red-talk-back LED.
Includes CB12 Connecting Block for easy system installation.
SPECIFICATIONS
Infrared carrier frequency bandwidth: 25 – 60 kHz.
Reception range: Up to 120 feet, depending on remote control output
strength and ambient conditions.
Nominal reception angle: 55 degrees off axis.
Cable requirements: See "INSTALLATION" below.
Max. transmission length: 1 mile using 18 gauge wire.
Maximum current output: 100mA
Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
Dimensions: 2.00"x3.15"x0.70" (51mm x 80mm x 18mm)
Power requirements: +12VDC, 20mA.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the HL95 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Xantech HL95

  • Page 1 “IR RCVR” jack on the CB12. It can also be plugged into the “AUX” or “IR RCVR” jack of other Xantech connecting blocks, such as the models 789-44, CB60, and 791-44. The Hidden Link IR Receiver is primarily intended for use in installations where the connecting block is within reach of its 7-foot cable –...
  • Page 2 INSTALLATION CABLE CONNECTIONS HL95’s may also be used where the 7-foot cable is not long enough. Simply cut QUICK-START off the mini plug, strip the leads and splice them to a 3-conductor extension cable with a terminal block or other means. Then connect the extension cable A typical system will use an IR receiver, several emitters, and a power supply to the 3-terminal block on the CB12 as shown in the figure below.
  • Page 3 12. Sometimes interference will cause the red Talk-Back LED on the front of the Hidden Link IR Receiver to blink dimly, HL95 IR Receiver intermittently, or continuously. • The Talk-Back Led should only blink when you are sending...
  • Page 4 Limited Warranty Xantech® warrants its products to be free of defects in materials or workmanship. This is a Limited Lifetime warranty from the date of purchase by the original consumer. Any products returned to Xantech and found to be defective by Xantech within the warranty period will be repaired or replaced, at Xantech’s option, at no charge.
