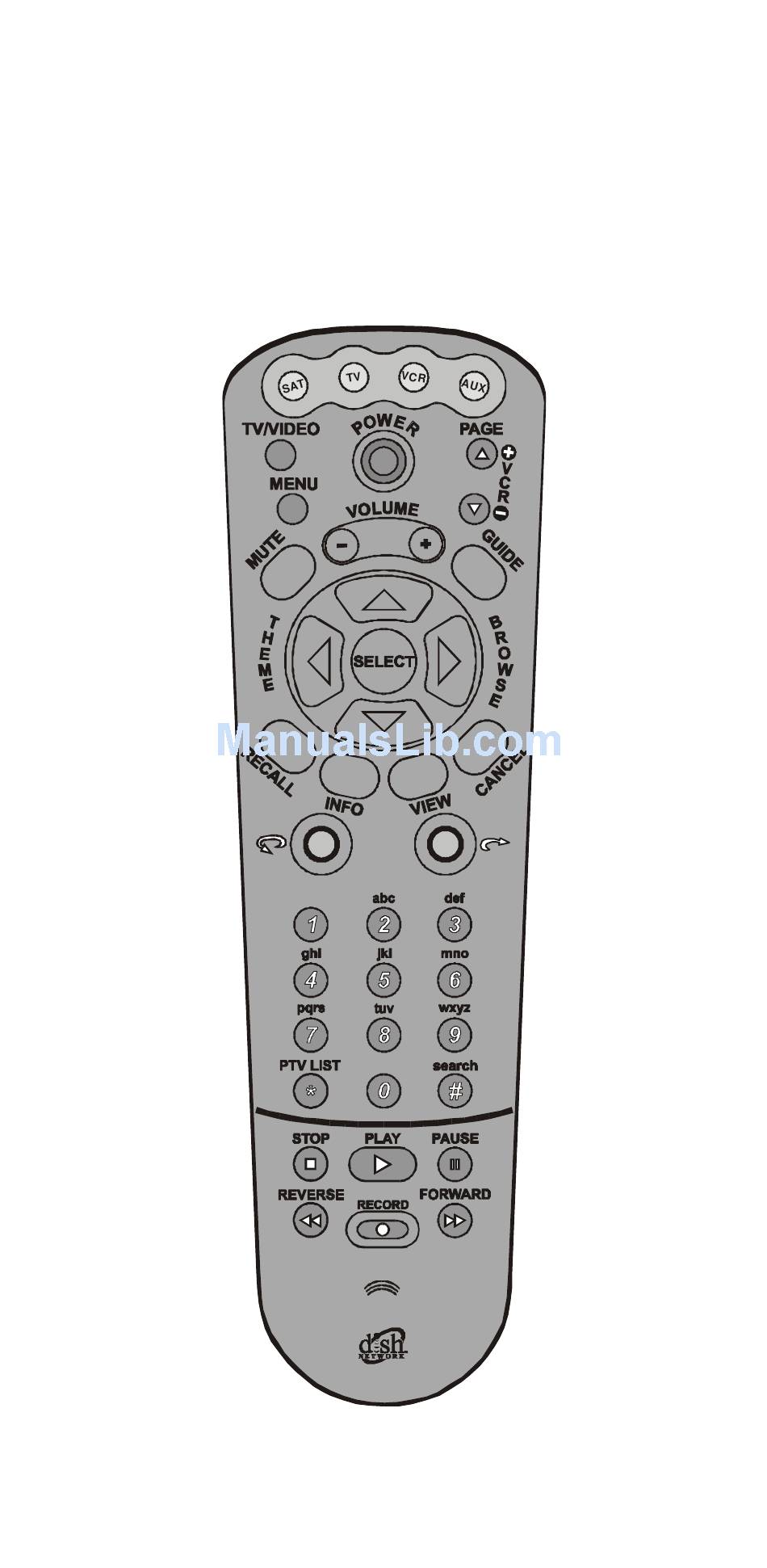

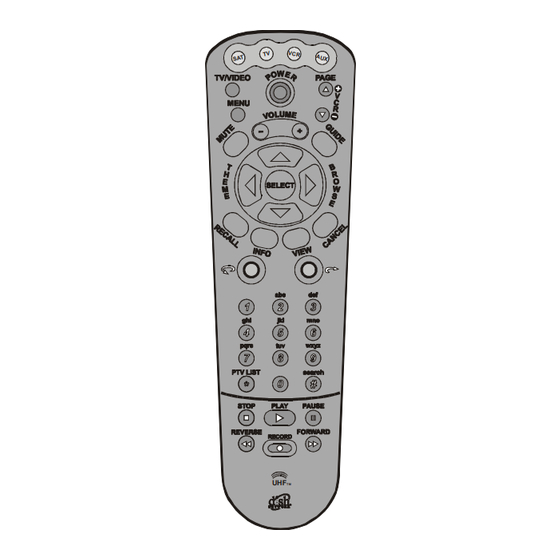

Digital PVR

Remote Control

User Guide
UHF
T M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Digital PVR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dish Network Digital PVR

Summary of Contents for Dish Network Digital PVR

  • Page 1: Remote Control

    Digital PVR Remote Control User Guide...
  • Page 2 MPORTANT EGULATORY ACTORS IRELESS EMOTE ONTROL This device complies with Part 15 of Federal Communications Commission (FCC) Rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference that may cause undesired operation.

  • Page 3: Table Of Contents

    Contents of This Guide ONTENTS OF UIDE About the Remote Control........2 If Your Receiver Does Not Respond ....2 Remote Control Signals ........3 How to Install the Batteries ......... 3 Remote Control Modes ........3 How to Use the Buttons ........4 SAT (Satellite Receiver) Mode ......

  • Page 4: About The Remote Control

    • This remote can be used with both IR only and IR/UHF receivers (a UHF receiver has an antenna attached to its back panel). • This remote cannot be used with the DISH Network Model 7100/ 7200 (DishPlayer) receiver. • On most non-DishPVR receivers, the SKIP BACK button is now the SYSTEM INFORMATION button.

  • Page 5: Remote Control Signals

    Remote Control Modes EMOTE ONTROL IGNALS The remote control uses both Infra-Red (IR) light and UHF signals to control the satellite receiver and other devices. • IR light travels only short distances (40 feet or less), and cannot go through walls or other solid objects. You must point the remote control directly at the device, with no objects blocking the signal path.

  • Page 6: How To Use The Buttons

    (unless the receiver’s address is not 1, in which case you will need to change its address per the instructions on page 23). 1. For a device other than the receiver, set up the remote to control the device. See How to Set Up the Remote to Control Other Devices on page 18 for instructions.
  • Page 7 TV. MUTE B UTTON Some DISH Network receivers have their own Mute control. For those that do, you can press this button to mute the satellite receiver’s sound. 113737 Page 5...
  • Page 8 Note: If the remote is programmed to control a TV, pressing this button will mute the sound of the TV. POWER B UTTON Press this button to turn the receiver on or off. The green POWER light on the receiver front panel lights up to show the receiver is on, and goes out to show the receiver is off.
  • Page 9 How to Use the Buttons UP/DOWN/LEFT/RIGHT RROW UTTONS • When you are in a menu, press these buttons to move the highlight to an option. • When you watch a program, press the UP or DOWN button to change channels on the satellite receiver. •...
  • Page 10 RECALL B UTTON Press this button to return to the last channel you watched. INFORMATION (INFO) B UTTON • Press this button for more information when you have the Program Guide or the Browse Banner open, or when you watch a program. •...
  • Page 11 How to Use the Buttons SKIP BACK B UTTON With DishPVR Receivers, this button lets you skip back a few seconds in the program. With most non-DishPVR receivers, this is the SYSTEM INFORMATION button. SKIP AHEAD B UTTON With DishPVR Receivers, this button lets you skip ahead about 30 seconds in a program.
  • Page 12 buttons to enter the number). Then, move the highlight to the place for the next number you need to enter, or press the SELECT button if you are done entering numbers. POUND (#) B UTTON You can use this button in several procedures in this User Guide. Note: The word “search”...

  • Page 13: Tv Mode

    TV Mode • Press the STOP button to stop playing or stop recording a program (event). PVR Buttons For DishPVR Receivers Only • Press the PLAY button to play a program. • Press the PAUSE button to pause a program. Press this button or the PLAY button to go back to viewing the program.
  • Page 14 TV/VIDEO B UTTON If you have a second video source such as cable TV connected to the back of your TV, you can use this button to switch between the two inputs. POWER B UTTON Press this button to turn the television on or off. Note: If you do not program AUX mode to control any device, you can use this button to turn the TV On and Off.

  • Page 15: Vcr Mode

    VCR Mode UMBER UTTONS Use these buttons to enter a channel number or other numbers in a TV menu. VCR M AUX M VCR) ODE FOR A ECOND • Some of the features described below may not apply to your VCR. See your VCR owner’s manual for details about your VCR’s features.
  • Page 16 VCR M UTTON To use the remote with a VCR, you must first set up the remote to control the VCR. See How to Set Up the Remote to Control Other Devices on page 18. Then, you must press the VCR mode button to set the remote to VCR mode.

  • Page 17: Aux Mode For Cable Tv Box

    AUX Mode for Cable TV Box • Press the DOWN arrow button to pause a videotape. Press this button or the SELECT button to restart the tape. • Press the LEFT arrow button to rewind a videotape. • Press the RIGHT arrow button to fast forward a videotape. VCR B UTTONS •...
  • Page 18 Note: If you do not program AUX mode to control an amplifier, a tuner or any device, you can use the AUX mode button to turn the TV On and Off. TV/VIDEO B UTTON Use this button to switch the cable box between its “TV” mode and its “video”...

  • Page 19: Aux Mode For Tuner Or Amplifier

    AUX Mode for Tuner or Amplifier UMBER UTTONS Use these buttons to enter a channel or other numbers in a cable TV box menu. AUX M ODE FOR UNER OR MPLIFIER Some of the features described below may not apply to your tuner or amplifier. See your device owner’s manual for details about the device’s features.

  • Page 20: Remote Control Procedures

    MUTE B UTTON • If the tuner or amplifier has its own volume control, press this button to turn the sound on or off. VOLUME B UTTON • If the tuner or amplifier has its own volume control, press this button to turn the volume down (-) or up (+).
  • Page 21 Remote Control Procedures 3. Press and hold the mode button for the device you want the remote to control, for about three seconds. When all the other mode button For example backlights come on, release the mode button. It will begin flashing. Note The first time you program AUX mode, you may see the TV Mode button light up.

  • Page 22: How To Scan For Device Codes

    OW TO CAN FOR EVICE ODES 1. Press and hold the mode button for the device for about three seconds. When all the other mode button backlights come on, release the button. For example The button backlight flashes to show the remote is ready.

  • Page 23: How To Check The Device Codes

    Remote Control Procedures 6. If the remote reaches the correct code, the device turns off. If this happens, press the POUND (#) button to store the code in the remote. 7. Press the POWER button to turn the device back on. 8.
  • Page 24 To set up the remote to control the volume of a tuner or amplifier instead of the volume of a TV, do the following: 1. Press and hold the AUX mode button for three seconds, and then release it. 2. Press the POUND (#) button. 3.

  • Page 25: How To Change The Address

    How to Change the Address OW TO HANGE THE DDRESS If your receiver does not respond to this remote, it may have a different address. To make sure both the receiver and the remote have the same address, do this. 1.
  • Page 26 5. Press the SELECT button to clear the Important System Information menu from the TV screen or put the Smart Card back in its slot. 6. Your remote should now control the receiver. If not, go back and do steps #1 through #5 again. Page 24 113737...

  • Page 27: Device Codes

    Device Codes Electrohome 526, 573, 709, 713 Elta EVICE ODES Emerson 526, 527, 528, 533, 534, 535, 536, 537, 538, 539, 540, 541, 573, 622, 691, 692, 695, 696, 699, 720 These tables contain the Envision 506, 712 manufacturer codes for Etron programming the remote to Fisher...
  • Page 28 Montgomery 505, 506, 515, 518, 534, Signature Wards 536, 543, 564, 565, 567, Silver 568, 607, 619, 712, 714, Solavox 505, 506, 516, 523, 531, Sony 500, 578, 609, 619, 622, 695, 712 502, 617, 695 Soundesign 525, 536, 541, 691, 695 National 509, 648, 697 Spectricon...

  • Page 29: Vcrs

    Device Codes Memorex 533, 549, 554, 566, 581, 585, 588, 608 Aiwa 588, 622, 623, 624 567, 568, 609 Akai 513, 514, 515, 516, 517, 518, 519, 520, 568 Mitsubishi 562, 567, 568, 569, 570, 571, 609 Alba Montgomery 527, 554, 580, 585, 588, Amstrad Wards 589, 590, 591, 607, 608,...

  • Page 30: Dvd Players

    Technics 553, 554 Teknika 554, 587, 588 Toshiba 534, 535, 567, 590 Totevision 580, 591 Unitech Vector Research 530, 600 Victor 561, 562, 600 Video Concepts 568, 600 Videosonic Yamaha 530, 592, 594, 600, 601 Zenith 500, 501, 533 DVD P LAYERS Hitachi 629, 632...

  • Page 31: Tuners And Amplifiers

    Device Codes UNERS MPLIFIERS Aiwa 656, 680 Carver Fisher Goldstar 657, 683 Kenwood Luxman Marantz Memorex Nakamichi Onkyo 660, 662, 678 Optimus Panasonic Pioneer 658, 675, 679 Proton Quasar Realistic 665, 666 Scott Sherwood Sony 667, 668, 672, 673, 674, 680, 684 Symphonic Technics...

  • Page 32: How To Trouble-Shoot

    OW TO ROUBLE HOOT What Is Possible Reason What to Do Happening While you do a • If you are Start over. remote programming the procedure, the remote and do not remote control press a button for “times out and 20 seconds, the you cannot remote exits the...

  • Page 33: Limited Warranty

    IMITED ARRANTY This warranty extends only to the original user of the DISH Network remote control (“you,” “your”) and is limited to the purchase price of the remote control. EchoStar Communications Corporation and its affiliated companies (“we,”...
  • Page 34 REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY. WE SHALL NOT BE HELD LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY ON THIS DEVICE, NOR FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGE RESULTING FROM THE USE OF, OR INABILITY TO USE, THIS DEVICE.
  • Page 35 CCESSORY ARRANTY An accessory is any DISH Network branded equipment, displaying the DISH Network logo, excluding the receiver, Smart Card, cables and hookups, and non-mechanical components. A one-year warranty becomes effective upon the activation of the DISH system or date of purchase, if bought separately.

  • Page 36: If You Need Help

    1. Review this User Guide. 2. See How to Trouble-Shoot on page 30. 3. Call the DISH Network Customer Service Center at 1-800-333-DISH (3474). Have the date of purchase and your customer account number ready. 4. A Representative will help you.

  • Page 37: Index

    Index NDEX About the Remote Control ..........2 Address, How to Change the Remote ....... 23 Advance Exchange Program ..........32 Amplifier Device Codes.............29 Batteries, How to Install............3 Buttons, How to Use ............4 AUX Mode for a Second TV ......11 AUX Mode for a Second VCR .......
  • Page 38 If You Need Help .............. 34 Index.................. 35 Install the Batteries, How to ..........3 Limited Warranty ...............31 Modes, Remote Control ............3 AUX Mode for Cable TV Box....... 15 AUX Mode for Second TV ......11 AUX Mode for Second VCR ......13 AUX Mode for Tuner or Amplifier ....
  • Page 39 Tuner and Amplifier Device Codes ........29 TV Device Codes ...............25 VCR Device Codes ............27 Volume Control, Switch Between TV and Device ....21 Page 37 113737...
  • Page 40 Notes 113737...
  • Page 41 Please send any comments or questions directly to: EchoStar Technologies Corporation, Technical Publications, 94 Inverness Terrace East, Englewood, Colorado 80112 Part Number: 113737 Printed in the United States of America. DISH Network and the DISH Network logo are trademarks and service marks of EchoStar Technologies Corporation.
  • Page 42 For ALL your customer needs, call the DISH Network CUSTOMER SERVICE CENTER at 1-800-333-DISH (3474). 113737...
