'LJLWDO
5HPRWH &RQWURO

User Guide

A single remote to control up to four devices.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the digital remote control and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dish Network digital remote control

Summary of Contents for Dish Network digital remote control

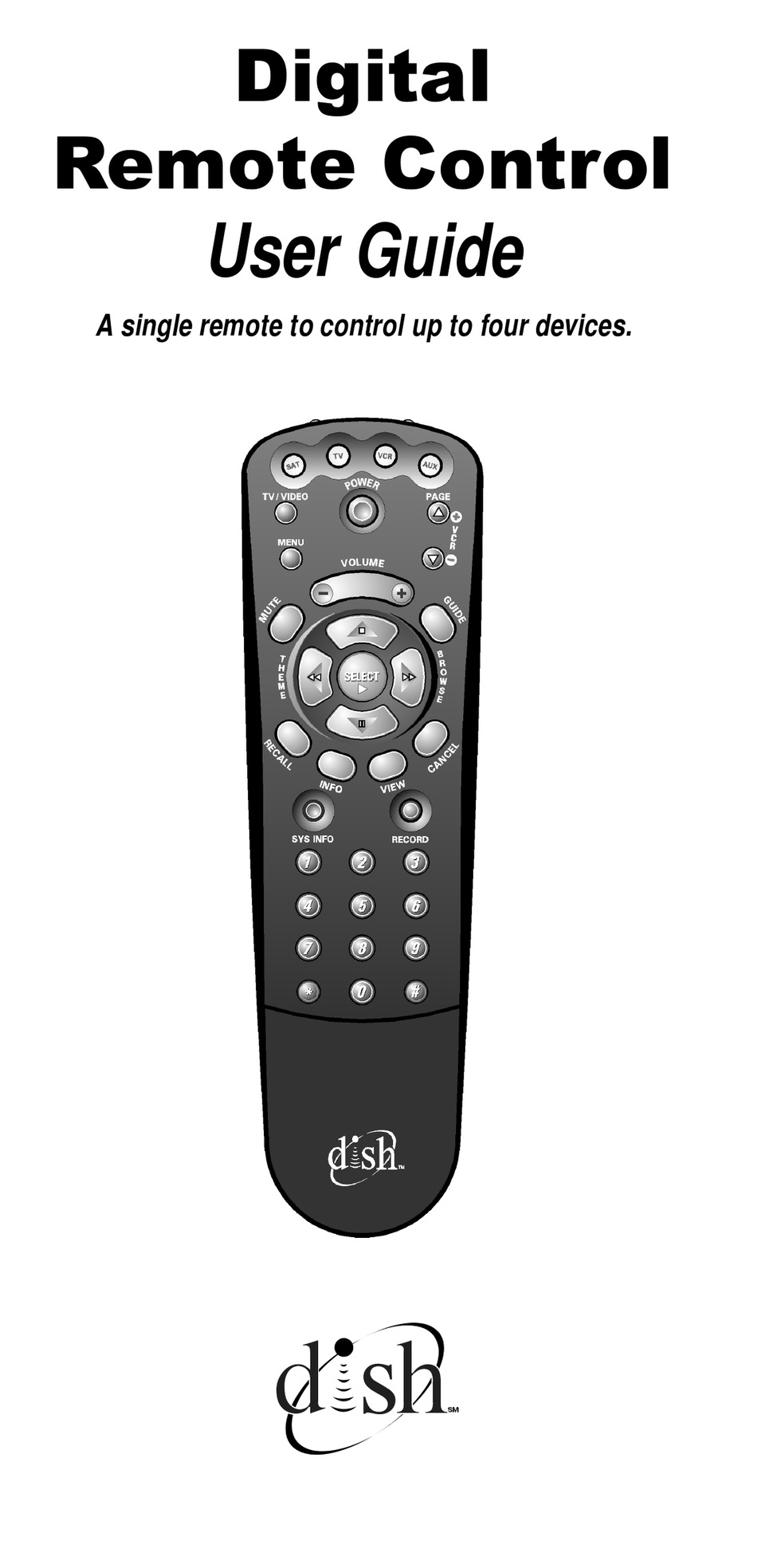

  • Page 1: User Guide

    'LJLWDO 5HPRWH &RQWURO User Guide A single remote to control up to four devices.
  • Page 2 MPORTANT EGULATORY ACTORS IRELESS EMOTE ONTROL This device complies with Part 15 of Federal Communications Commission (FCC) Rules. Operation is subject to the following conditions: • This device may not cause harmful interference. • This device must accept any interference that may cause undesired operation.

  • Page 3: Table Of Contents

    ABLE OF ONTENTS About the Remote Control....... page 2 Remote Control Signals: UHF or IR....page 2 Installing Batteries in the Remote Control..page 3 Remote Control Modes ........page 3 Using the Remote Control Buttons ....page 4 SAT (Satellite Receiver) Mode......page 4 TV (Television) Mode ........page 8 VCR (VideoCassette Recorder) Mode.....page 10 AUX (Auxiliary) Mode for Cable TV Box ..page 12...

  • Page 4: About The Remote Control

    EMOTE ONTROL The remote control gives you easy access to all the features of a DISH Network satellite TV system. You can set up the remote to control up to three devices other than the satellite TV receiver. The three devices may include a TV, a VCR, a DVD player, a cable TV box, a tuner, or an audio amplifier.

  • Page 5: Installing Batteries In The Remote Control

    Installing Batteries in the Remote Control NSTALLING ATTERIES IN THE EMOTE ONTROL The remote control comes with AAA batteries, packaged separately. When you replace old batteries, you should replace all of the batteries. Use batteries of the same grade, for example, alkaline or carbon zinc, and do not mix batteries of different grades.

  • Page 6: Using The Remote Control Buttons

    SAT (Satellite Receiver) Mode SING THE EMOTE ONTROL UTTONS SAT (S ATELLITE ECEIVER Some of the features described below may not apply to your satellite receiver. See the receiver User Guide for details about the receiver’s features. If a remote control button is not described in this section, it does not work in SAT mode.
  • Page 7 SAT (Satellite Receiver) Mode OWER UTTON Press this button to turn the receiver ON or OFF. The green Power light on the receiver front panel lights up to show that the receiver is ON, and goes out to show that the receiver is OFF. P AND RROW UTTONS...
  • Page 8 SAT (Satellite Receiver) Mode IGHT RROW UTTONS • When using a menu, press these buttons to move the highlight to an option. • When watching a program, press the Right button to open the Browse Banner or the Up or Down button to change channels. •...
  • Page 9 SAT (Satellite Receiver) Mode NFORMATION UTTON • Press this button for more information when the Program Guide or the Browse Banner is open, or when watching a program. • When a menu is open that includes a Help option, press this button to see help information for that menu.

  • Page 10: Tv (Television) Mode

    TV (Television) Mode UMBER UTTONS • When watching a program or with the Program Guide open, use these buttons to enter a channel number to change to that channel. • When the Program Guide is open, enter a number of hours using these buttons, and then press the Right or Left arrow button to skip the display backward or forward by that number of hours.
  • Page 11 TV (Television) Mode TV M UTTON To use the remote to operate a television, you must first set up the remote to control the television. See Controlling a Device on page 15. Then, you must press the TV mode button to set the remote to TV mode.

  • Page 12: Vcr (Videocassette Recorder) Mode

    VCR (VideoCassette Recorder) Mode RROW UTTONS Use the Up/Down arrow buttons to change channels on the TV. ECALL UTTON Press this button to return to the last channel you were watching. Press it again to switch between the last two channels that you watched.
  • Page 13 VCR (VideoCassette Recorder) Mode You must set the remote control to VCR mode to set it up to control a DVD player. You must set the remote control to VCR mode to use it to control a DVD player. UTTON Press this button to turn off the sound.

  • Page 14: Aux (Auxiliary) Mode For Cable Tv Box

    AUX (Auxiliary) Mode for Cable TV Box UMBER UTTONS Use these buttons to enter numbers in a menu. AUX (A TV B UXILIARY ODE FOR ABLE Some of the features described below may not apply to the cable TV box. See your cable box owner’s manual for details about the box’s features.

  • Page 15: Aux (Auxiliary) Mode For Tuner Or Amplifier

    AUX (Auxiliary) Mode for Tuner or Amplifier ELECT UTTON The Select button works as the Enter button for the cable box. RROW UTTONS Use the Up/Down arrow buttons to change channels on the cable box. ECALL UTTON Press this button to return to the last channel you were watching. Press it again to switch between the last two channels that you watched.
  • Page 16 AUX (Auxiliary) Mode for Tuner or Amplifier AUX M UTTON To use the remote to operate a tuner or amplifier, you must first set up the remote to control the device. See Controlling a Device on page 15. Then, you must press the AUX mode button to set the remote to AUX mode.

  • Page 17: Remote Control Procedures

    Controlling a Device EMOTE ONTROL ROCEDURES ONTROLLING A EVICE This section explains how to set up the remote to control a device, such as a satellite TV receiver, a TV, a VCR, a cable TV box, a tuner, or an amplifier. Note: The remote already is set up to control the receiver.

  • Page 18: Changing The Remote Control Address

    Changing the Remote Control Address 8. If the code you entered does not work, repeat steps 3 through 7 using another code from the tables. 9. If you have tried all of the codes listed for the device without success, or if you cannot find the device brand name in the tables, see Device Code Scan on pag e20.

  • Page 19: Installing An Attenuator

    Installing an Attenuator 4. Press the Pound (#) button. If the address you entered is valid for the remote control, the SAT mode button backlight flashes three times. 5. Press the Record button. The Remote Address on the Important System Information menu should match the one that you entered.

  • Page 20: Controlling Sound Volume

    5. Select the TV remote volume control or the DISH remote volume control option. 6. Select the Save option. 7. If you are setting up the remote control for the first time, see Controlling a Device on pag e15.

  • Page 21: Tv Or Amplifier Volume Control

    Controlling Sound Volume MPLIFIER OLUME ONTROL If you set up the remote to control a television, the Mute and Volume buttons - in any mode - control the TV volume. This applies whether or not the receiver has its own volume control. This does not apply if you use the AUX mode to control a device that has a volume setting.

  • Page 22: Doing The Device Code Scan

    Doing the Device Code Scan OING THE EVICE If a device is not listed in the tables or if the listed codes do not work, you can scan through all the codes, testing each one. Remember that the remote may not control some devices. 1.

  • Page 23: Finding The Device Codes

    Finding the Device Codes INDING THE EVICE ODES You can find out what device code is set for each remote control mode. Do the following: 1. Press and hold the mode button for the device, for about three seconds. When all the other mode button backlights come on, release the mode For example button.

  • Page 24: Device Codes

    EVICE ODES Use these codes to set up the remote to control other devices. If a device is not listed or the codes do not work, the remote may not be able to control the device. Note: The end of the VCR table provides codes for DVD players. Only for a receiver that has its own volume control, use code 222 with the remote in SAT, TV, or VCR mode to set up the remote to control the receiver sound volume.

  • Page 25: Vcrs

    Mitsubishi 504, 505, 570, 571, 572, Signature 597, 623, 695, 705, 707, Silver Solavox Montgomery 505, 506, 515, 518, 534, Wards 536, 543, 564, 565, 567, Sony 500, 514, 521, 578, 609, 568, 607, 619, 712, 714, 619, 622, 685, 686, 687, 688, 690 505, 506, 516, 523, 531, Soundesign...
  • Page 26 Canon 542, 553, 554 Olympic Capehart 543, 546 Optonica Citizen 591, 592, 593 Orion 506, 507 Craig 591, 608 Panasonic 521, 522, 523, 524, 526, 553, 554, 598, 614, 628 Croslex Pentax 537, 592 Curtis Mathes 554, 592, 605 Perdio Daewoo 534, 545, 546, 547, 593 Philco...

  • Page 27: Dvd Players

    TV B ABLE OXES DVD Players Note: You must set the remote control to VCR mode to set it up to control a DVD Eastern 2649 player. You must set the remote control GI/Tocom 2640 to VCR mode to use it to control a DVD player. Jerrold 2635, 2636 Magnavox...

  • Page 28: Trouble-Shooting Table

    ROUBLE HOOTING ABLE What Is Possible Reason What to Do Happening Use the receiver front panel Control You cannot You may have Buttons to control the receiver until you find the remote misplaced the remote control. control, or someone find the remote. If the remote control is else may have it.
  • Page 29 When you You may be trying to Remember that the remote control uses press a button control a device other IR signals to control devices other than on the remote than the receiver, the receiver. IR signals travel only control, the without pointing the 40 feet or less, and cannot go through device does...

  • Page 30: Limited Warranty

    IMITED ARRANTY This warranty extends only to the original user of the DISH Network Remote Control (“you,” “your”) and is limited to the purchase price of the remote control. EchoStar Communications Corporation and its affiliated companies (“we,” “our,” “us”) warrant this remote control against defects in materials or workmanship as follows.
  • Page 31 If you return the defective equipment after the ten days, you will receive a full refund less an administrative fee. If damage to the defective equipment is found which DISH Network Service in its sole discretion determines is not covered by the warranty, we will charge your credit card our standard flat rate exchange fee.

  • Page 32: If You Need Help

    1. Review this Guide. 2. See the Trouble-Shooting Table on pag e26. 3. Call the DISH Network Service Center at 1-800-333-DISH (3474). Have the date of purchase and your customer account number ready. 4. A Representative will assist you. He or she will try to troubleshoot any problem you may be having.
  • Page 33 Notes 104333...
  • Page 34 Notes 104333...
  • Page 35 Correspondence regarding this publication should be addressed directly to: EchoStar Technologies Corporation, Technical Publications, 90 Inverness Circle East, Englewood, Colorado 80112 Catalog Number: 104333 Printed in United States DISH Network and the DISH Network logo are trademarks of EchoStar Technologies Corporation.
  • Page 36 FOR ALL YOUR CUSTOMER NEEDS, CALL DISH Network CUSTOMER SERVICE at 1-800-333-DISH (3474). 104333...
