12.1-inch led backlit lcd roof-mount dvd player with dvd/cd/mp3 system
Hide thumbs Also See for AVXMTG12U:

Advertisement

12.1
-Inch LED Backlit LCD Roof-Mount
3
DVD Player With DVD/CD/MP
SYSTEM
12U
aVxMTG
OPERaTION
MaNUaL

Advertisement

Table of Contents
loading

Summary of Contents for Audiovox AVXMTG12U

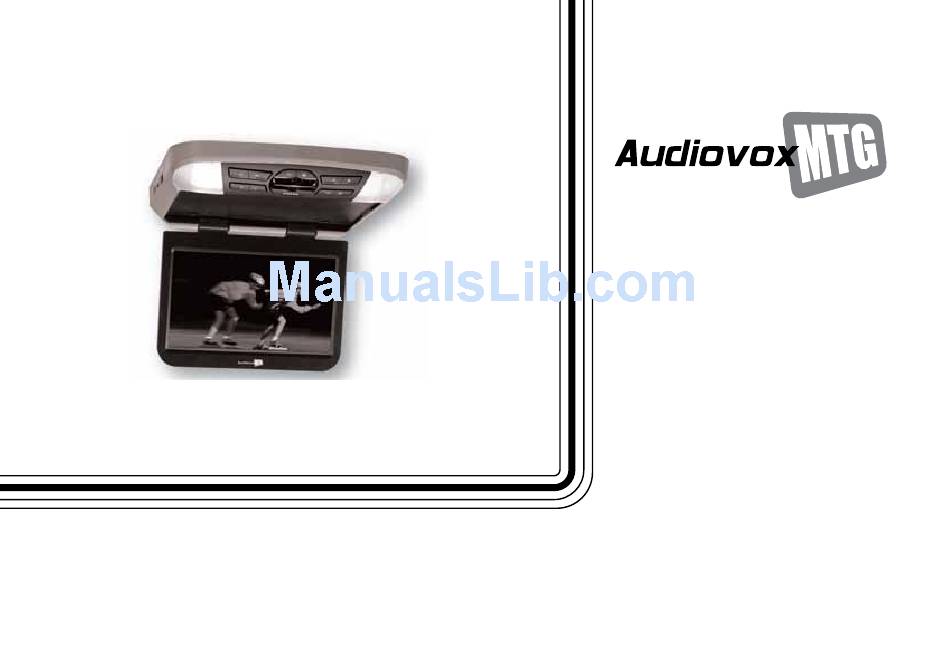

  • Page 1 12.1 -Inch LED Backlit LCD Roof-Mount DVD Player With DVD/CD/MP SYSTEM aVxMTG OPERaTION MaNUaL...
  • Page 3: Table Of Contents

    TaBLE OF CONTENTS Important Notices ����������������������������������������������������������������������������������������������������������������������������������������� 2 Congratulations ���������������������������������������������������������������������������������������������������������������������������������������������� 3 Features ��������������������������������������������������������������������������������������������������������������������������������������������������������������� 3 Controls and Indicators Diagram ��������������������������������������������������������������������������������������������������������� 4 Remote Control Operation ���������������������������������������������������������������������������������������������������������������������� 7 DVD Basics �������������������������������������������������������������������������������������������������������������������������������������������������������11 Loading and Playing Discs ���������������������������������������������������������������������������������������������������������������������13 Settings and Adjustments����������������������������������������������������������������������������������������������������������������������13 Playing JPG Files �������������������������������������������������������������������������������������������������������������������������������������������17 Playing MP3 Files �����������������������������������������������������������������������������������������������������������������������������������������18 FM Modulator ������������������������������������������������������������������������������������������������������������������������������������������������18 Source Features ��������������������������������������������������������������������������������������������������������������������������������������������19 Troubleshooting �������������������������������������������������������������������������������������������������������������������������������������������21...
  • Page 4: Safety Precautions

    System adjustments can be accomplished using the remote control, while seat-belts remain fastened� Enjoy your AUDIOVOX entertainment system but remember that the safety of all passengers remains the number one priority�...
  • Page 5: Congratulations

    CONGRaTULaTIONS Congratulations on your purchase of the AUDIOUVOX AVXMTG12U DVD player with Drop-Down Video/Monitor� The AVXMTG12U player has been designed to give you and your family many years of video entertainment in the mobile environment� Please read the directions that follow in order to familiarize yourself with the product to ensure that you obtain the best results from your equipment�...
  • Page 6 M1 mode� Conversely a unit set to M1 mode will not work with a remote control programmed to the M2 mode� To change from M1 to M2 mode, point the remote control towards the IR receiver on the AVXMTG12U� Press and hold the M2 button for 5 to 7 seconds� The following screen will be displayed: Note: The OSD will appear on the screen for 4 –...
  • Page 7: Controls And Indicators Diagram

    CONTROLS aND INDICaTORS DIaGRaM Front View 1� Dome Lights - Provides additional interior illumination� 2� SOURCE (S) Button - Press to select the source menu (AV/DVD/USB/CARD)� 3� VOLUME ( + ) Button - Press this button to increase the volume or increase 2 3 4 5 6 7 8 9 10 11 12 1 the level of selected picture controls�...
  • Page 8 Side Views 1� DVD Disc insertion Slot - For loading and removing disks� Turn the unit on before loading a disc� Make sure the unit is set to the DVD source prior to inserting a disc� Insert a disc with the label facing up towards the headliner� The player will load a disc when a disc is inserted�...
  • Page 9: Remote Control Operation

    REMOTE CONTROL OPERaTION Battery Installation Before attempting to operate your remote control, remove the protective pull tab at the bottom of the remote� Battery Door Protective Pull Tab Battery Replacement Clear Plastic 1� Slide the battery holder (2) out in the direction of the arrow� 2�...
  • Page 10 Remote Control Functional Description 1� POWER ( ) Button - Press this button to turn the unit ON and OFF� 2� NUMBER Buttons - Press to enter the numbers 0 to 9 for selection of CD tracks, DVD chapters or password setting� 3�...
  • Page 11 Remote Control Functional Description 11� MUTE Button - Press this button to mute the audio� 12� DAY/NIGHT Button- This control toggles the unit between “ DAY” and “NIGHT” LCD illumination modes� In the “DAY” mode, the LCD backlight intensity is at maximum� In the “NIGHT” mode, the LCD backlight is dimmed to a preset level that is more suitable for low light operation�...
  • Page 12 Remote Control Functional Description 21� STOP ( n ) Button - Press this button to stop playback� 22� SOURCE Button - Press to select the source menu (AV/DVD/USB CARD)� 23� SCAN FORWARD/RIGHT CURSOR ( ) Button - Scan forward at 2, 4, 8, 16, and 32 times speed�...
  • Page 13: Dvd Basics

    DVD BaSICS To get the optimum use out of the DVD player, please read this section� DVD Region Code The DVD player is preset to a region code at the factory depending on where the unit is sold� DVDs are also coded by region� These region codes must match in order for the disc to play�...
  • Page 14 Types of Discs Your System Will Play Your system will play the following types of discs: • DVD disc - DVD discs that contain video� • Audio discs - Audio CDs that contain musical or sound content only� • MP3 discs - A disc that contains audio files (for example, a CD-R with downloaded MP3 files)� This unit is capable of playing most recordable DVD formats�...
  • Page 15: Main Menu

    LOaDING aND PLaYING DISCS 1� Press the Screen Release (PRESS) button to unlock the LCD screen� The LCD screen will drop down slightly� 2� Pivot the screen downward until a conformable viewing angle is reached� The hinge friction will hold the screen in position while the unit is in use� 3�...
  • Page 16 General Setup Page Menu TV Display This item allows you to set the screen display format� Optional Settings: Normal/PS, Normal/LB, Wide The default setting is Wide� Note: This function depends on the aspect ratio with which the DVD disc is recorded� angle Mark This item allows you to turn angle mode playback on or off�...
  • Page 17 General Setup Page Menu (continued) Screen Saver This item allows you to turn the screen saver on or off� Optional Settings: On, Off The default setting is On� Note: The DVD player will enter screen saver mode if the unit is inactive for approximately four minutes� Password Setup Page Menu Password This item allows you to set a four number password�...
  • Page 18 Preference Page Menu audio This item allows you to select an audio language for DVD playback� The audio language depends on the information available on each disc� Optional Settings: English, Spanish, French, Italian� The default setting is English� Note: You can also change the audio language during playback by pressing the Audio button� Subtitle This item allows you to select a subtitle language to be shown on the screen�...
  • Page 19: Playing Jpg Files

    Preference Page Menu (continued) Default This item allows you to reset all settings to the original factory settings� Select this item and press the “OK” button� Note: This function does not reset the Parental level to the original factory setting� PLaYING jPG FILES 1�...
  • Page 20: Playing Mp3 Files

    PLaYING MP3 FILES MP3 is a format for storing digital audio� An audio CD-quality song can be compressed into the MP3 format with very little loss of quality, while taking up much less space� CD-R discs that have been encoded in MP3 format can be played on a DVD player� The DVD player plays the songs in the order they were burned on to the disc�...
  • Page 21: Source Features

    SOURCE FEaTURES 1� Press the “SOURCE” button on the unit or remote control� The following menu will appear on the screen: CARD 2� Press the “ ” or “ ” cursor button to choose an item� 3� Press the “OK” button� If a disc is loaded into the unit when the source is set to CARD or USB, the unit will automatically switch the source over to DVD�...
  • Page 22 Overhead Dome Lights The Dome Lights integrated into the unit are controlled by a three position slide switch� Sliding the switch to the ON position will turn the light ON� The OFF position will prevent the lights from turning ON with the vehicle interior lighting� The AUTO position will allow the lights to turn ON and OFF with the vehicle interior lighting�...
  • Page 23: Troubleshooting

    TROUBLESHOOTING Problem Solution IR remote is inoperative� 1� Verify that the batteries in the remote are fresh� 2� Verify that the infrared remote sensor is not obstructed� 3� Verify remote control mode (See page 4)� Disc will not play or wrong region is 1�...
  • Page 24 Problem Solution Picture is distorted� 1� The disc might be damaged, try another disc� 2� It is normal for some distortion to appear during forward or reverse scan�...
  • Page 25: Specifications

    SPECIFICaTIONS Type: TFT Active Matrix LCD Screen Resolution: 1366 x 768 pixels (RGB) Operation Temperature: 32 to 122 °F (0 to 50 °C) Storage Temperature: -4 to 140 °F(-20 to 70 °C) Backlight: Power Source: 12 VDC Video Display System: NTSC/PAL Headphone Audio Output: 5mw @ 32 ohms...
  • Page 26: Notes

    NOTES...
  • Page 27 Applies to Movies To Go Mobile Video Products AUDIOVOX ELECTRONICS CORP� (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor�...
  • Page 28 © 2011 aUDIOVOx,150 Marcus Blvd. Hauppauge, NY 11788 128-8990...
