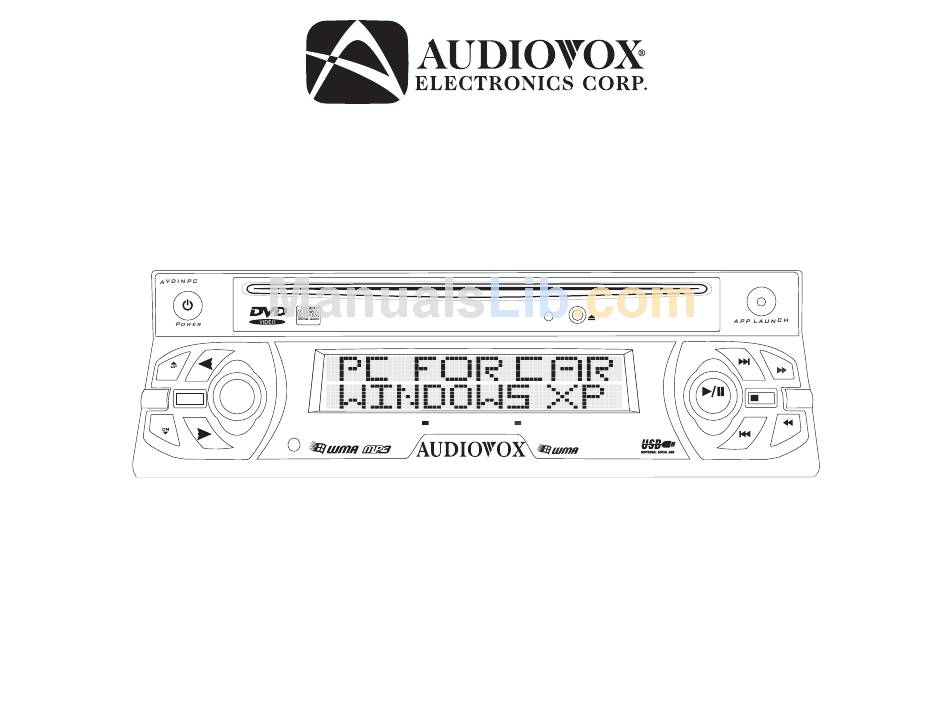

- Page 1 AVDINPC Installation and Operation Manual NEXT MUTE STOP PLAY DVD/CD/MP3/WMA PLAYER PREV 40G HD Audiovox Electronics Corporation 150 Marcus Boulevard Hauppauge, NY 11788 Technical Assistance: 1-800-645-4994 www.Audiovox.com © 2005 Audiovox v.050205 Printed in Korea...
- Page 2 INTRODUCTION Features • 40 GB Hard Drive • 512 MB DDR RAM • • • • • • • • • • • • AVDINPC...
-
Page 3: Installation Requirements
8:30 a.m. to 7:00 p.m. EST Monday through Friday and from 9:00 a.m. to 5:00 p.m. EST on Saturday. (U.S.A. and Canada only.) NOTE: If the AVDINPC is to be installed in a car equipped with an on- board drive or navigation computer, do not disconnect the battery cable. -
Page 4: Installation
5. Mount the new computer assembly to the dashboard or center console using the reverse procedure in step 1. CAUTION: For proper operation of the DVD player, the chassis must be mounted within 20° of horizontal. Make sure the unit is mounted within this limitation. AVDINPC... -
Page 5: Wiring Connections
AVDINPC WIRING Wiring Connections 1. PS/2 Mouse 2. PS/2 Keyboard 3. VGA 4. LAN (RJ-45) 5. USB 1/USB 2 6. S-Video 7. RCA Video 8. Printer 9. COM Port 10. MIC In 11. Line Out 12. Line In 13. AC Adapter (Purchased Separately) – Only use an AC adapter with the following specifications: Output –... -
Page 6: Replacing The Fuse
Replacing the Fuse When replacing a fuse, be sure to use the correct type and amperage to avoid damaging the computer. The AVDINPC uses one 5 amp ATO fuse. Reconnecting the Battery When wiring is complete, reconnect the battery negative terminal. -
Page 7: Front Panel Operation
AVDINPC FRONT PANEL OPERATION MUTE DVD/CD/MP3/WMA PLAYER Figure 4: Front Panel Operation 1. POWER: Press to power the unit on/off. 2. SEL: Press to “Enter”. 3. VOL +: Raise the volume level. 4. VOL -: Lower the volume level. 5. MUTE: Silence the system volume. -
Page 8: Remote Control Operation
This timer feature can automatically turn off the PC or activate an alarm assigned through the timer setup. Numeric Buttons AVDINPC Multi-Median The numeric buttons (0 - 9) function as shortcuts to the Multi-Median application printed below each button. These... - Page 9 AVDINPC Table 1: Remote Control Functions Icon Name Basic Functions Desktop Press this button to toggle between “show desktop” and “restore all”. This button has the same function as the keyboard shortcut [Windows]+[D]. Max/Res Press this button to toggle between “maximize” and “restore”...
- Page 10 Enter button to move to the next step. MUTE Press this button to mute the PC system volume. VOL - Press this button to reduce the PC system volume. AVDINPC...
- Page 11 AVDINPC Table 1: Remote Control Functions Icon Name Basic Functions VOL + Press this button to increase the PC system volume. Play Press this button to execute the “Play” command in various media applications. Pause Press this button to execute the “Pause”...
- Page 12 Selecting a root folder, like “My Computer”, will greatly increase scanning time. Media Folder View If you select “My Music”, “My Movies” or “My Photos”, the media folder view will appear. AVDINPC...
- Page 13 AVDINPC Figure 7: Media Folder View The icons in Table 2 indicate the status of the media folder. Table 2: Media Folder Icons The number in the top right corner of the folder indicates the number of media files in the folder. The check mark on the left indicates whether or not the files in that folder are added to the current play list.
-
Page 14: Changing Program Settings
(Play All, Repeat All, Repeat Folder and Repeat Song) for your music playlist, turn on/off the shuffle option, and set the folder view to group by “Album”, “Artist”, or “Genre” based on the tag information of MP3 and OGG files. AVDINPC... -
Page 15: Video Codecs
AVDINPC Movie Use the Movie menu option to change the background image of the Movie view or to modify the brightness, contrast, saturation and hue. You can also change the aspect ratio, size, position, sync, font, color, bold, outline and shadow properties of the subtitle, remove previous bookmark positions, and change the repeat and shuffle settings. -
Page 16: Application Launcher
All-time Control. In Figure 12, the Winamp icon appears inside the remote button. Winamp will start automatically, if it was not running before. • OFF: Select “OFF to disable All-time Control mode. • SELECT: Choose “SELECT” to select the application you want to control. AVDINPC... -
Page 17: Virtual Keyboard
AVDINPC Monitor Resolution Changer iMON Monitor Resolution Changer allows you to change your monitor resolution using the remote control. NOTE: You need to assign the “All-time Control” function to a button on the remote (see “Program Command Setting” on page 18). The executable program file is located here: C:\Program Files\SOUNDGRAPH\iMON\iMON MRC.exe... - Page 18 4. To select an application from this window, click the name of the application, then click the OK button. If there are no applications running, the “Open” window will appear, allowing you to browse and locate the executable file for the program you want to register. AVDINPC...
-
Page 19: Setting Options
AVDINPC 5. When the “Setup iMON” window appears, click Yes to register the program in the launcher. Assign Functions to the Remote Control You can customize many of the remote control buttons to perform different functions in each registered program. The Remote Manager compares the assigned functions to the command list for each registered application, allowing you to assign a different set of functions for each program. - Page 20 Timer - Change the sound and duration of the alarm. • Monitor Resolution - Select the resolutions that will displayed in the “iMON Monitor Resolution Changer” window. • Virtual Keyboard - Assign custom characters to the Web character set of the Remote Virtual Keyboard. AVDINPC...
-
Page 21: Control Center
AVDINPC L.I.S. 2 CONTROL CENTER All functions of L.I.S can be managed easily from the Control Center. By default, the L.I.S. Control Center will run automatically when the computer is turned on. Because the program has so many features, please review the instructions carefully. -
Page 22: Module Setup
Communication Info: After installing L.I.S. 2, COM ports are automatically detected. However, POP accounts must be set up manually. In most cases this will not be necessary. • User Message Setup: Customize starting/ ending messages. • Skin: View the path for the current skin. AVDINPC... -
Page 23: Fan Controller)
AVDINPC Auto User Use this feature to order items according to priority, control each display interval per second, and modify the information that appears in the Control Center window. Figure 21: Auto User Window To add a new item: 1. Click the Add button. A new “untitled” item appears at the bottom of the list. - Page 24 Display Time & Date Selection: Choose from three possible display formats. Display Text: Modify the text that appears before the Date/Time and change the horizontal alignment. R.T. Clock The R.T. Clock displays the CPU's clock in real time down to the second decimal. Figure 25: RT Clock Window AVDINPC...
- Page 25 AVDINPC In this screen (Figure 25), you can adjust the Refresh time from 1-10 and customize the display text. Cpu/Ram The Cpu/Ram option shows the usage rate of the CPU and Memory (see Figure 26). Figure 26: Cpu/Ram Window When used with a MBM (Motherboard Monitor) program, this option shows the MBM's shared data (see Figure 27).
- Page 26 To activate the new plugin, select View > Visualizations > L.I.S. Control Center WMP Vis V#.## > L.I.S. Spectrum Analyzer - 2Line. If the L.I.S plug-in is installed properly, Windows Media Player displays the graphic analyzer shown in Figure 30. Figure 30: Windows Media Player L.I.S. Graphic Analyzer Plugin AVDINPC...
- Page 27 AVDINPC OS/System Use the OS/System feature to select information on the operating system and related systems. Figure 31: OS/System Window Select any relevant information by checking the boxes for desired items. To adjust the display time, use the navigation bar on the right side of the window to scroll to the bottom of the window until “Display Time Set”...
- Page 28 AVDINPC Figure 33: CG Logo File Builder Window You can design a custom logo or symbol by clicking inside the squares to create an image. The result is displayed in the “Display View Box” at the bottom of the screen (see Figure 33).
-
Page 29: Main Screen
AVDINPC PLAYNOW! Setting PlayNow! to Automatically Load During boot-up, hit the DEL key to enter the BIOS setup menu. Once in the setup menu, select the etBIOS Configuration submenu. Set [Boot from etBIOS] to [Enabled]. Now, PlayNow! will be launched every time the PC turns on or reboots. -
Page 30: Troubleshooting
AVDINPC TROUBLESHOOTING... -
Page 31: Specifications
AVDINPC SPECIFICATIONS CEA Power Ratings Power Output: 18 watts RMS X 4 channels into 4-ohms @ < 1% THD+N Signal to Noise Ratio: 70dBA below reference. (Reference: 1 watt, 4-ohms) Dynamic Power: 88 watts @ 4-ohms, all channels driven Frequency Response: 20Hz to 20kHz (-3dB), Audio/Video input used as source reference Reference Supply Voltage: 14.4VDC... -
Page 32: Month Limited Warranty
This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. U.S.A: Audiovox Corporation, 150 Marcus Blvd., Hauppauge, NY 11788, 1- 800-645-4994 CANADA: Call 1-800-645-4994 for location of warranty station serving your area.
